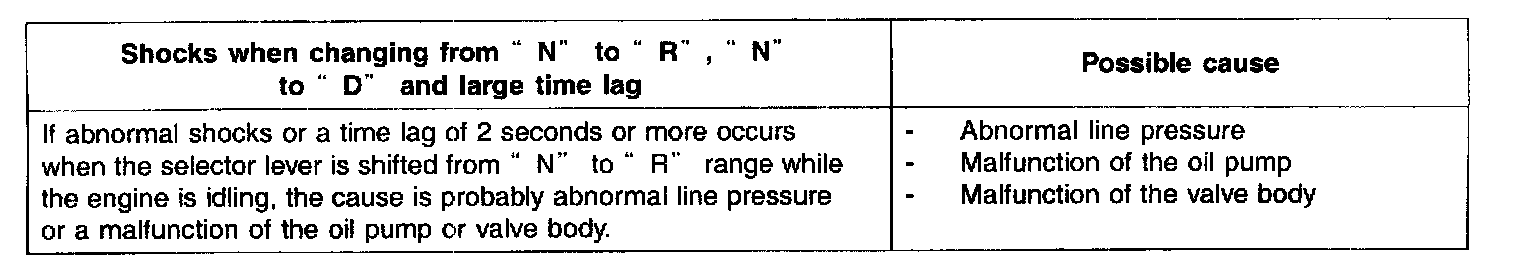

Inspection Procedure 9 - Shocks When Changing from "N" to "R", "N" to "D" and Large Time Lag
Inspection Procedure 9 - Shocks When Changing from "N" to "R", "N" to "D" and Large Time Lag

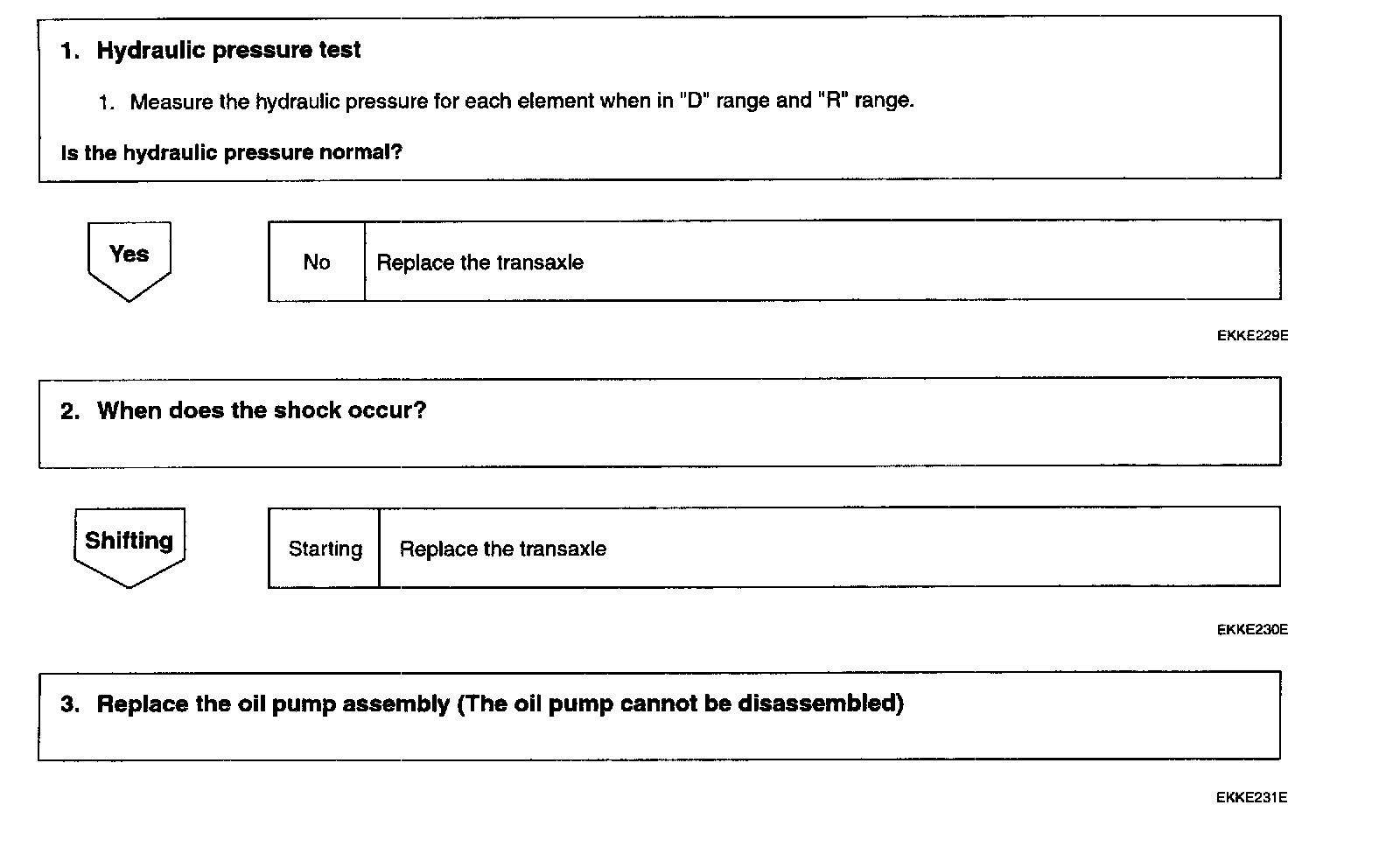

INSPECTION PROCEDURE 9
INSPECTION PROCEDURES
