Home >> Hyundai >> 2005 >> Elantra L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Symptom Chart (Troubleshooting Part 2)

Symptom Chart (Troubleshooting Part 2)

Part 1:




Part 2:




Part 3:




Part 4:

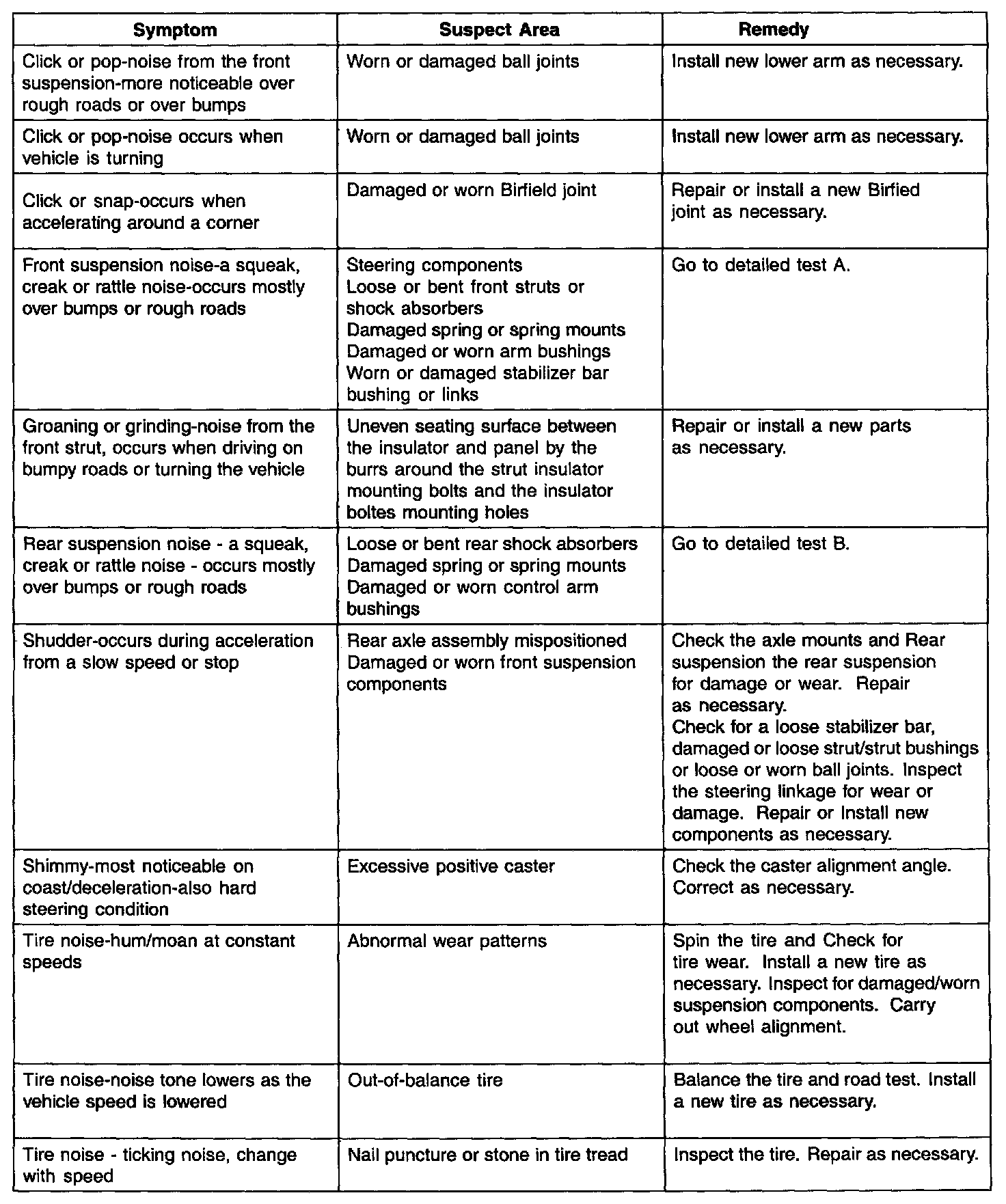

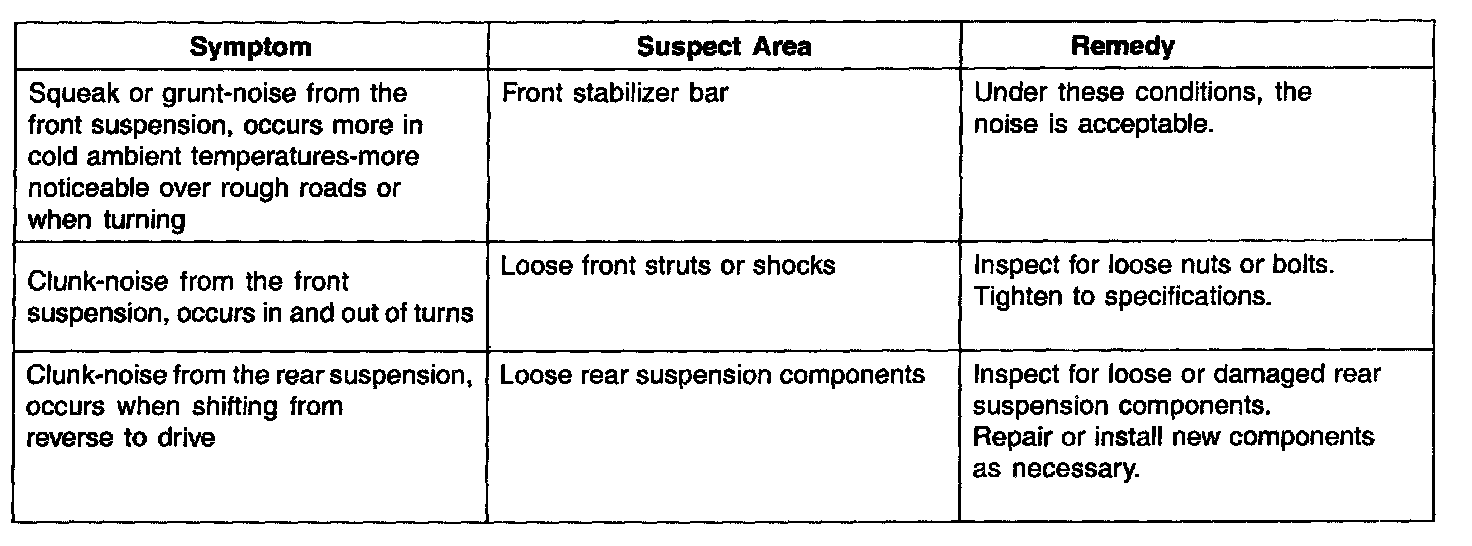

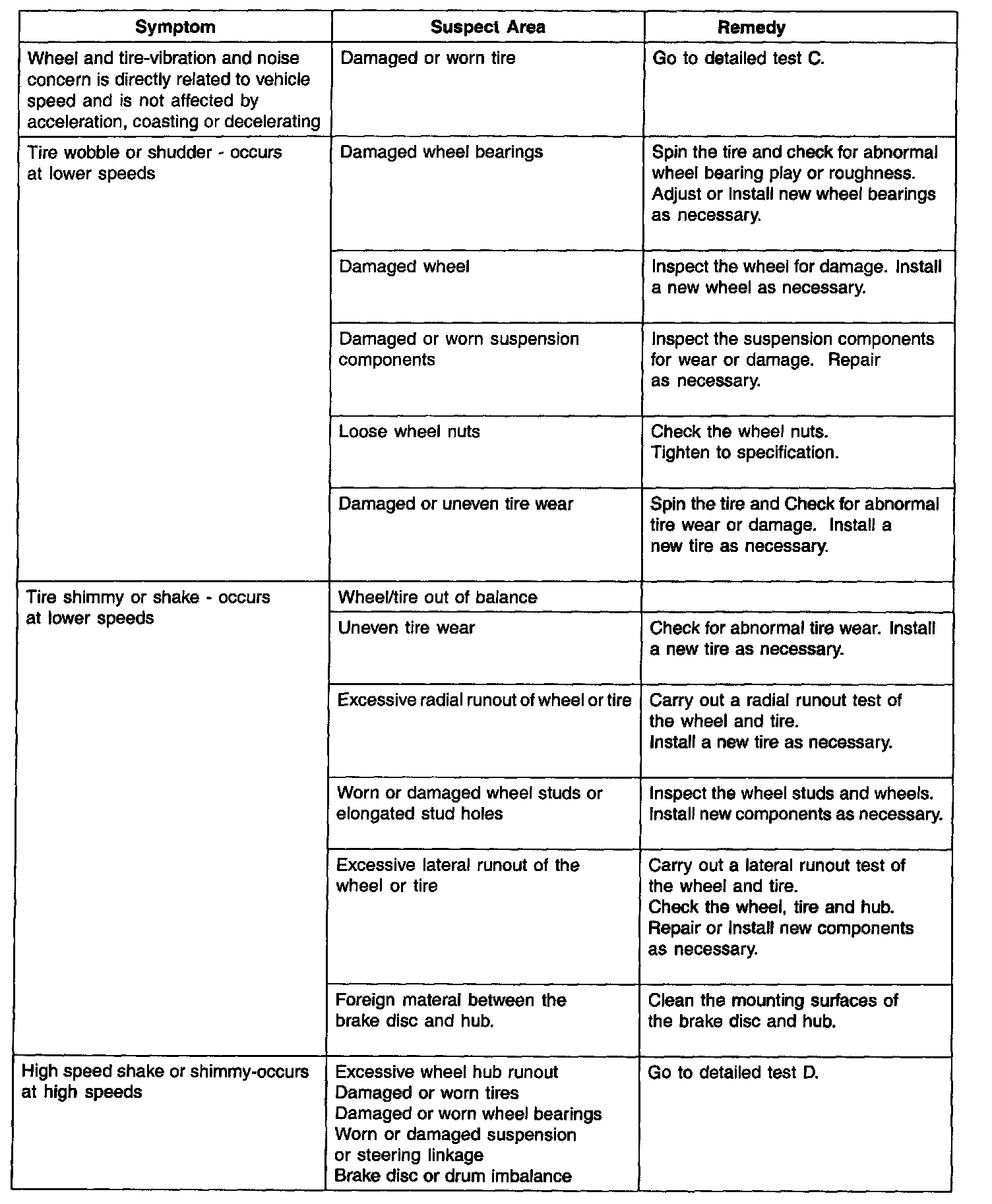

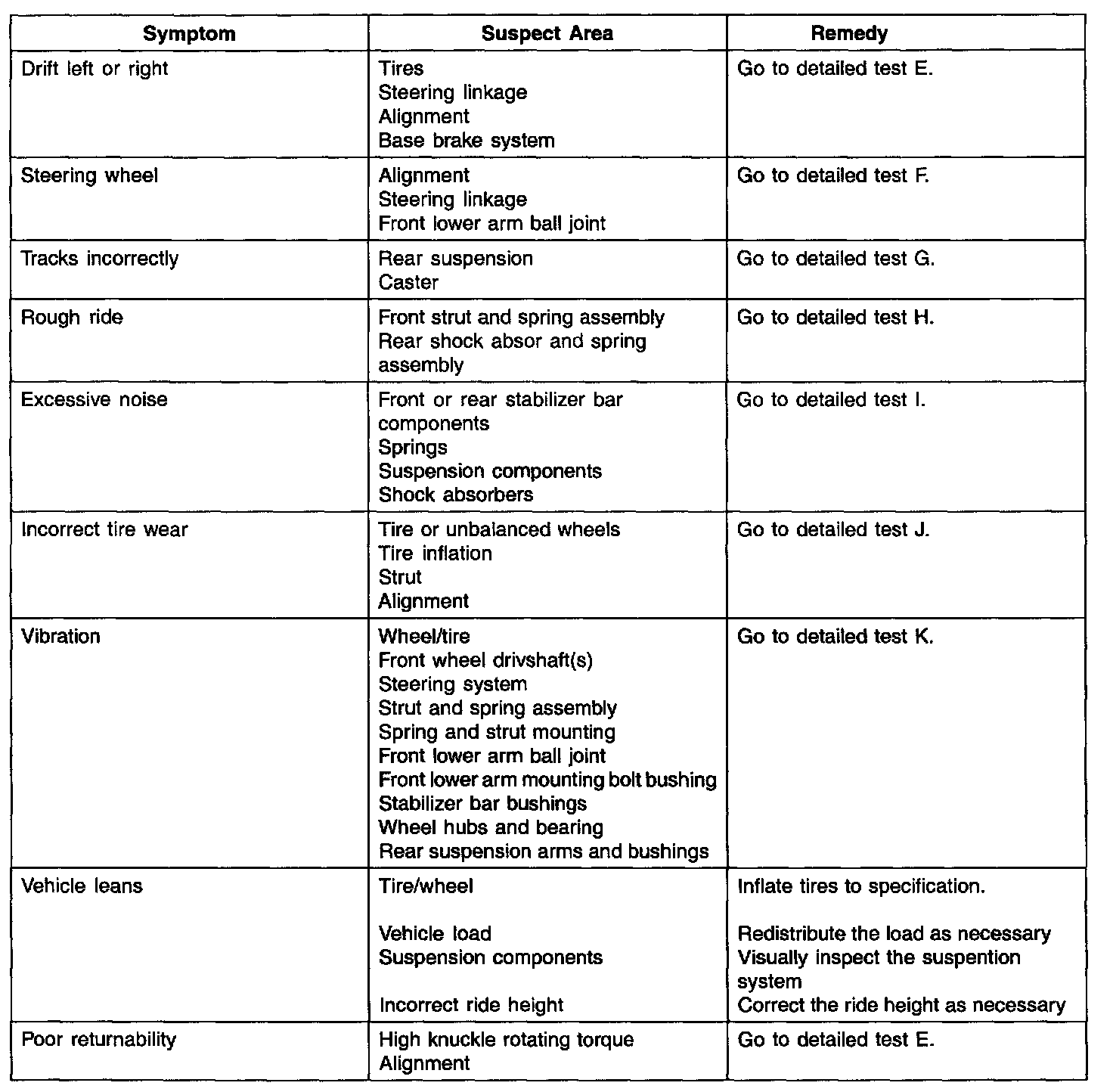

SYMPTOM CHART
