Door Lock Relay
>>
Locations
>>
Connector Locations
>>
M32
M32

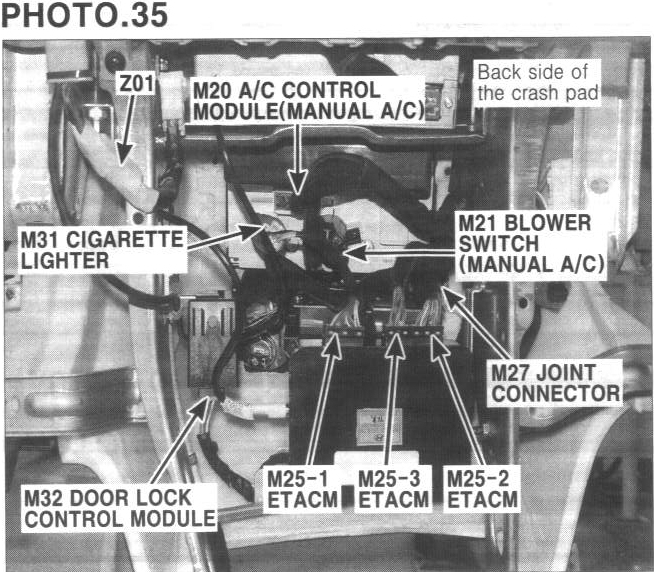

Photo 35:
The Door Lock Relay (s) are located within the Door Lock Control Module (M32) as shown on the wiring diagrams.
