Side Defroster Nozzle Removal and Installation

SIDE DEFROSTER NOZZLE REMOVAL AND INSTALLATION

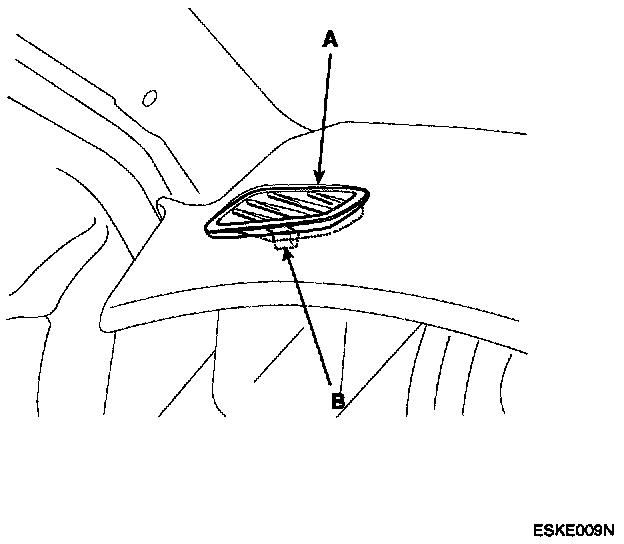

1. Wrap a flat-tip screwdriver with protective tape, and apply protective tape around the related parts to prevent damage. Carefully insert a flat-tip screwdriver next to the clip, and detach the clip by prying on the side defroster nozzle (A). Take care not to scratch the crash pad and related parts.






2. Pull the vent trim out by releasing the hooks (B).
3. Reinstall the hook portions of the vent trim first, then securely push the clips into place.
