Hood Latch: Service and Repair

HOOD LATCH REPLACEMENT

1. Remove the radiator guard (A).

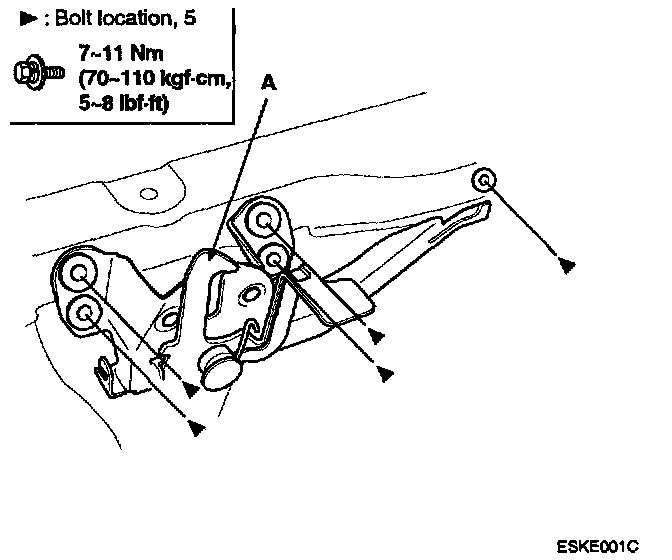

2. Remove the hood latch (A) mounting bolts.






3. Disconnect the hood latch cable (A) remove the hood latch (B).






4. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks securely.
