Speaker: Service and Repair

REMOVAL

FRONT SPEAKER
1. Remove the front door trim panel.

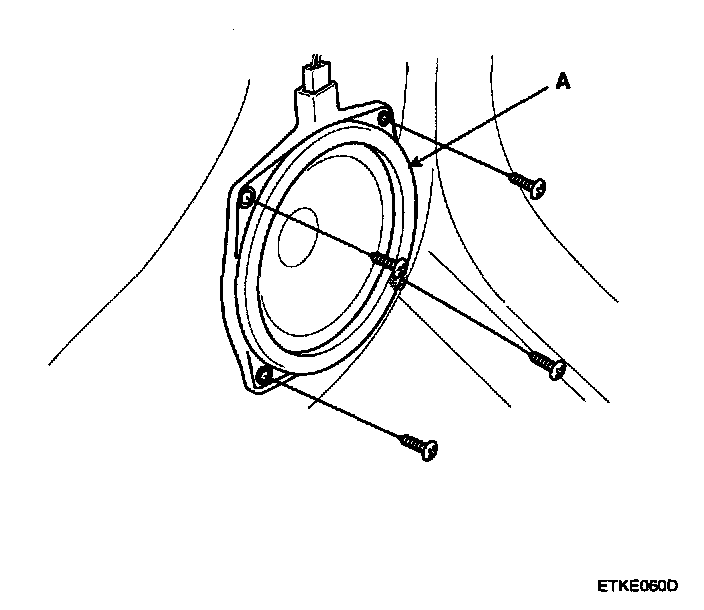

2. Remove the front speaker (A) after removing 4 screws.
3. Installation is the reverse of removal.

REAR SPEAKER
1. Remove the rear seats.

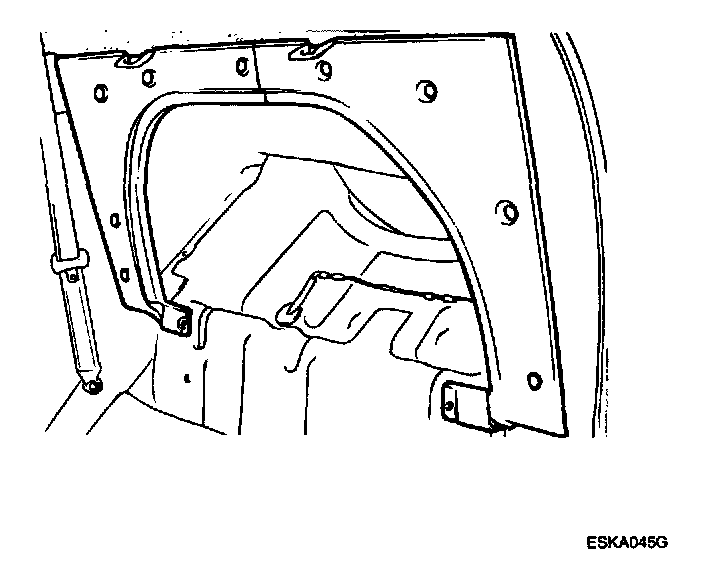

2. Remove the partition trim after removing plugs.

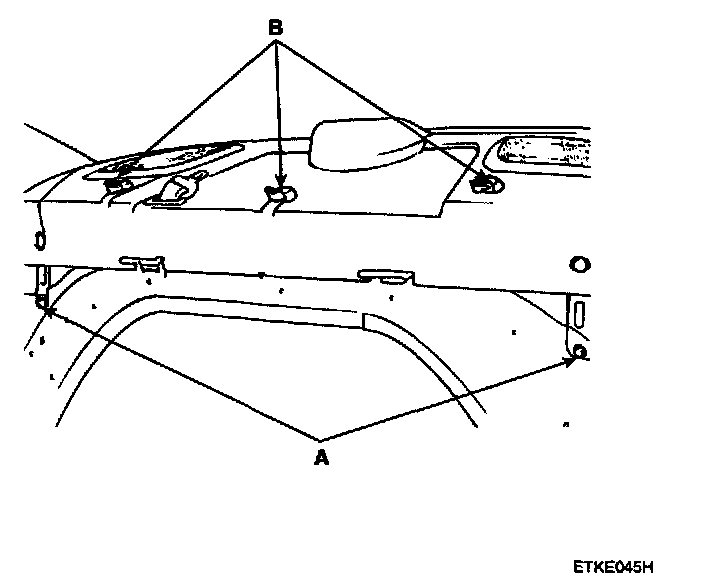

3. Remove the bolts (A) and plugs (B) from the rear package tray trim.

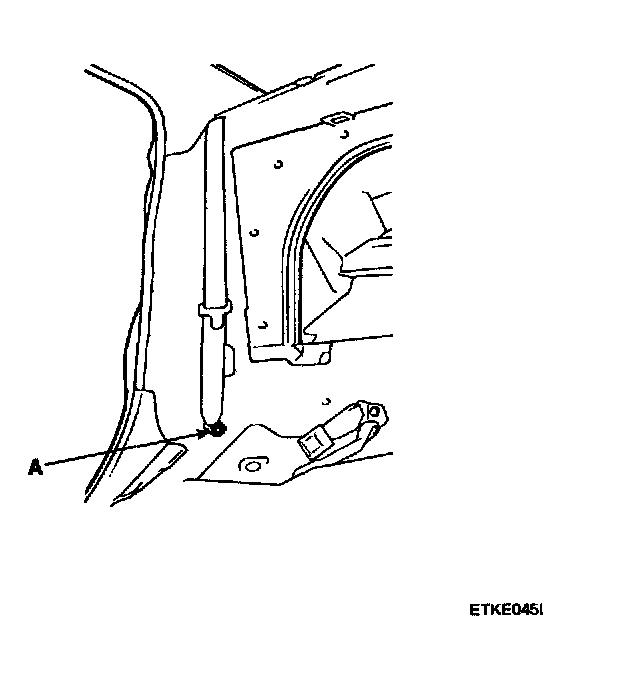

4. Remove the rear seat belt lower mounting bolt (A).

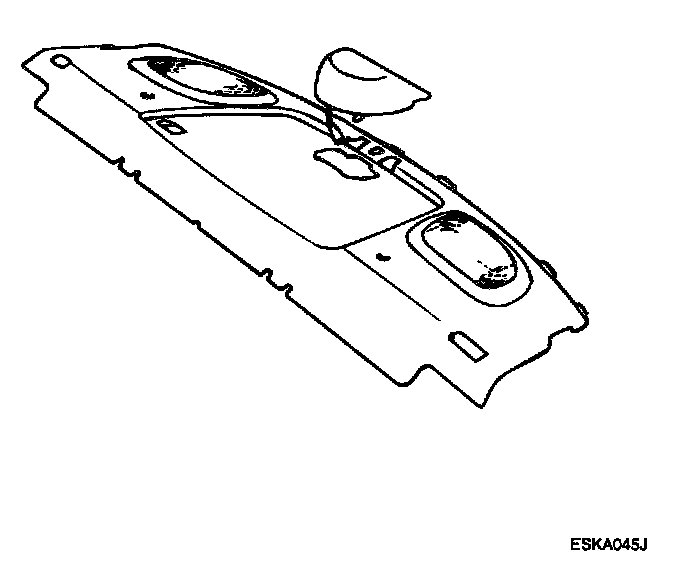

5. Remove the rear package tray trim.

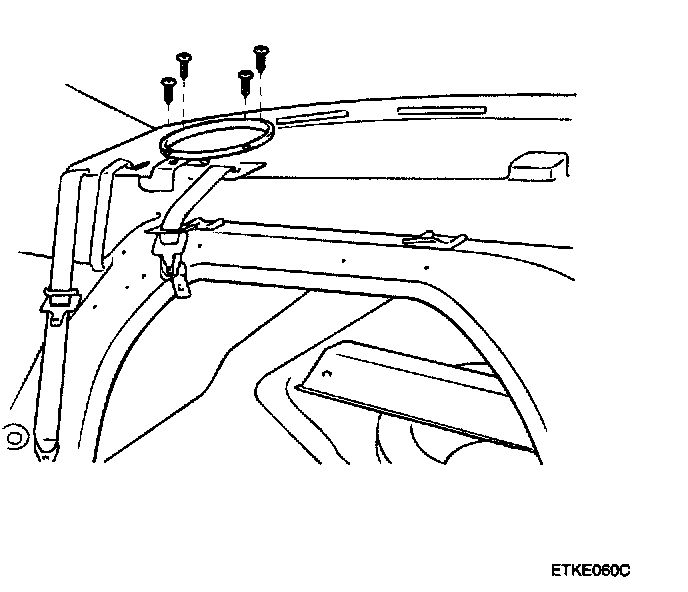

6. Remove the rear speaker after removing 4 screws.
7. Installation is the reverse of removal.

TWEETER SPEAKER

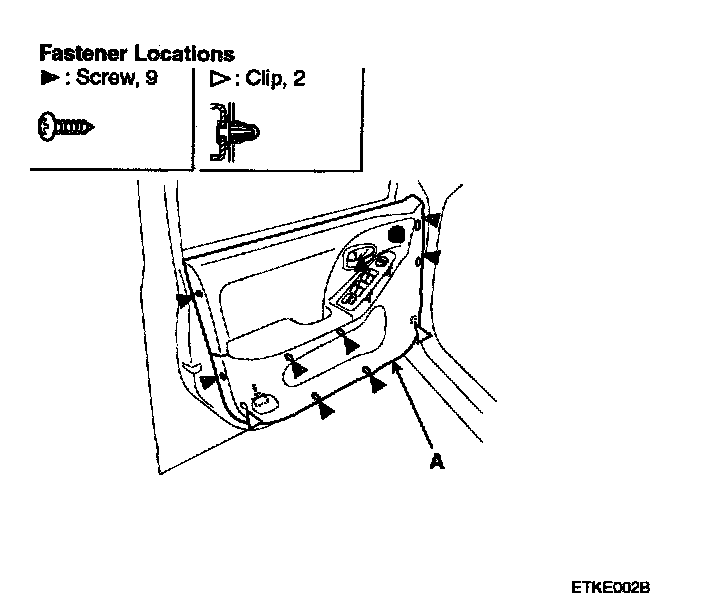

1. Remove the front door trim panel (A) after removing 9 screws.

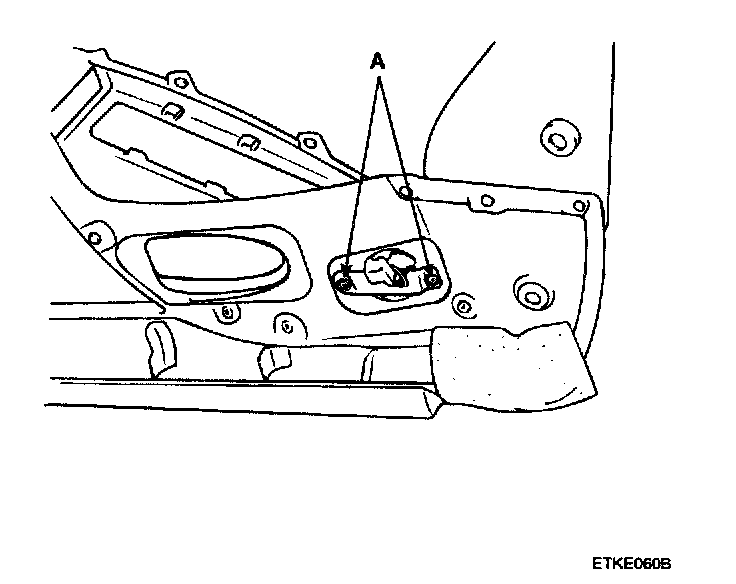

2. Remove the tweeter speaker after removing 2 screws (A).
3. Installation is the reverse of removal.
