M/T - 6 Speed M/T Shift Cable Adjustment Procedure

Group: TRANSAXLE

Number: 04-40-010

Date: JULY, 2004

Model: 2003-2004 TIBURON

Subject
SELECT CABLE ADJUSTMENT PROCEDURE
FOR 6-SPEED MANUAL TRANSAXLE

DESCRIPTION:

This bulletin describes the procedure for adjusting the select cable in 2003-2004 MY Tiburon vehicles with 6-speed manual transaxles.

PROCEDURE:





1. Access the shift lever and cable area.





2. Place the select lever in the 6th gear position.

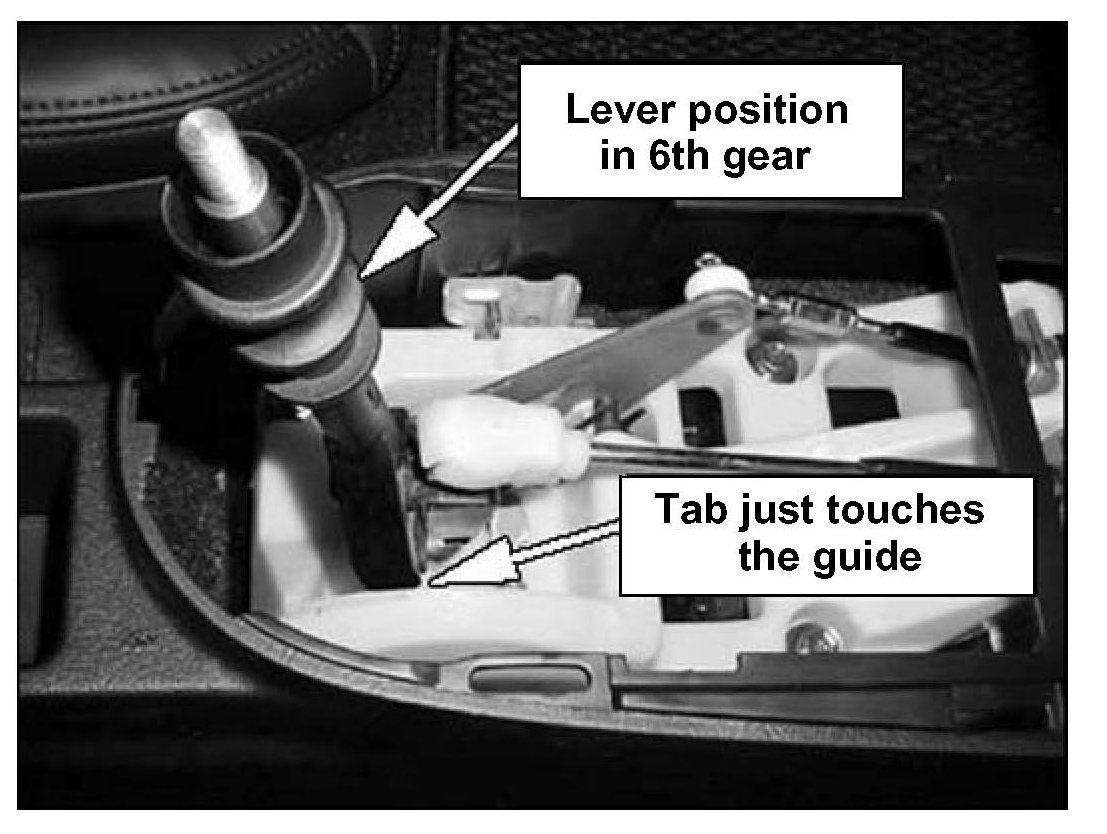

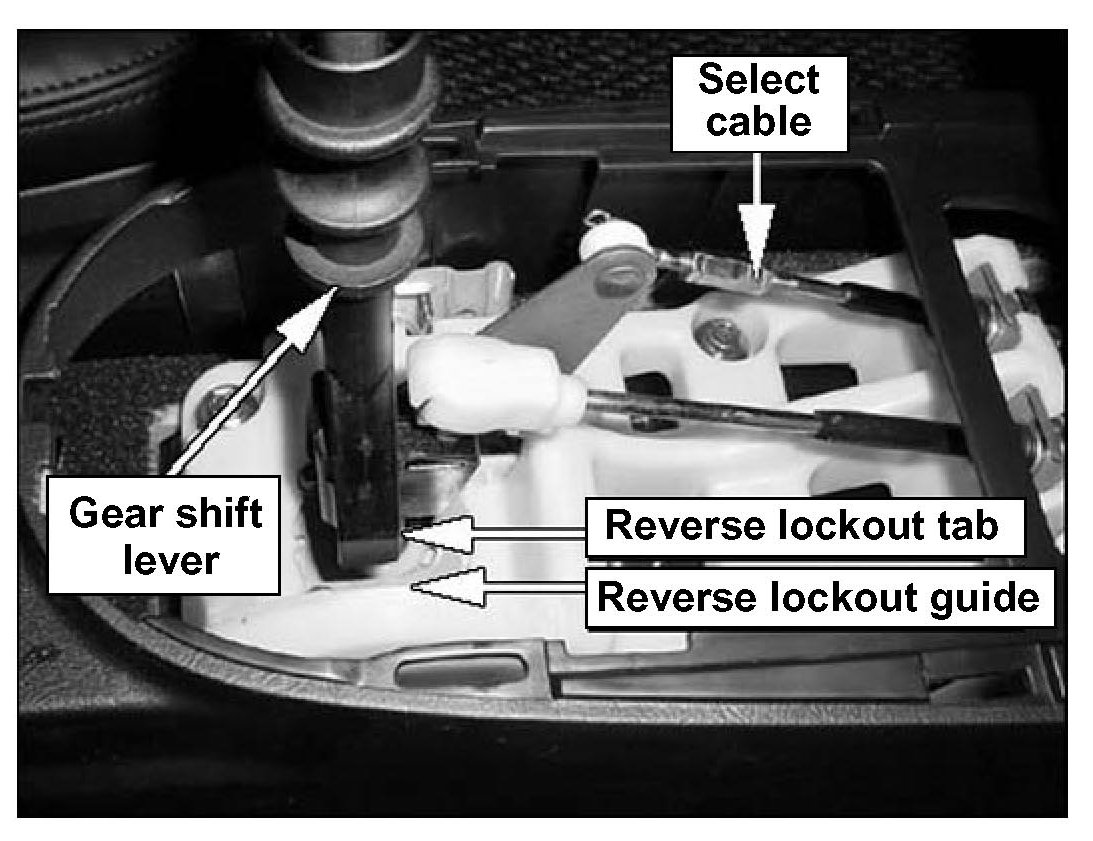

3. If the select cable is adjusted correctly, the reverse lockout tab just barely touches the reverse guide (without holding the shifter).

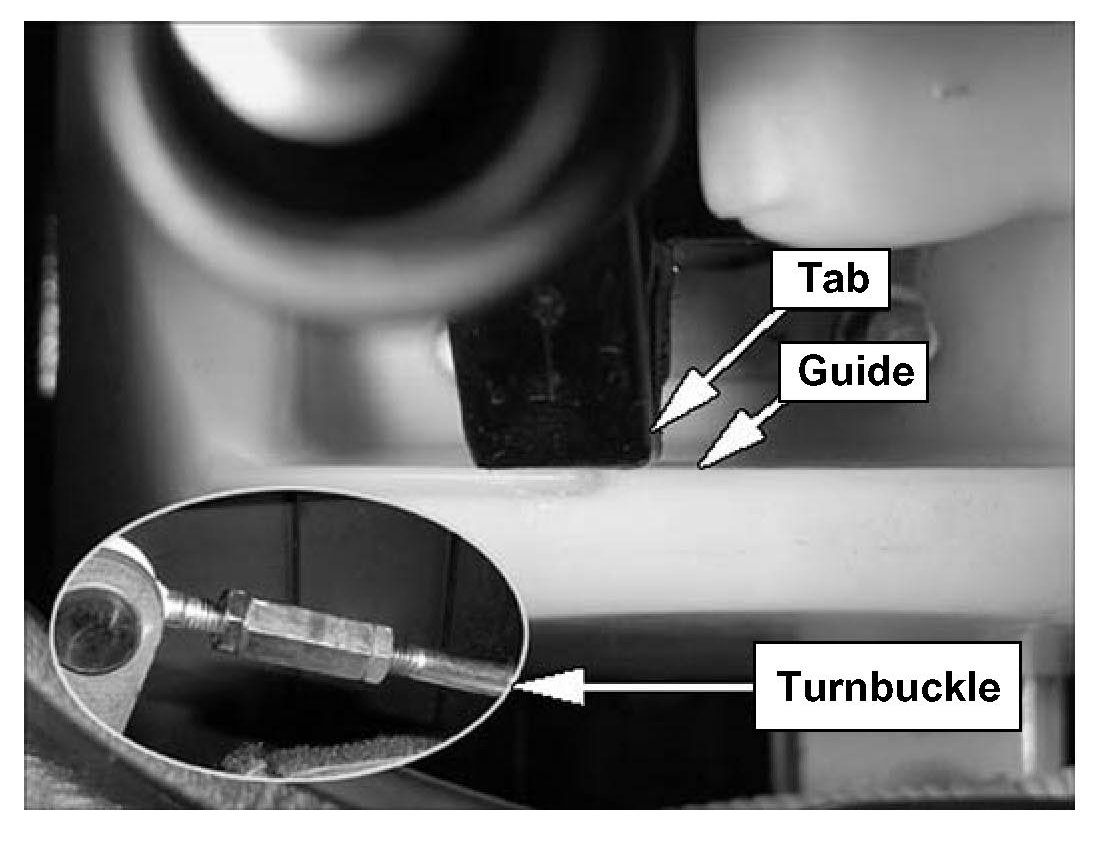

The reverse lockout tab barely touching the reverse guide means no lateral force on the tab. To confirm this, loosen the turnbuckle until the tab moves away from the guide. Then draw the tab closer to the guide with the turnbuckle until the tab just barely touches the guide.





4. If the tab is not touching the guide, adjust the select cable turn buckle until the tab just touches the guide.

5. Lock the adjustment by locking nuts on either side of the select cable turnbuckle adjuster.

6. Reinstall all removed components.

7. Road test the vehicle in all gears to confirm normal shifting.
