Shifter M/T: Service and Repair

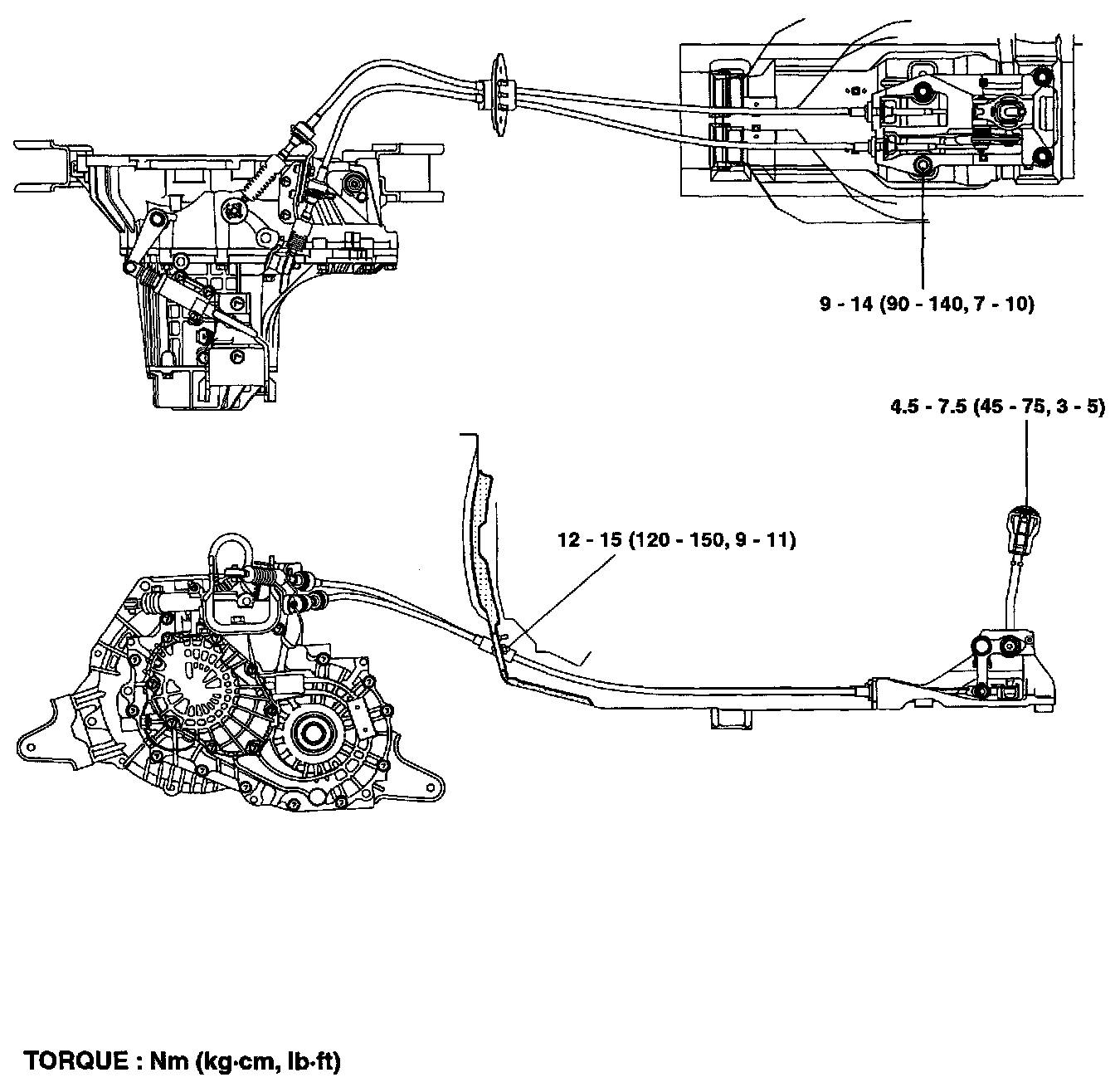

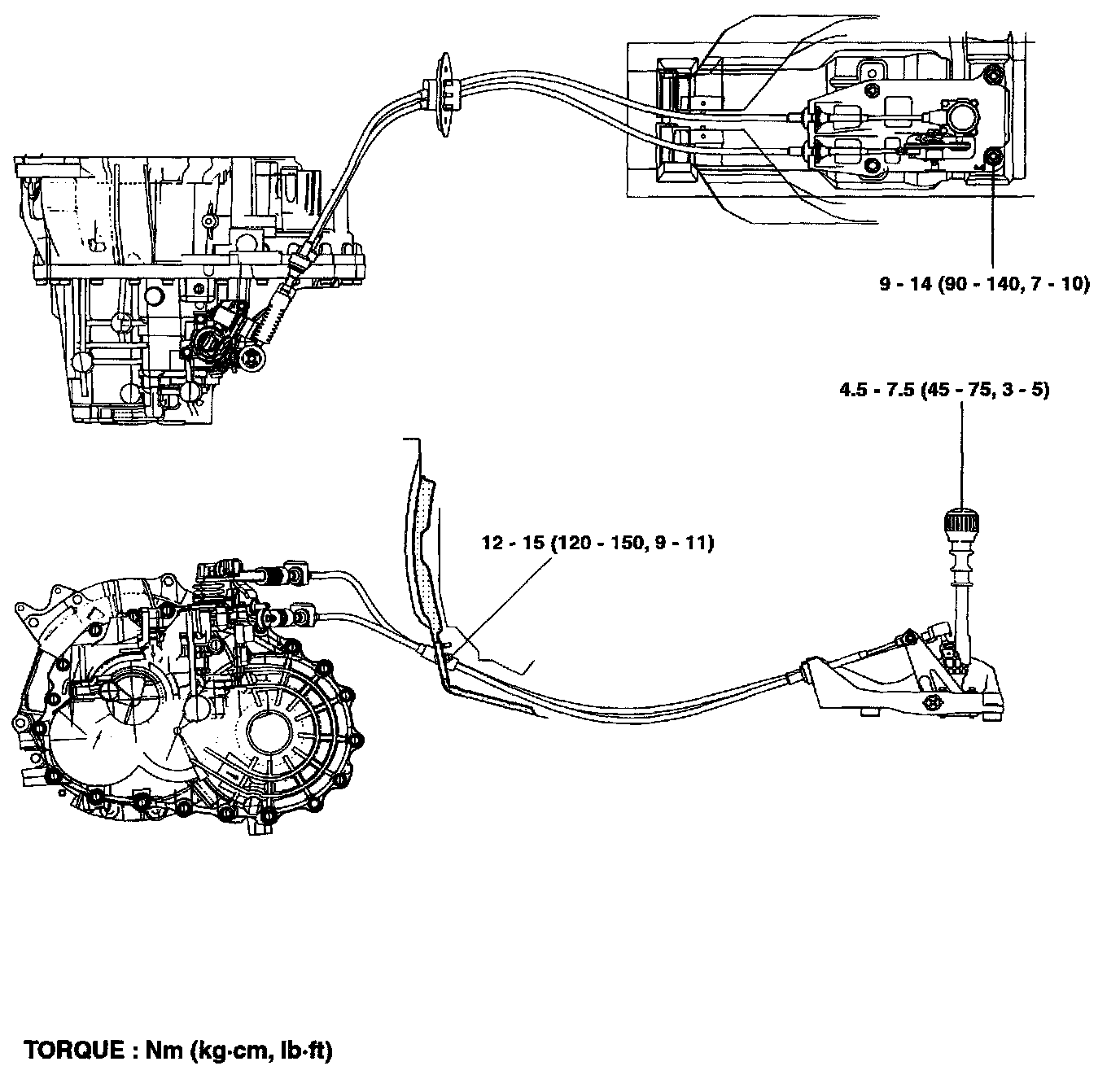

MANUAL TRANSAXLE SHIFT CONTROL





5-SPEED M/T





6-SPEED M/T

REMOVAL

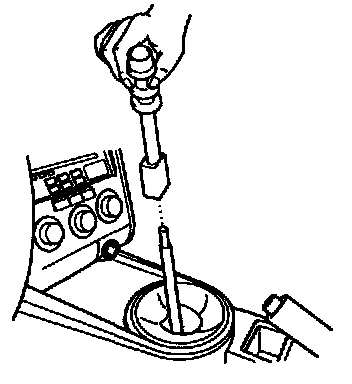

1. Remove the shift knob.

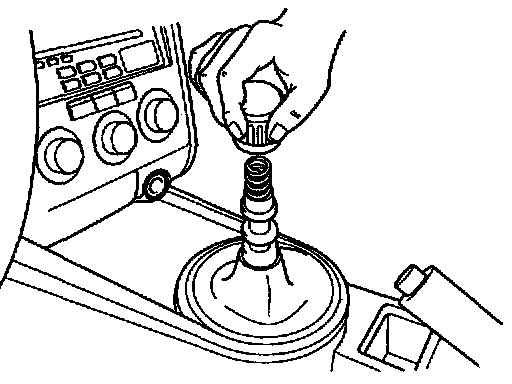

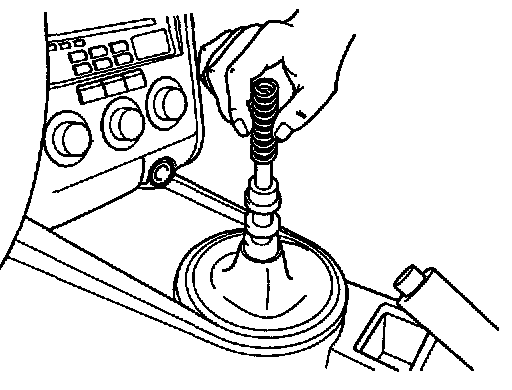

2. Remove the spring and the cap (for 6-speed M/T).





3. Remove the skirt (for 6-speed M/T).

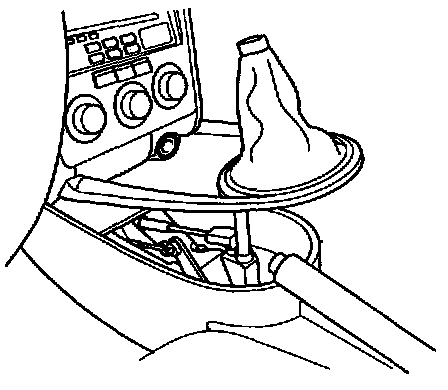

4. Remove the console upper cover.





5. Remove the console assembly.

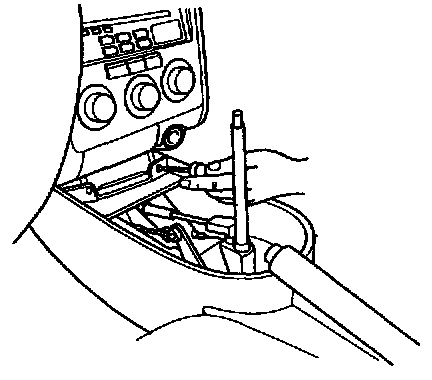

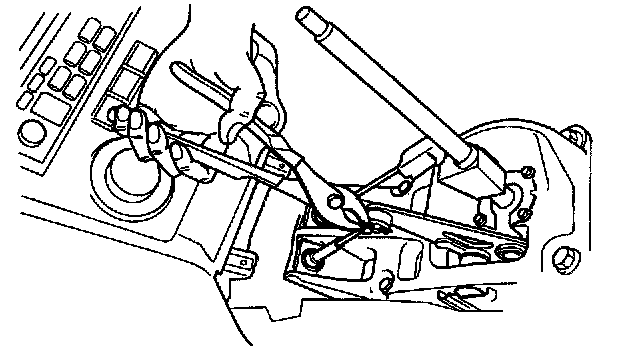

6. Remove the shift cable clip.





7. Remove the select cable clip.

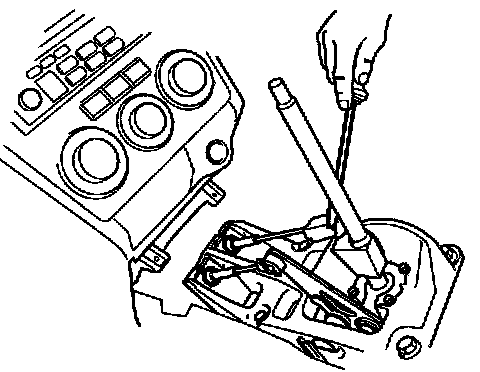

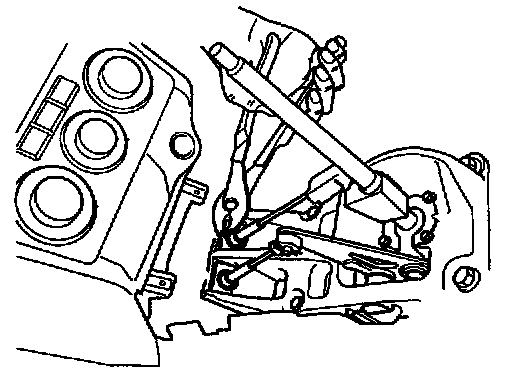

8. Remove the snap pin of the select cable.

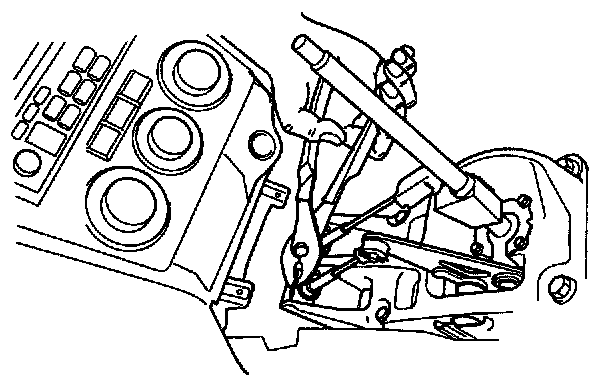

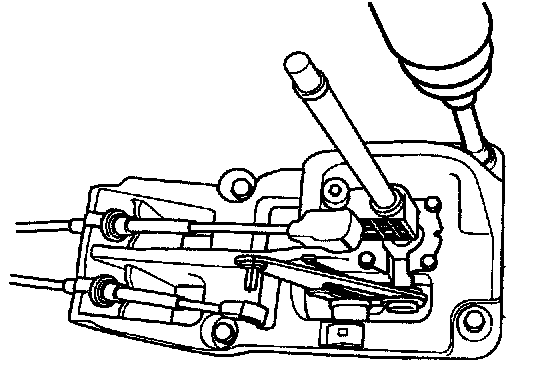

9. Remove the shift cable.





10. Remove the shift lever assembly.

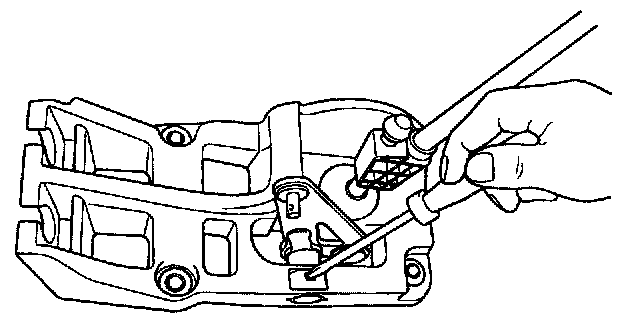

CAUTION: For 6-speed M/T, push the plate shaft outward with a driver or equivalent through the hole in the shift lever bracket to remove it.

INSPECTION
1. Check the select cable for proper operation and for damage.
2. Check the shift cable for proper operation and for damage.
3. Check the boot for damage.
4. Check each bushing for wear, abrasion, sticking, restricted movement or damage.
5. Check for a weak or damaged spring.

INSTALLATION
Install the shift lever assembly.
