Air Bag System - Connector and Schematics Update

Group:
BODY ELECTRICAL

Number:
04-90-006

Date:
MARCH, 2004

Model:
2004 TIBURON

Subject:
2004 TIBURON AIRBAG WIRING CONNECTOR II01 CHANGE

DESCRIPTION:

II02:

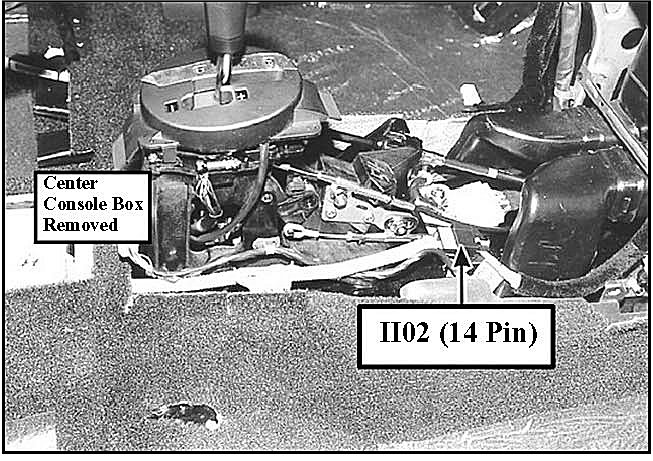

Beginning with December 15, 2003 production vehicles, the airbag wiring connector II01 has been changed from a 20 pin connector to a 14 pin connector.

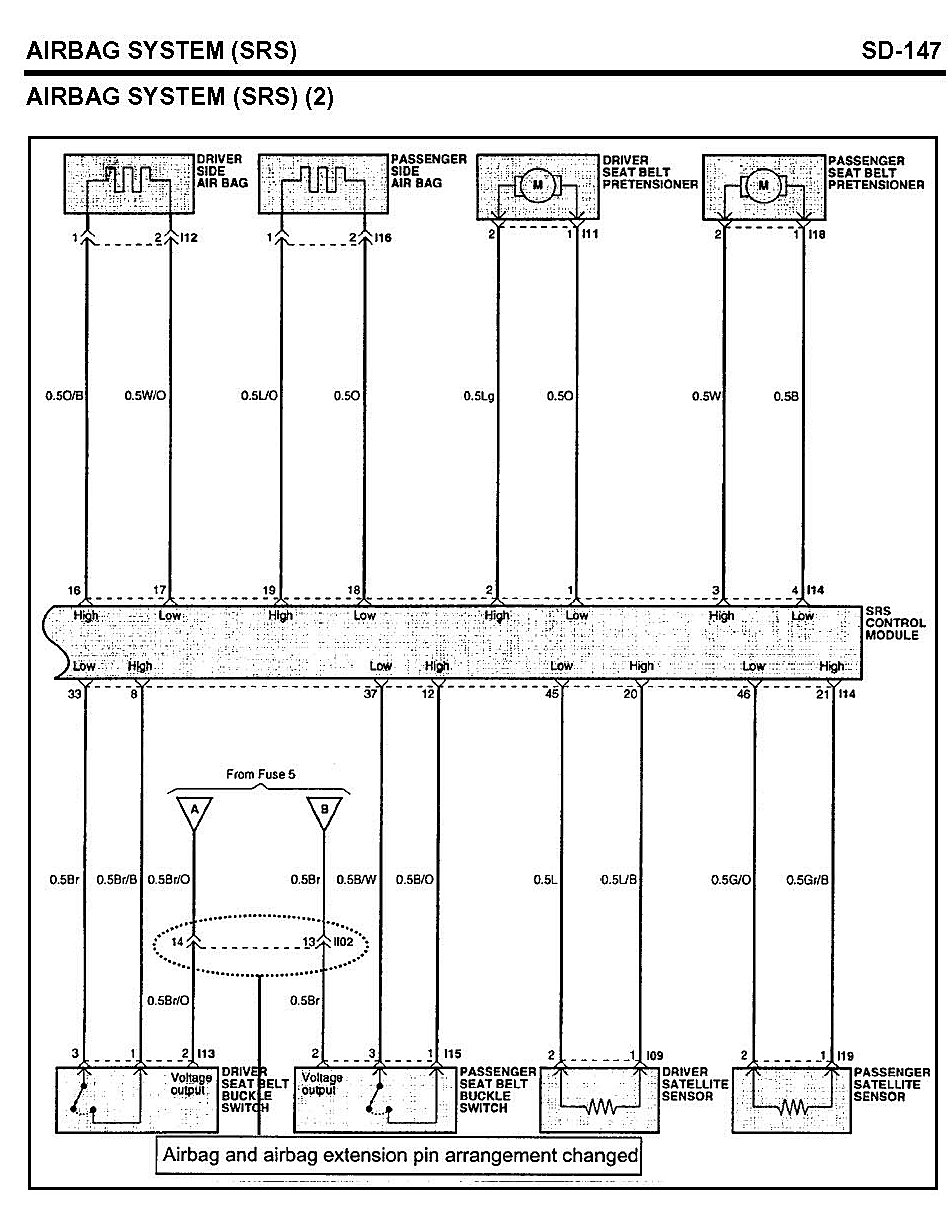

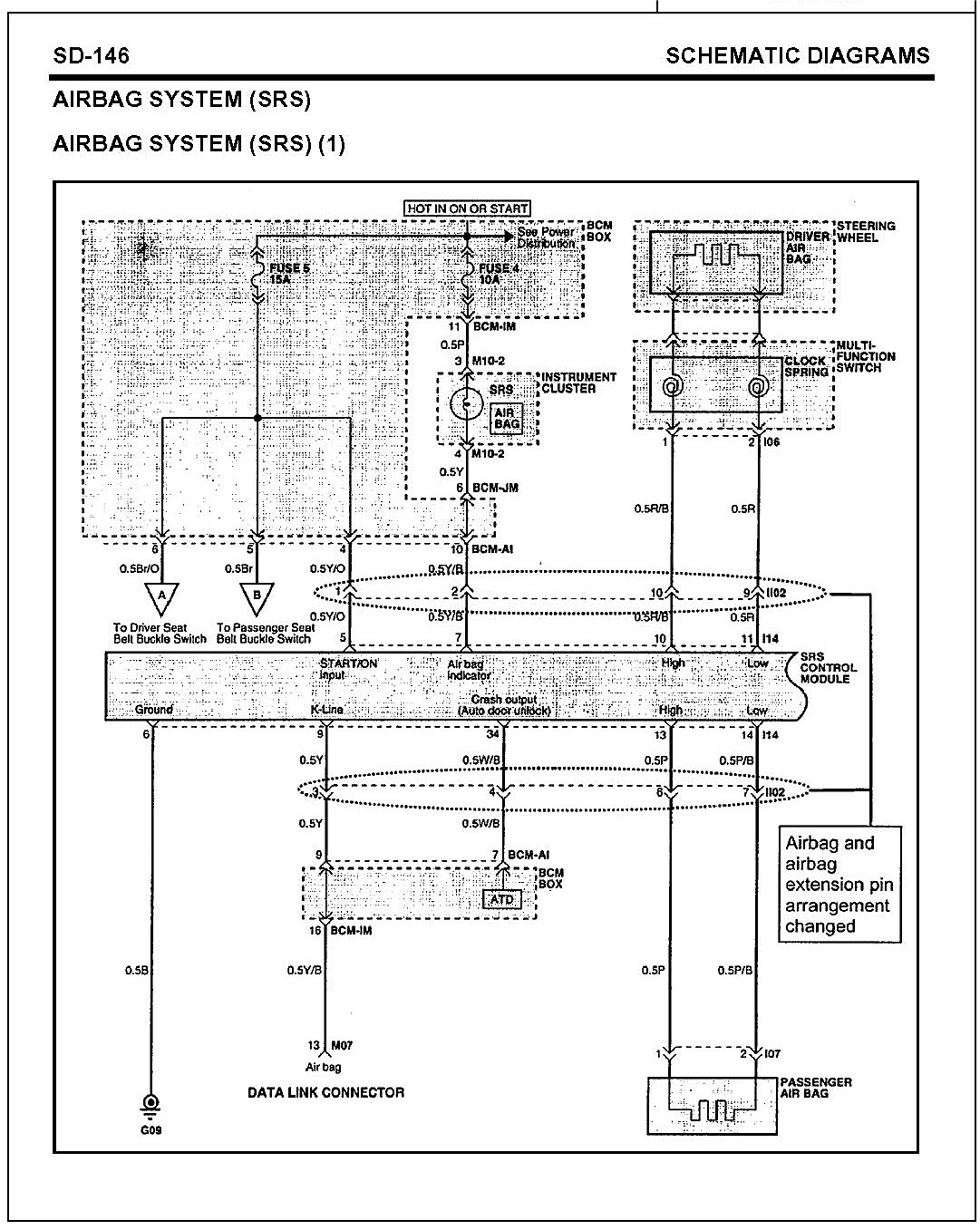

This bulletin contains revised schematic diagrams for the airbag system.





NOTE:

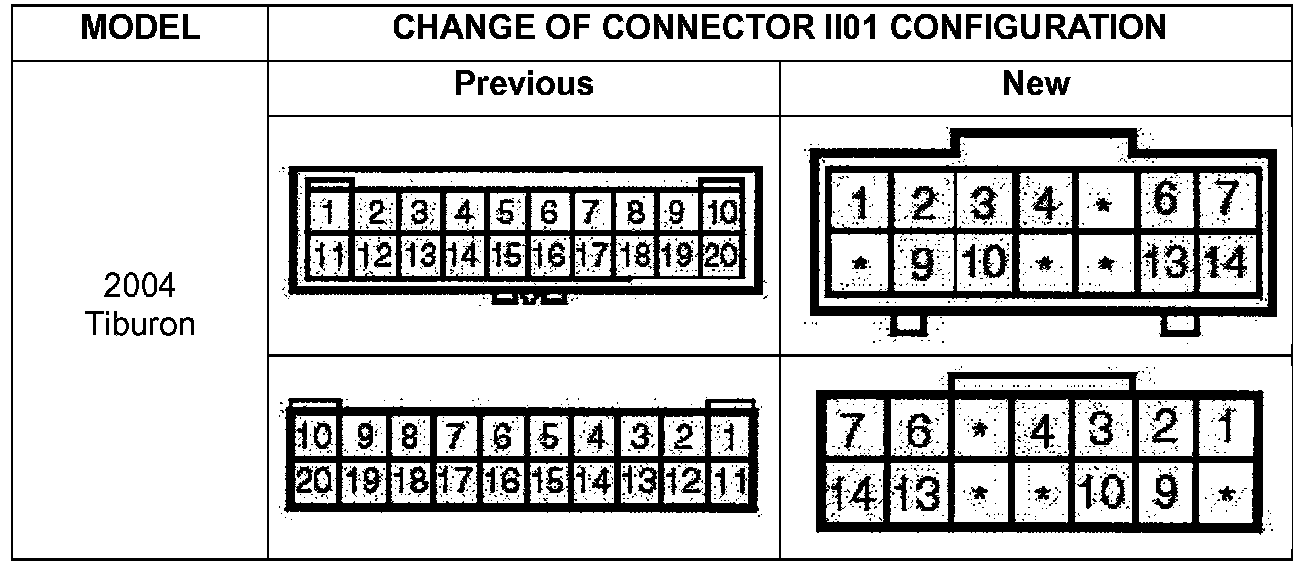

II01 = Previous 20 pin connector. II02 = New 14 pin connector is shown.





AFFECTED MANUAL AND PAGES

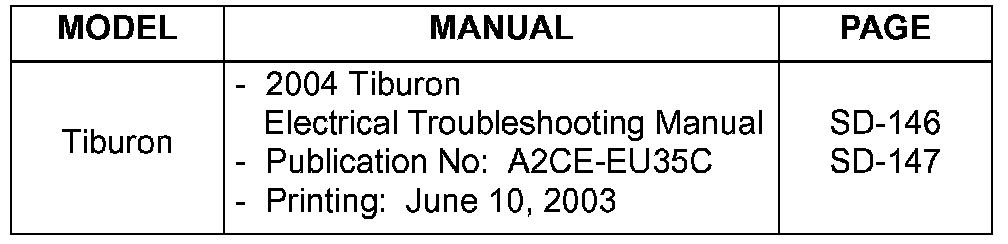

Please write this TSB number at the top of pages SD-146 and SD-147 of the 2004 Tiburon Electrical Troubleshooting Manual and replace with the revised pages shown for future reference.

VEHICLES AFFECTED:
^ Model: 2004 TIBURON

^ Affected vehicle production date range: December 15, 2003 -
