Impact Sensor: Service and Repair

SATELLITE SENSOR

REMOVAL

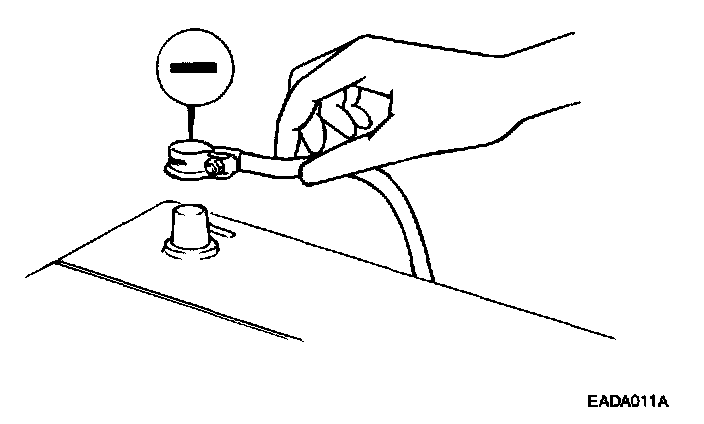

1. Disconnect the negative battery cable and keep secure from battery.

CAUTION: Wait at least 30 seconds after disconnecting the battery cable before doing any further work.

2. Remove the front seat.

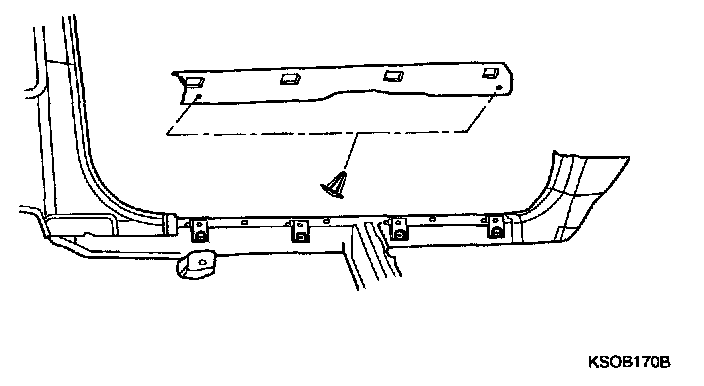

3. Remove the door scuff trim.

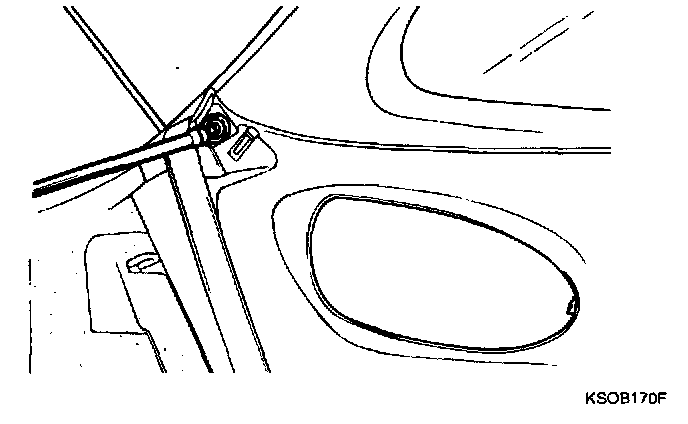

4. Remove the quarter trim. After removing seat belt lower anchor bolt.
5. Remove the floor carpet.




6. Disconnect the satellite sensor connector and remove the satellite sensor.
