Campaign - Fuel Pump Replacement: Overview

Group:
CAMPAIGN

Number:
05-01-009

Date:
SEPTEMBER, 2005

Model:
ELANTRA, TIBURON

Subject
2002-2004 ELANTRA AND TIBURON FUEL PUMP REPLACEMENT - SERVICE CAMPAIGN T13

DESCRIPTION:

This bulletin supersedes TSB # 04-01-003 to correct Model Years

Some 2002 through 2004 MY Elantra and 2003 to 2004 Tiburon vehicles may experience rough engine running as a result of reduced fuel pressure when operated in high ambient temperatures at high elevations.

A new fuel pump and filter sub-assembly has been made available to correct this condition. This bulletin describes the steps necessary to replace the fuel pump and filter sub-assembly.

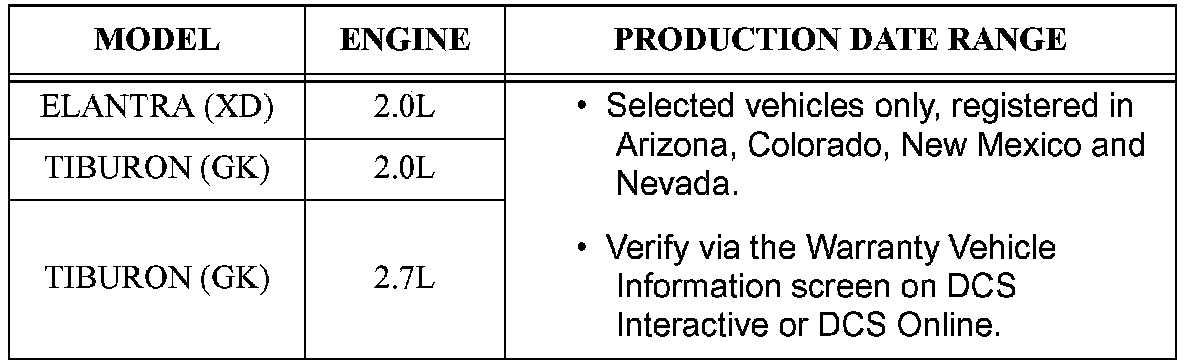

AFFECTED VEHICLES





PARTS INFORMATION

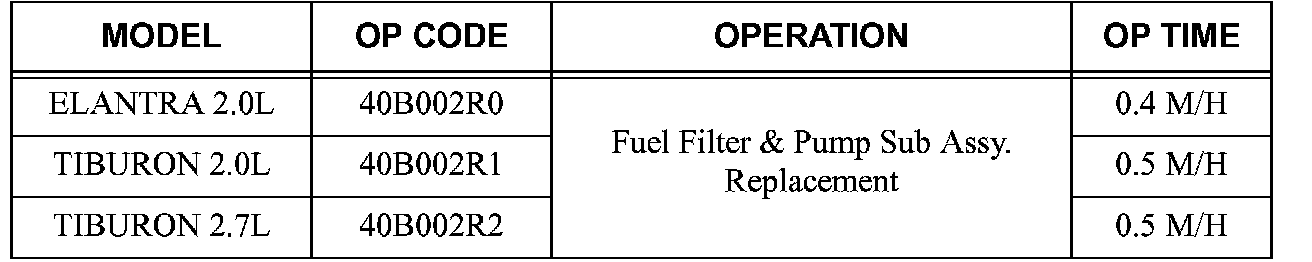

SERVICE CAMPAIGN CLAIM INFORMATION
