Front Fog Lamp

FRONT FOG LAMP







The front fog lamps should be aimed as the same manner of the head lamps aiming.

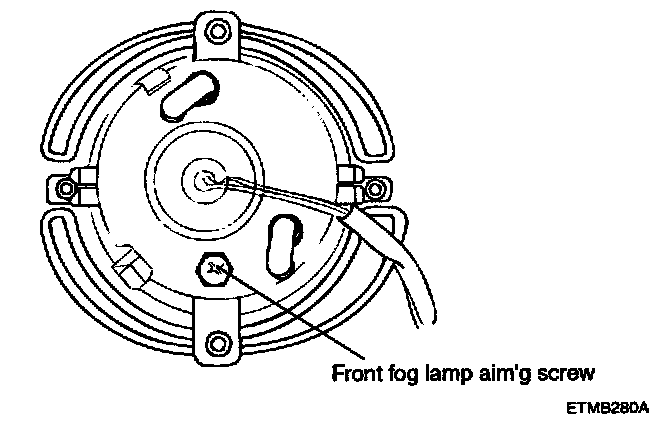

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear.

HEAD LAMP AND FOG LAMP AIMING POINT

Headlamp And Fog Lamp Aiming Point:

1. Turn the low beam on without driver aboard.
The cut-off line should be projected in the allowable range (shaded region).




2. Turn the high beam on without driver aboard.
The hot-zone should be projected in the allowable range (shaded region).




3. Turn the front fog lamp on without driver aboard. The cut-off line should be projected in the allowable range (shaded region).
