Blower and A/C Controls (Automatic)

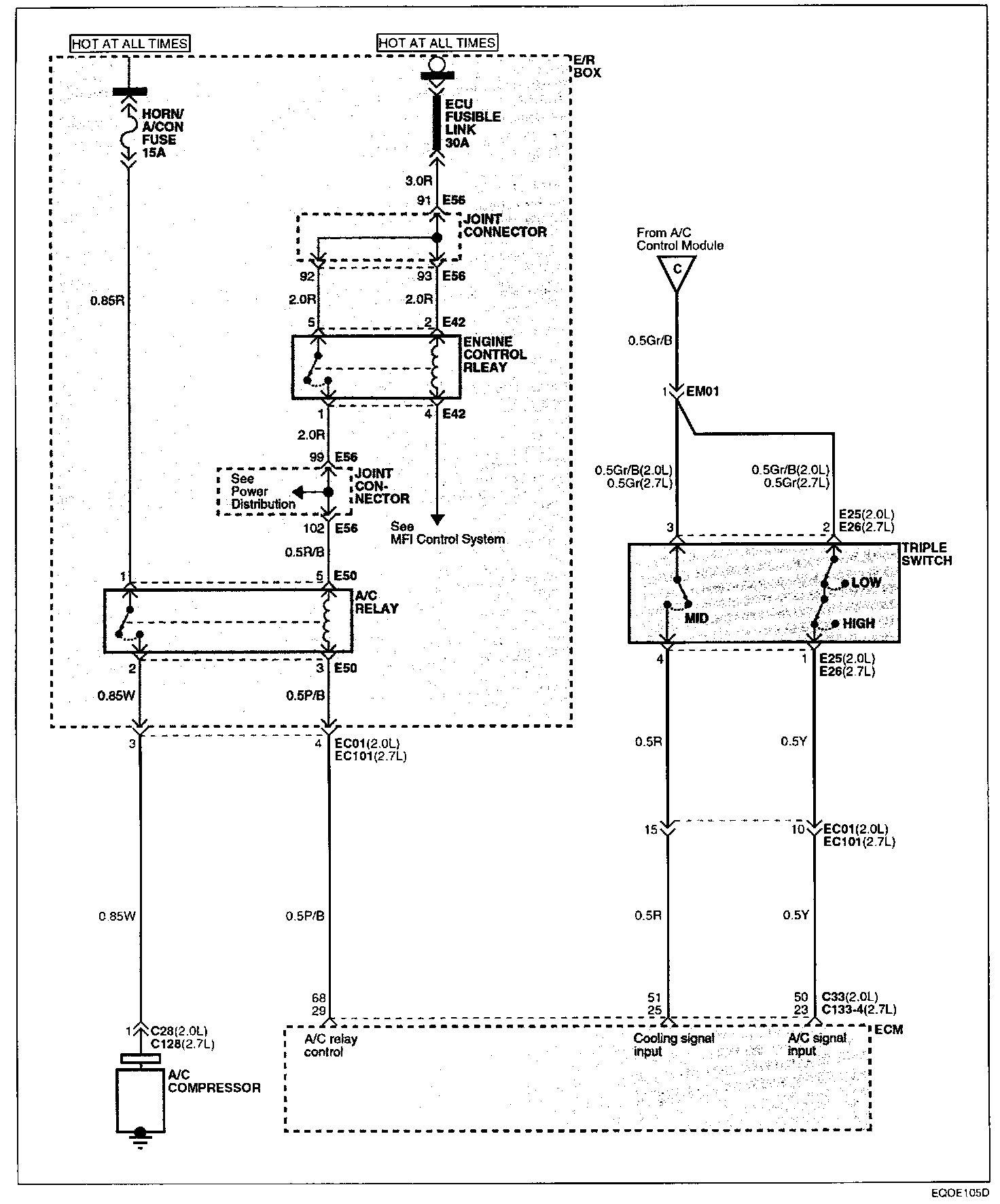

Blower And A/C Controls (Automatic) Part 1:

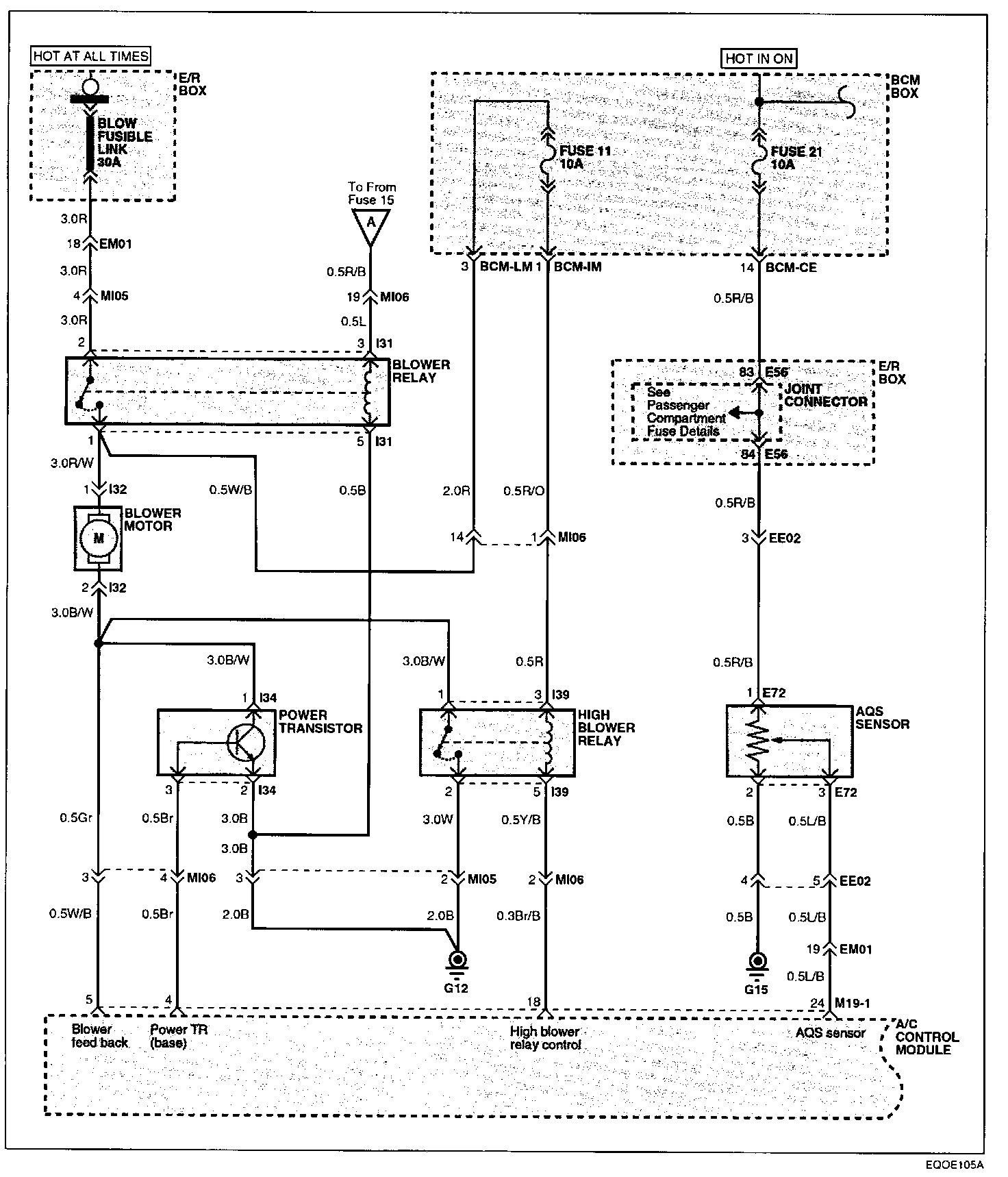

Blower And A/C Controls (Automatic) Part 2:

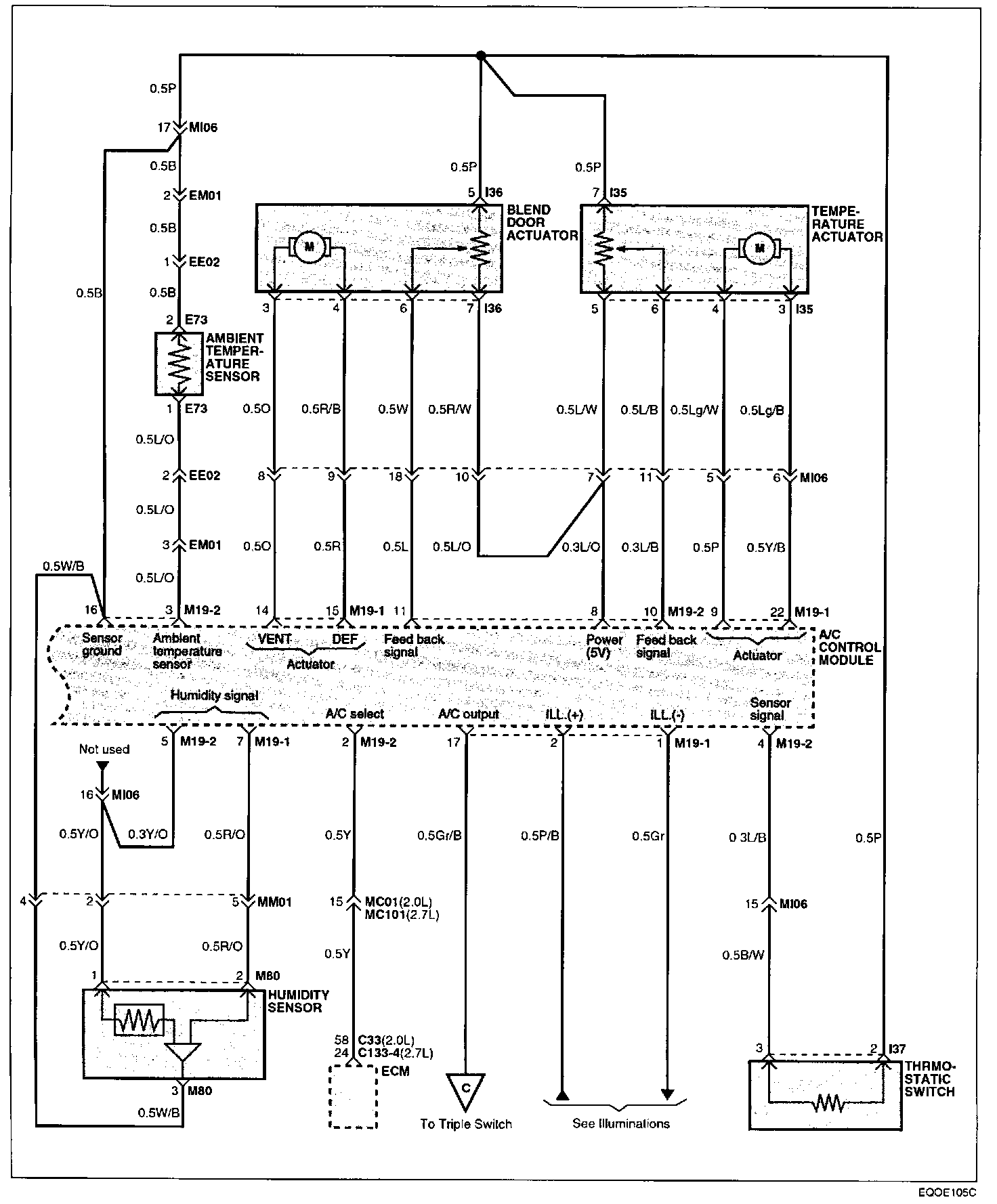

Blower And A/C Controls (Automatic) Part 3:

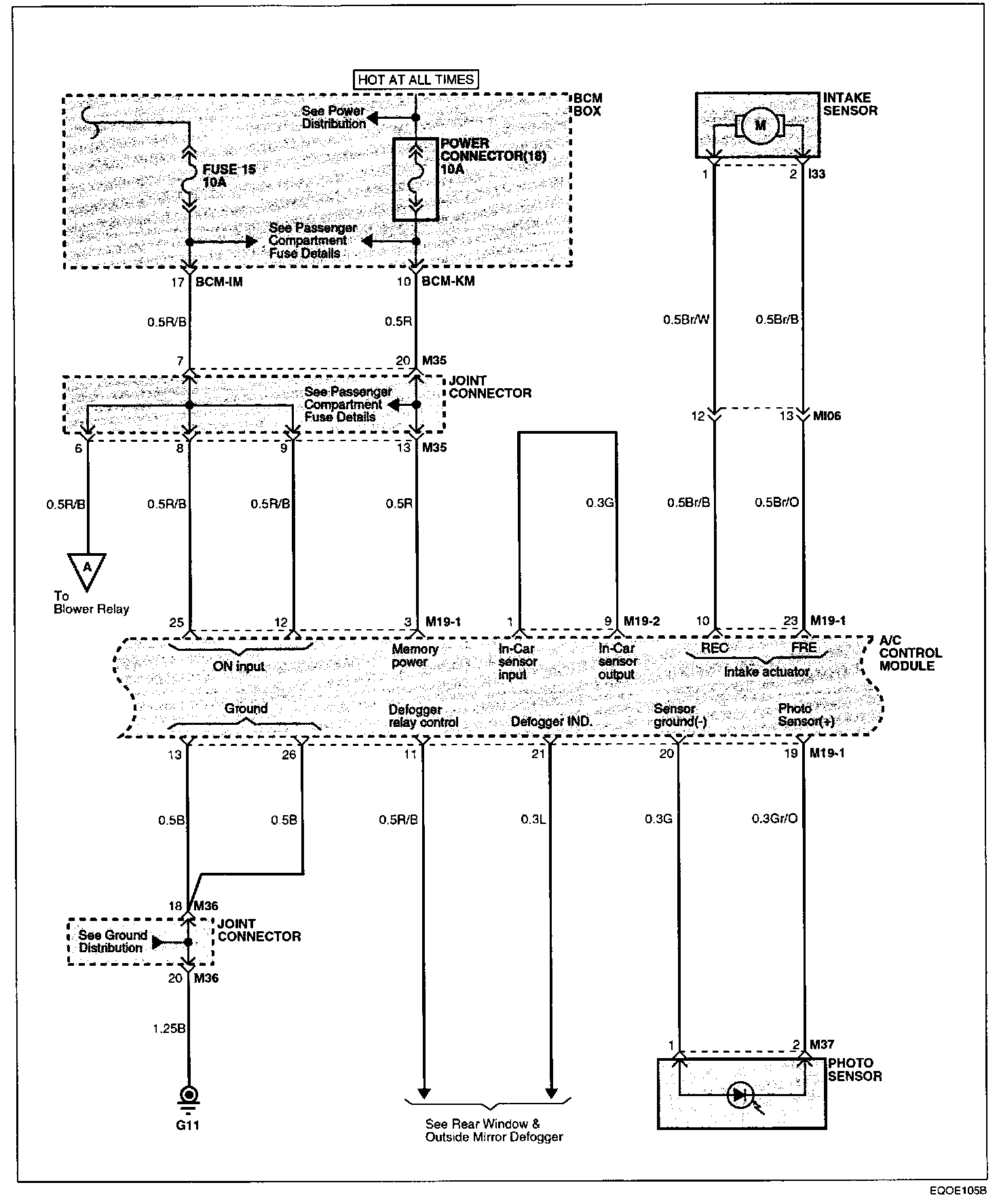

Blower And A/C Controls (Automatic) Part 4:
