Blower and A/C Controls (Automatic)

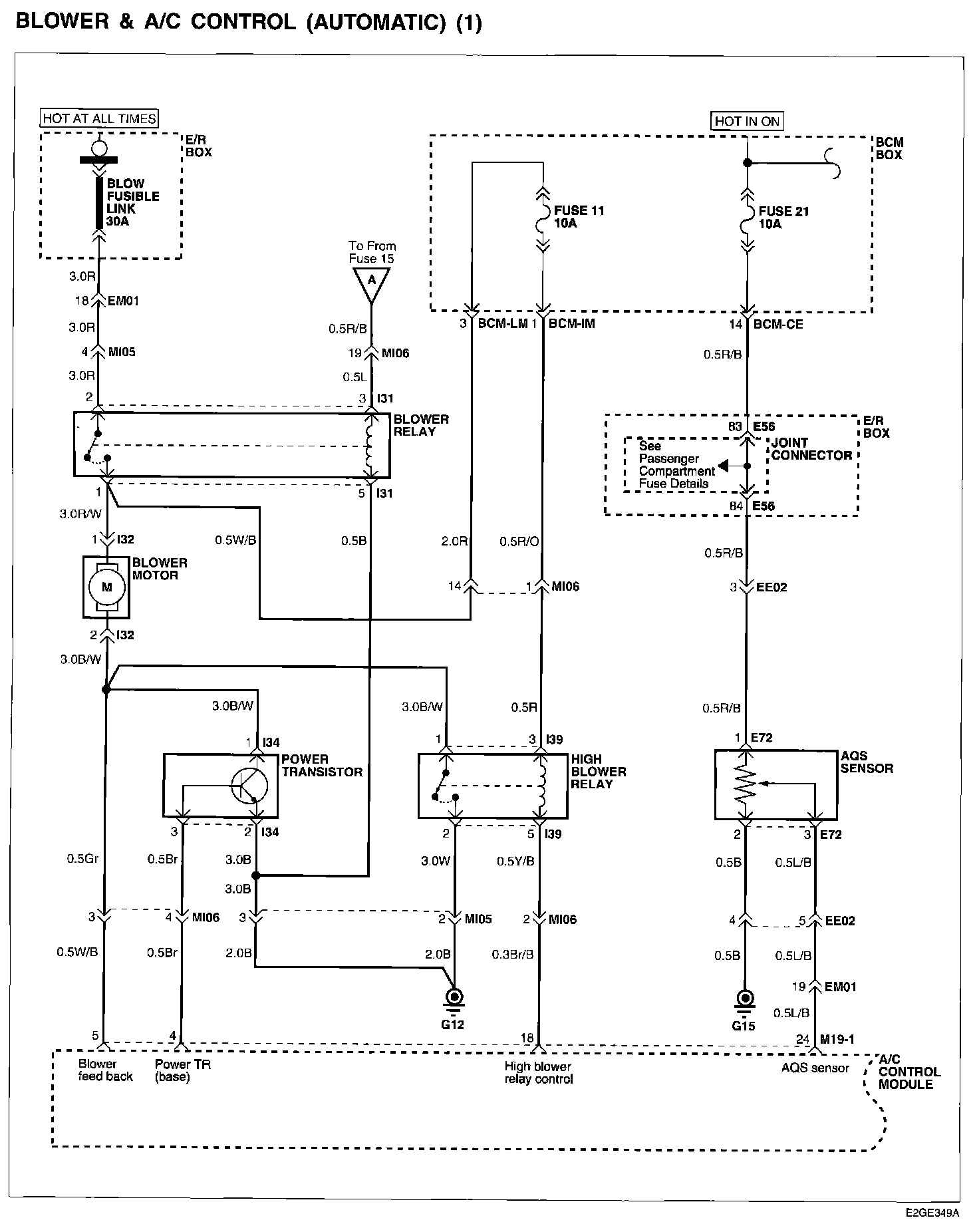

Blower & A/C Control (Automatic) (1):

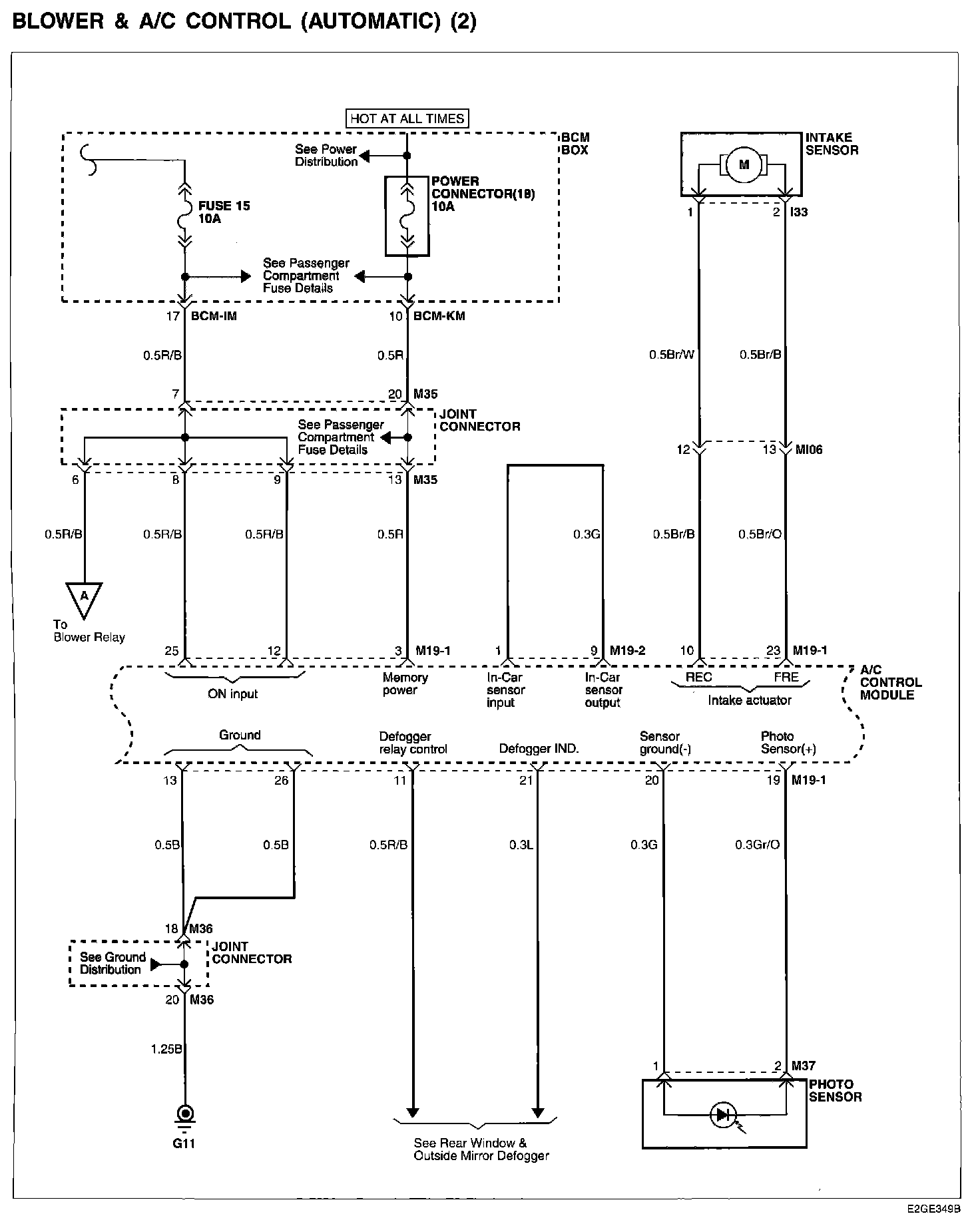

Blower & A/C Control (Automatic) (2):

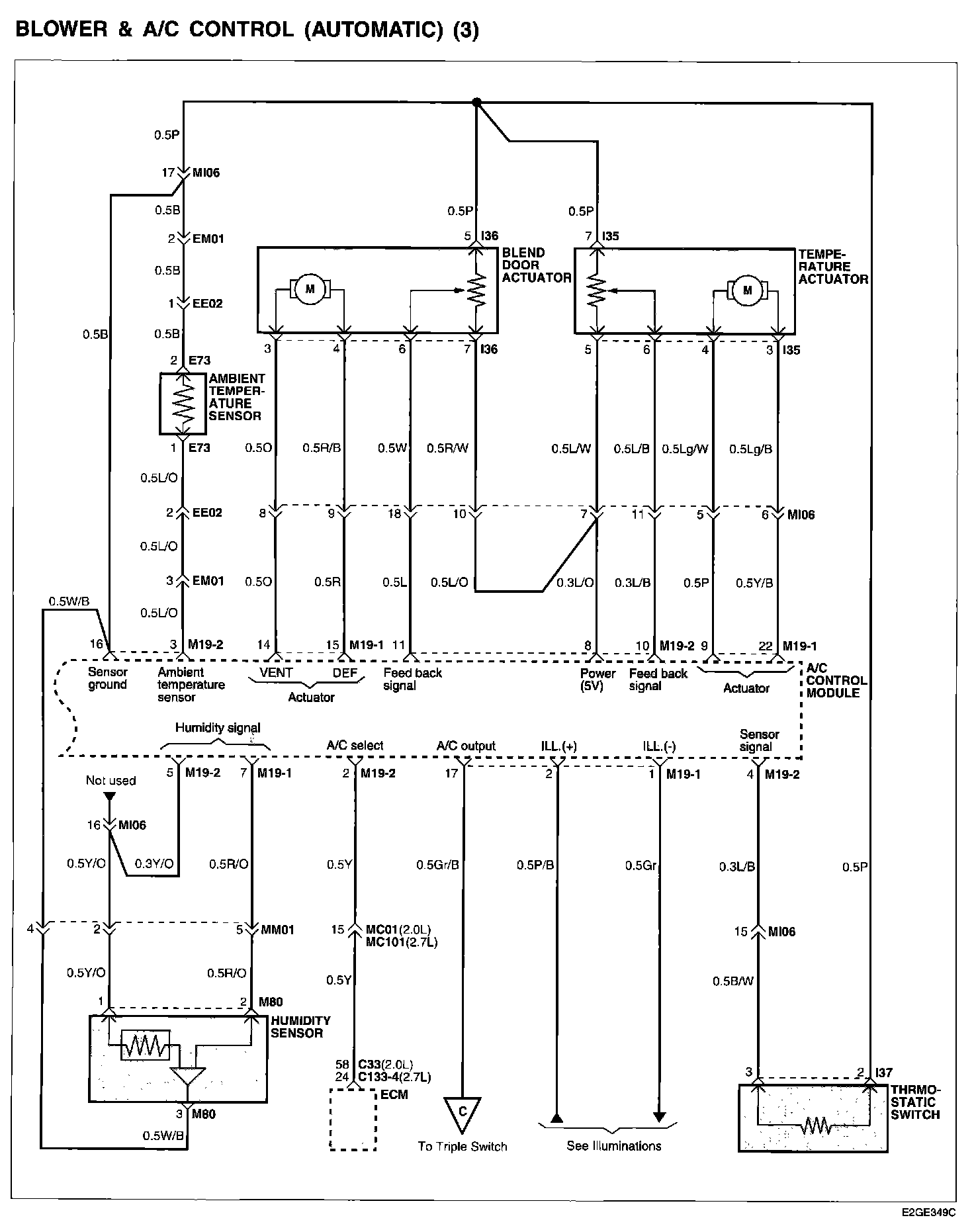

Blower & A/C Control (Automatic) (3):

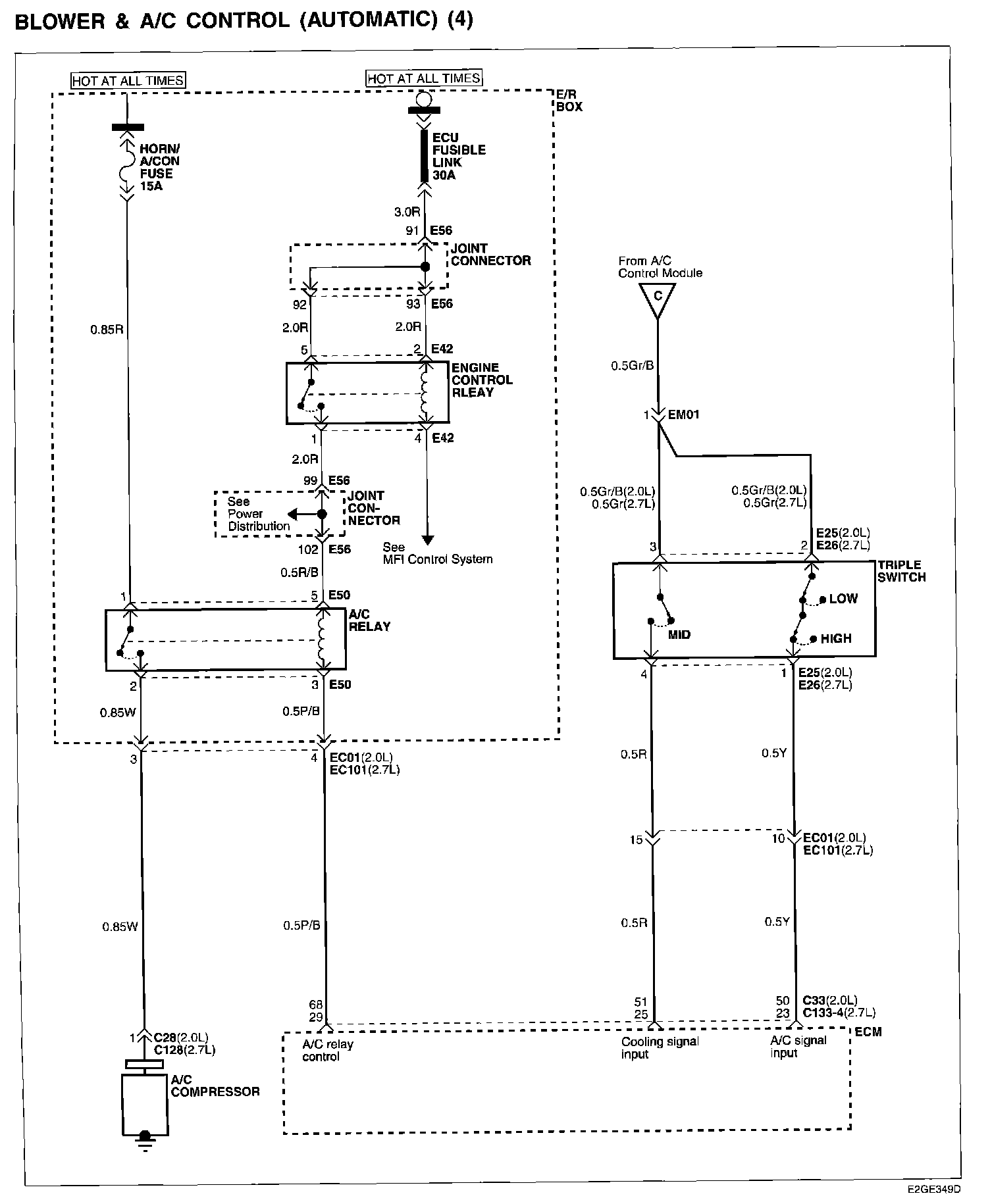

Blower & A/C Control (Automatic) (4):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
