Home
>>
Hyundai
>>
2004
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M Connectors (In Main Harness)
>>
M15 to M35
M15 to M35

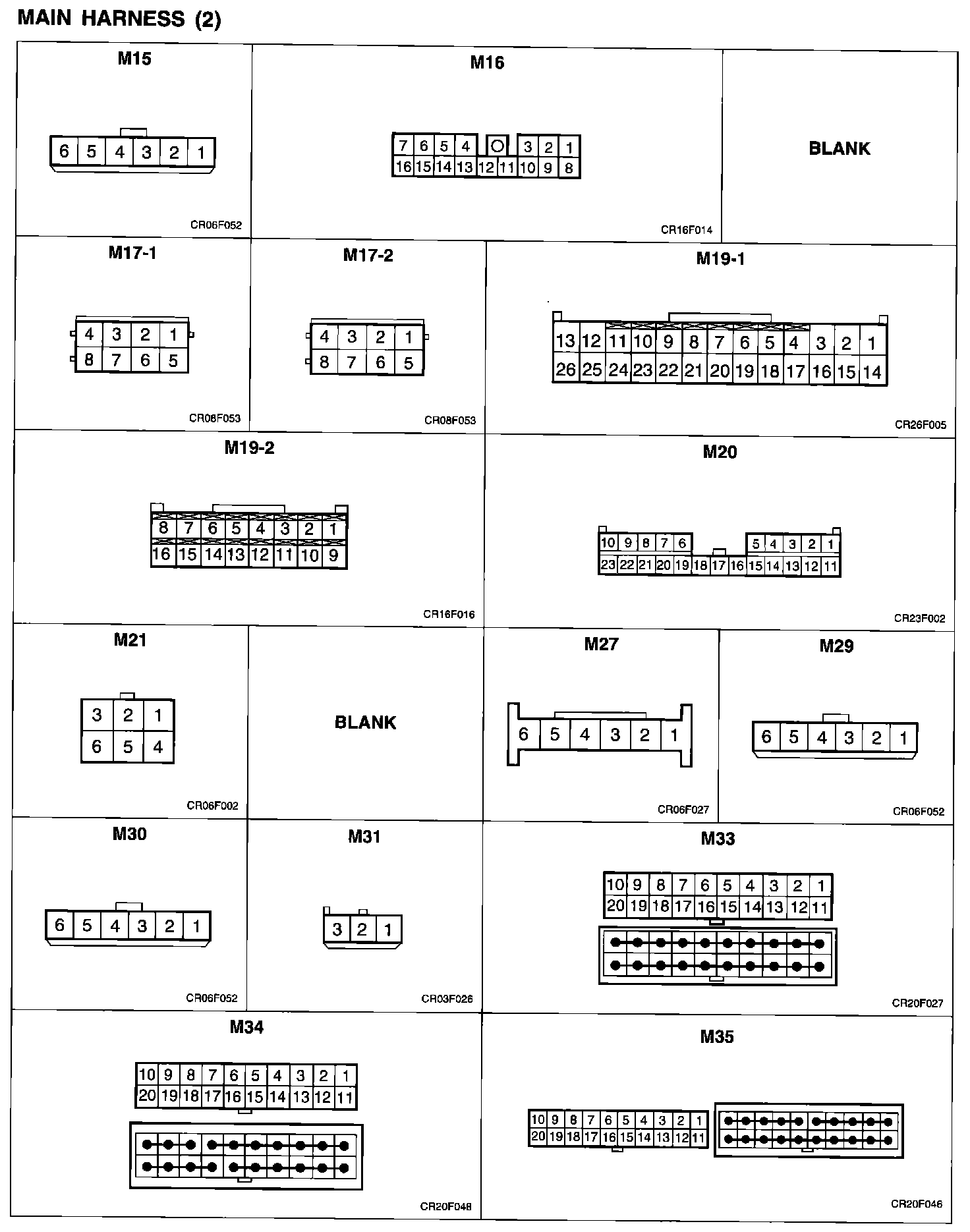

M15 To M35:
