Home
>>
Hyundai
>>
2004
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M Connectors (In Main Harness)
>>

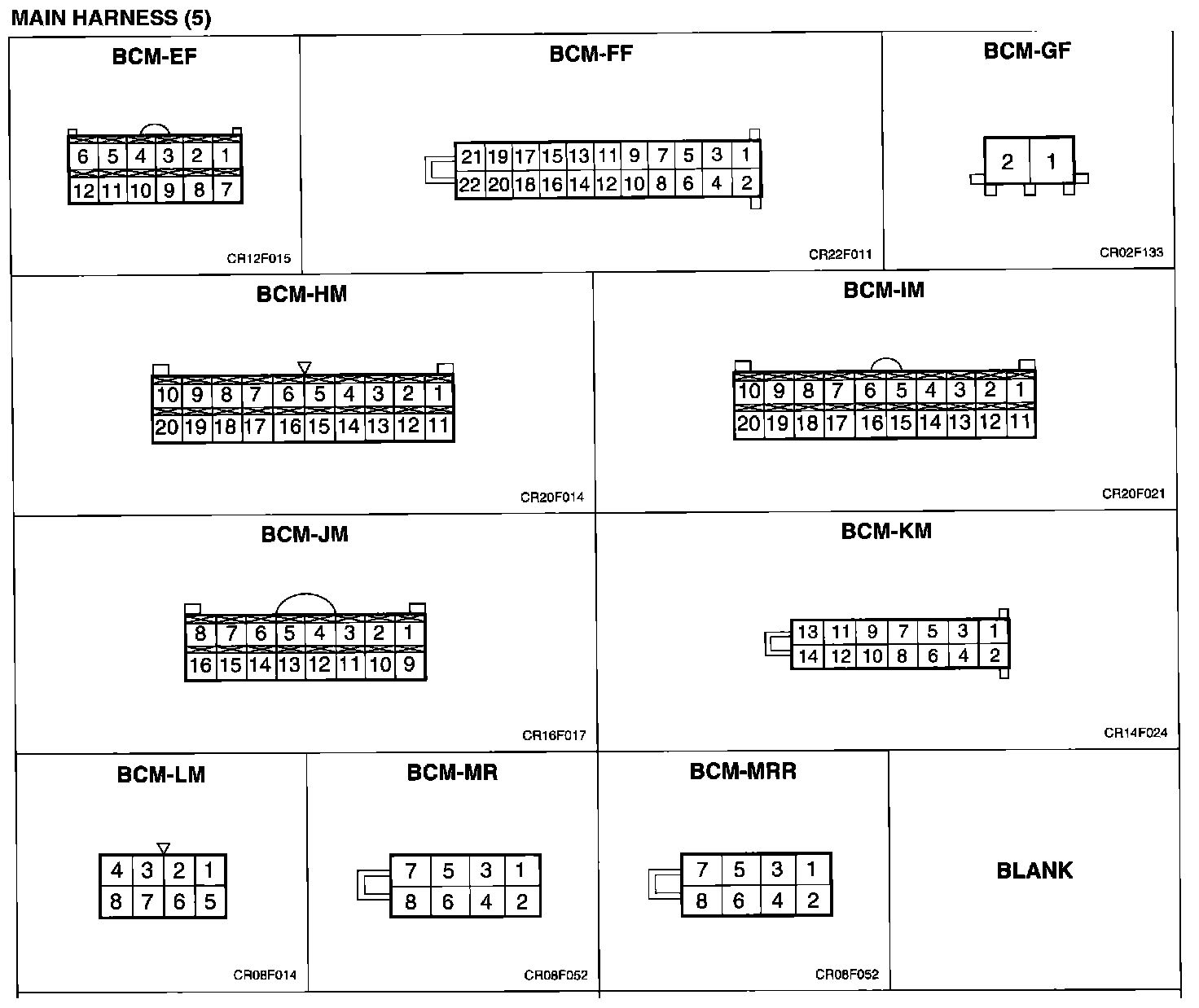

BCM-EF to BCM-MRR
BCM-EF to BCM-MRR
BCM-EF To BCM-MRR:
