I Connectors (In Instrument Harness)
>>

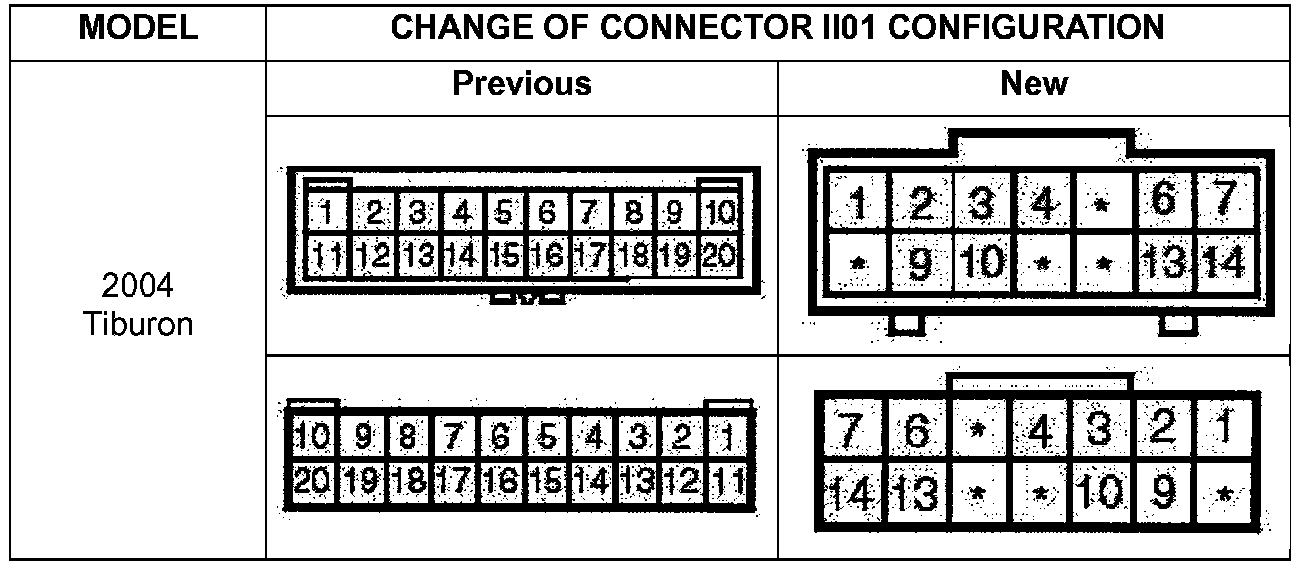

II01
II01
The contents of this article reflects the changes called out by TSB 04-90-006.
