FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hyundai
>>
2004
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

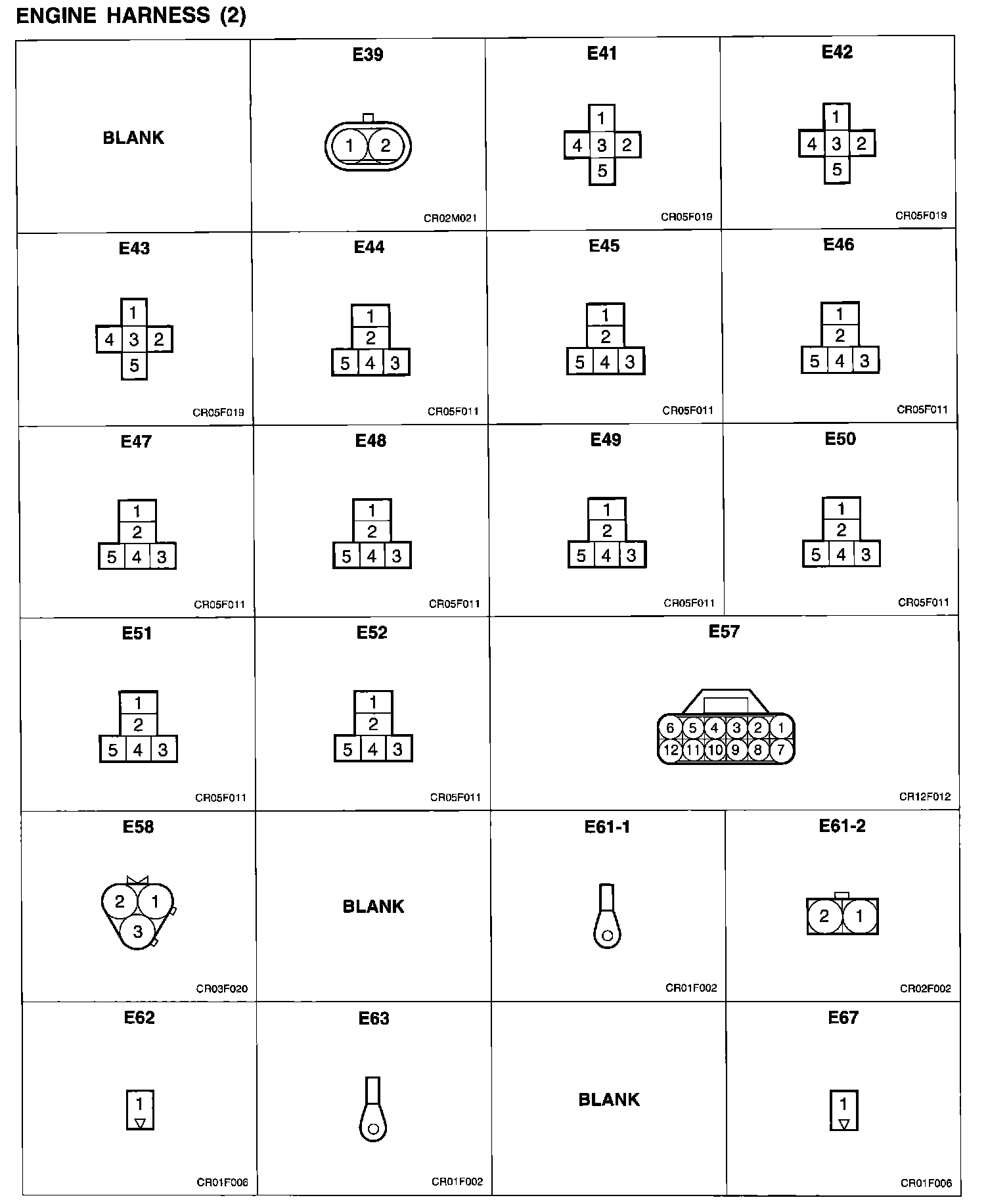

E Connectors (In Engine Harness)
>>
E39 to E67
E39 to E67
E39 To E67:
