P1602

DTC P1602 Serial Communication Problem with TCM (Time out)

DESCRIPTION
A communication line exists between the Engine Control Module (ECM) and the Transmission Control Module (TCM). The communication is through a Control Area Network (CAN).

DTC Detecting Condition:

Schematic Diagram:

Step 1 - 3:

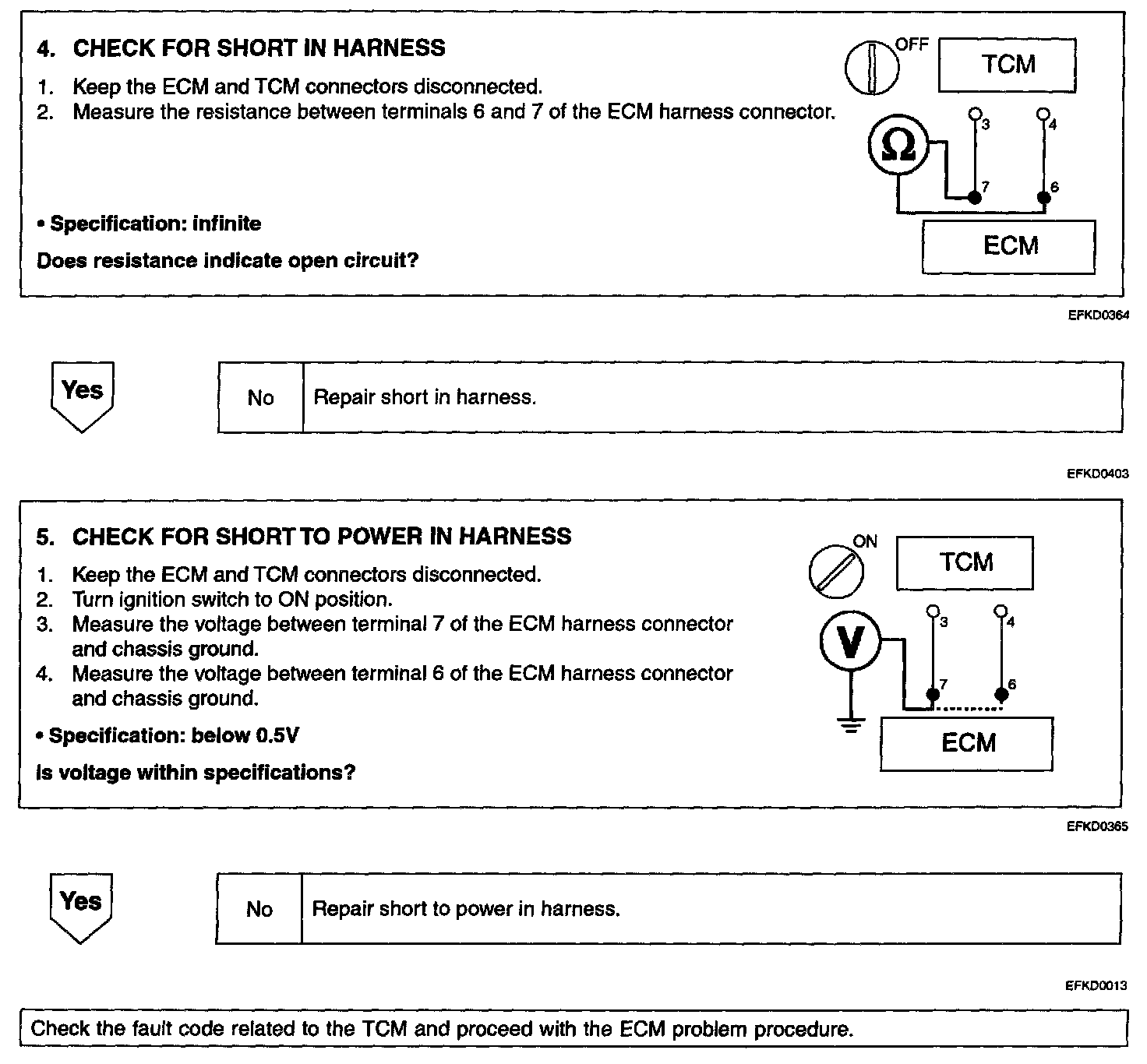

Step 4 - 5:

INSPECTION PROCEDURE
