P0650

DTC P0650 Malfunction Indicator Lamp (MIL) Control Circuit Malfunction

DESCRIPTION
The Malfunction Indicator Lamp (MIL), which is located in the instrument cluster, comes on to notify the driver that there may be a problem with the vehicle and that service is needed. Immediately after the ignition switch turns on, the malfunction indicator lamp is lit for 5 seconds to indicate that the MIL operates normally.

DTC Detecting Condition:

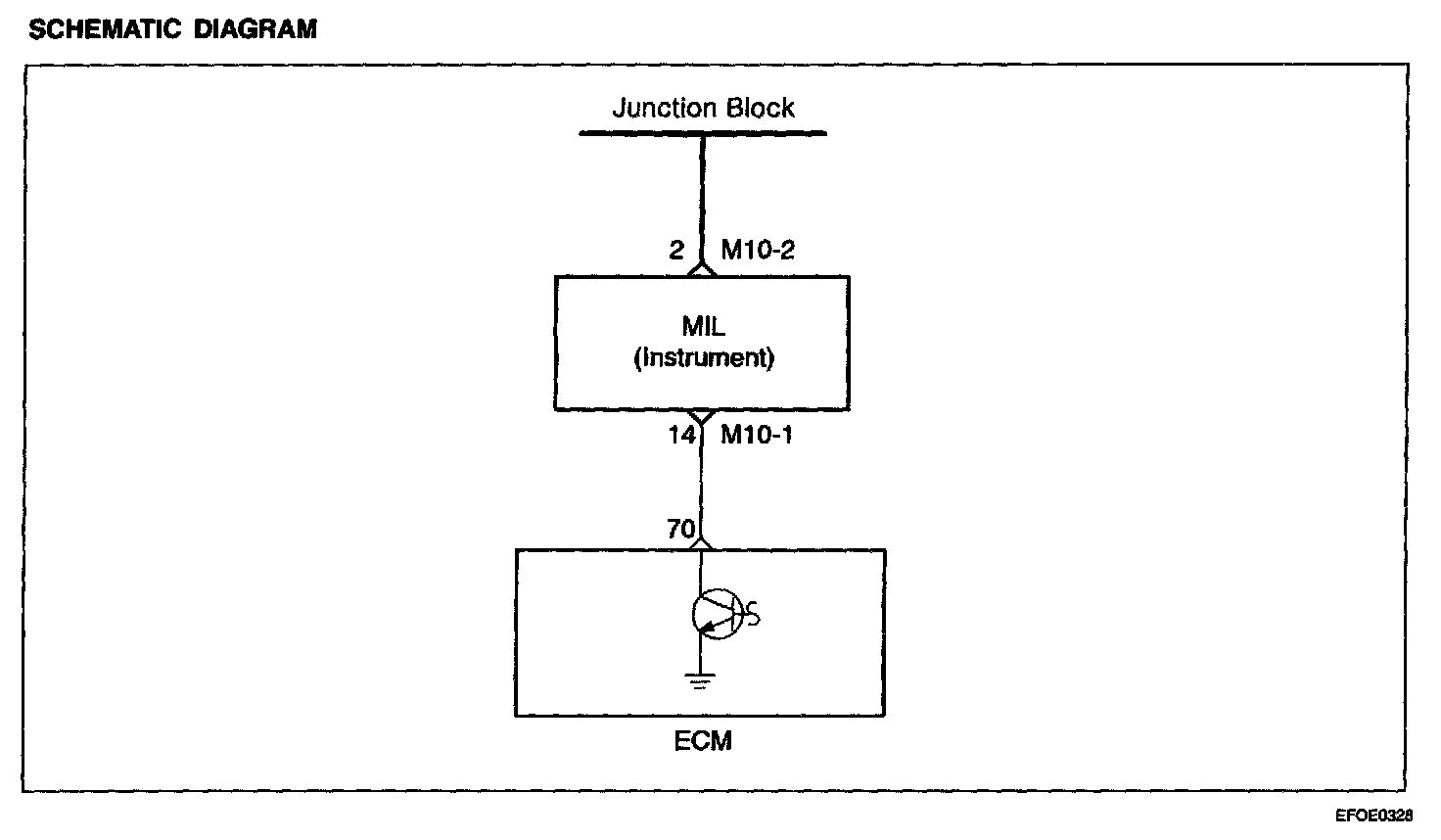

Schematic Diagram:

Step 1 - 3:

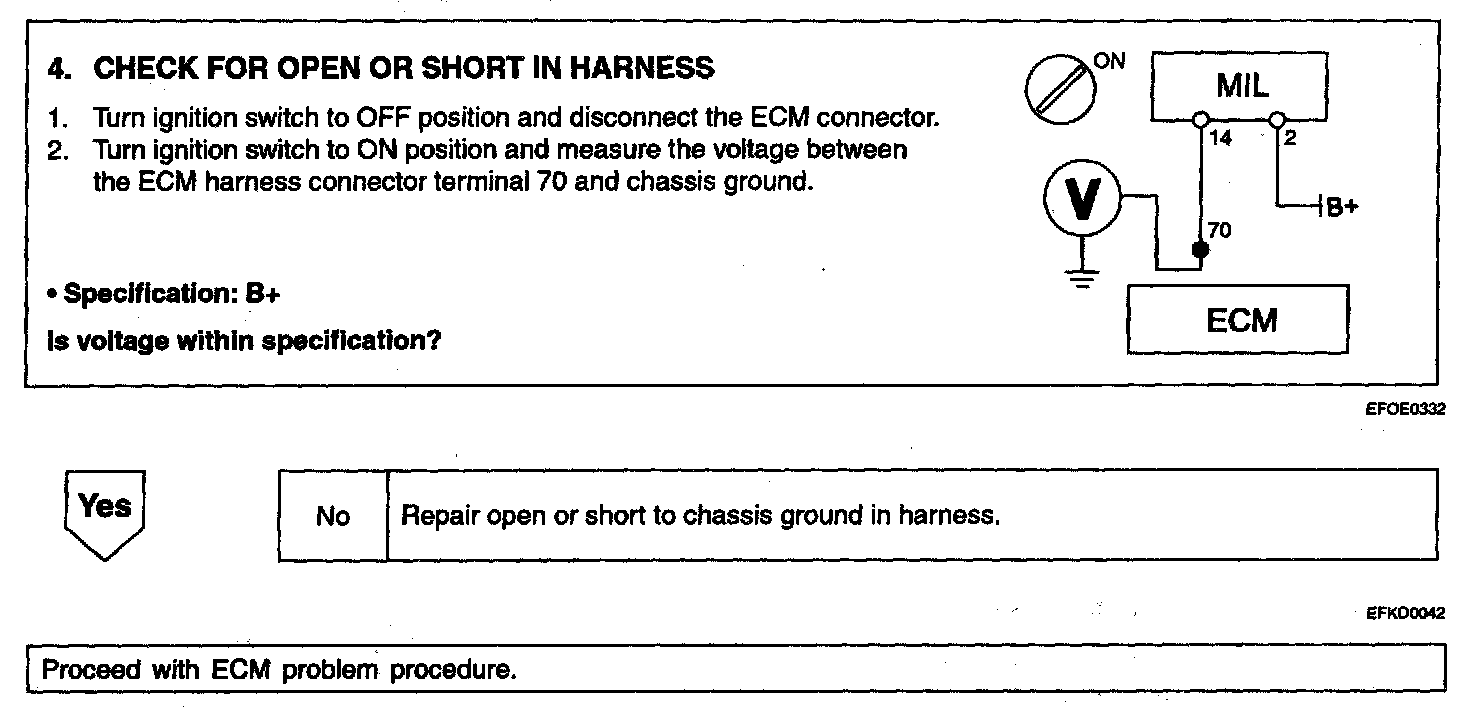

Step 4:

INSPECTION PROCEDURE
