P0605

DTC P0605 Internal Control Module Read Only Memory(ROM)

DESCRIPTION




A malfunction is detected by using a checksum technique for verifying data. The digital data is composed of zeros and ones. A checksum is the total of all ones in a string of data. By comparing the checksum value with a stored value1 a malfunction can be detected.

DTC Detecting Condition:

INSPECTION PROCEDURE
- Internal fault. There is no inspection service possible for this diagnostic trouble code.

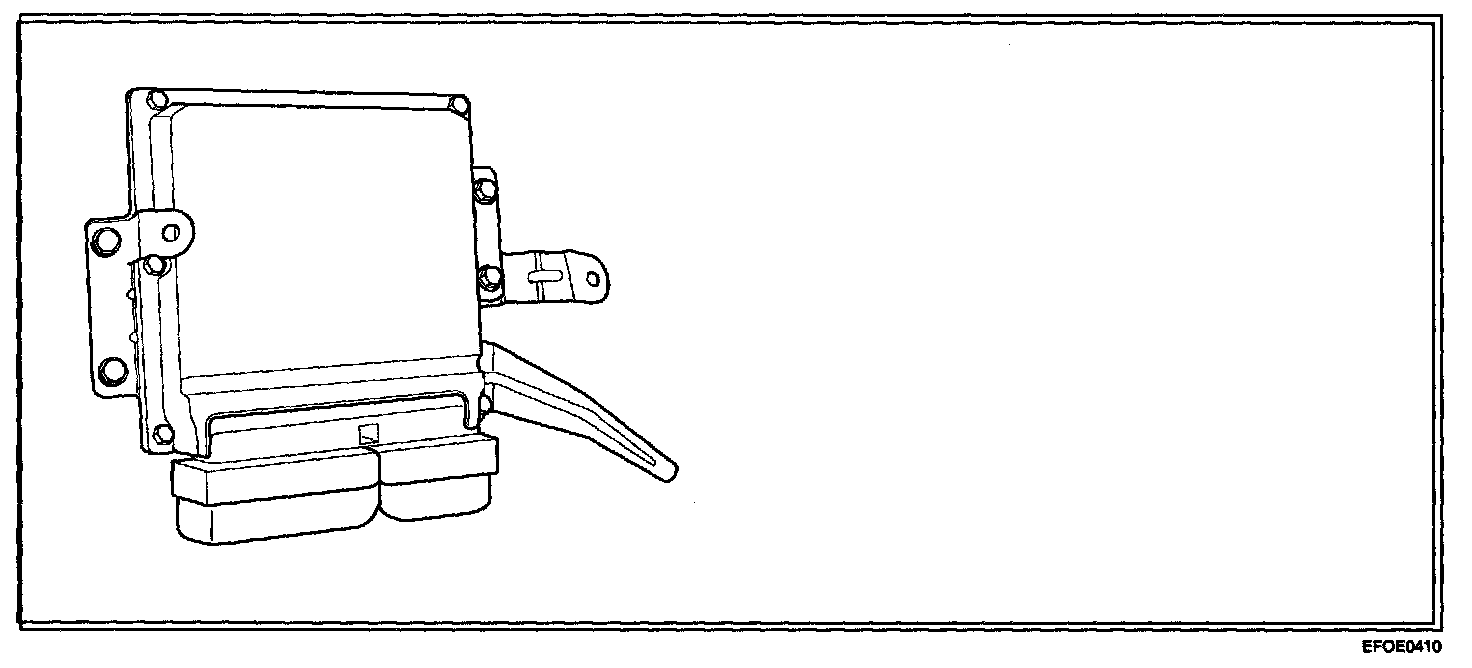

- Temporarily install a good ECM and check for proper operation. If problem is corrected, replace ECM.
