P0560

DTC P0560 System Voltage Malfunction

DESCRIPTION
The ECM provides ground to one side of the coil of the engine control relay and the other side is connected to the battery. The ECM monitors battery voltage and the voltage after the engine control relay.

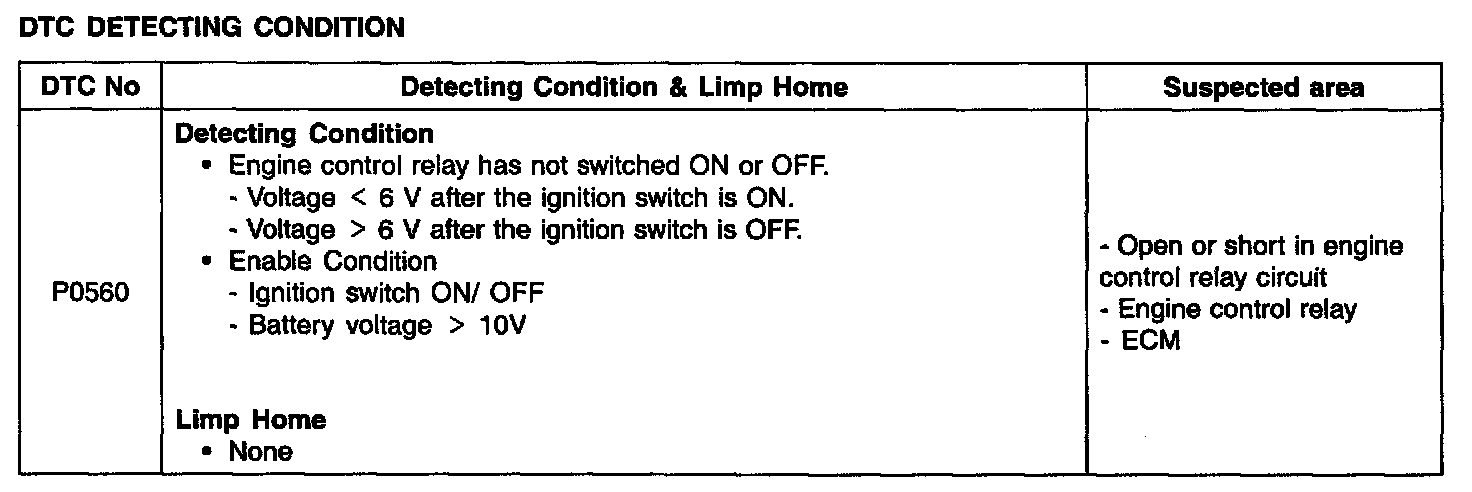

DTC Detecting Condition:

Schematic Diagram:

Step 1 - 3:

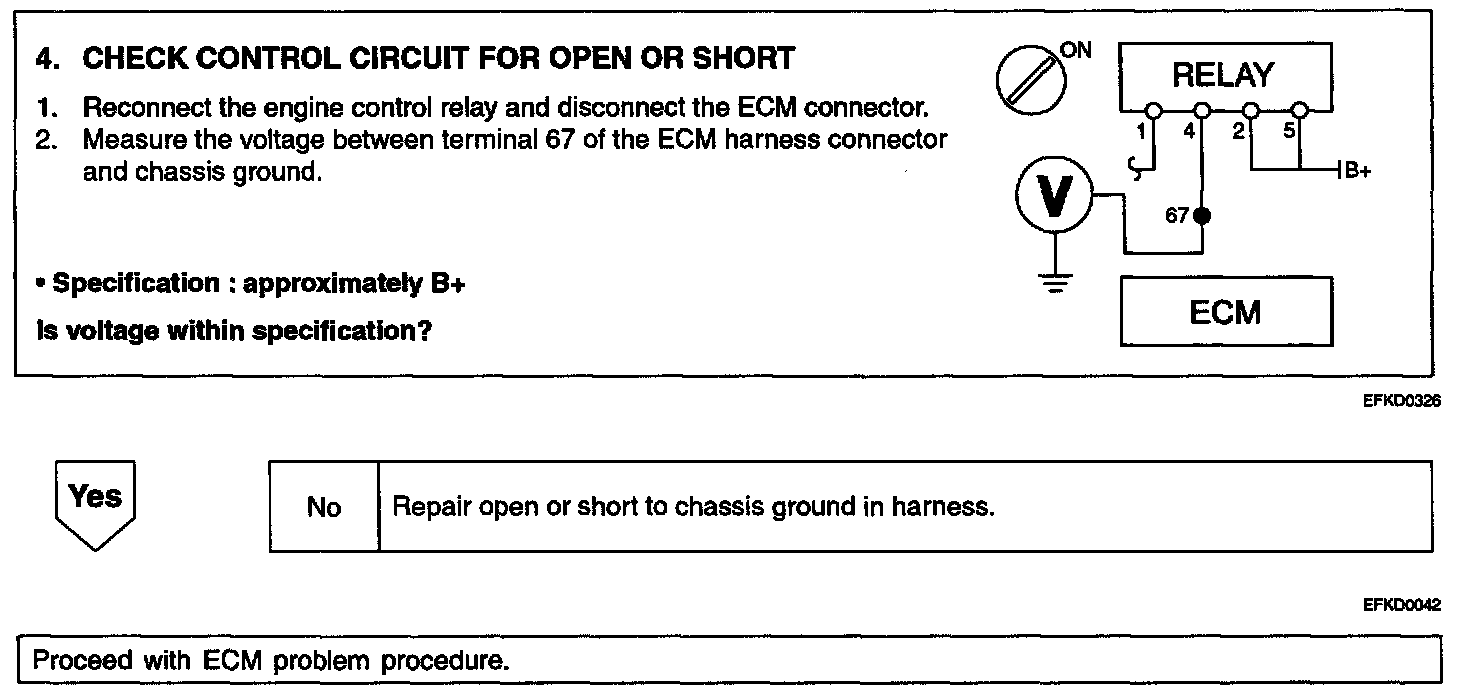

Step 4:

INSPECTION PROCEDURE
