P0506

****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****












DTC P0506 Idle Control System - RPM Lower Than Expected

DESCRIPTION

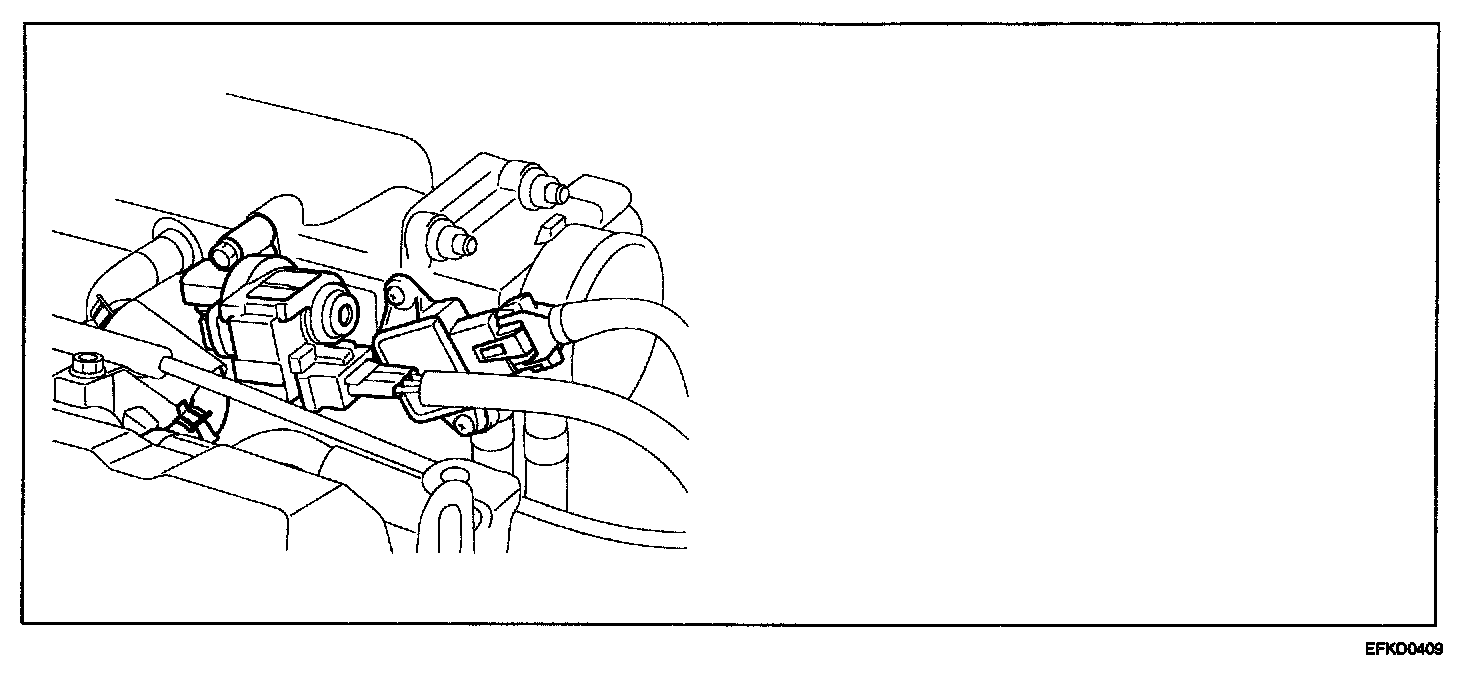

The Idle Speed Control Actuator (ISCA) is installed on the intake manifold and controls the intake airflow that is bypassed around the throttle plate to keep constant engine speed when the throttle valve is closed. The function of the ISCA is to maintain idle speed according to various engine loads and conditions, and also to provide additional air during starting. The ISCA consists of an opening coil, a closing coil, and a permanent magnet. Based on information from various sensors, the ECM controls both coils by grounding their control circuits. According to the control signals from the ECM, the valve rotor rotates to control the by pass airflow into the engine.

DTC Detecting Condition:

Specifications:

Schematic Diagram:

Signal Waveform:

Step 1 - 3:

Step 4 - 6:

Step 7:

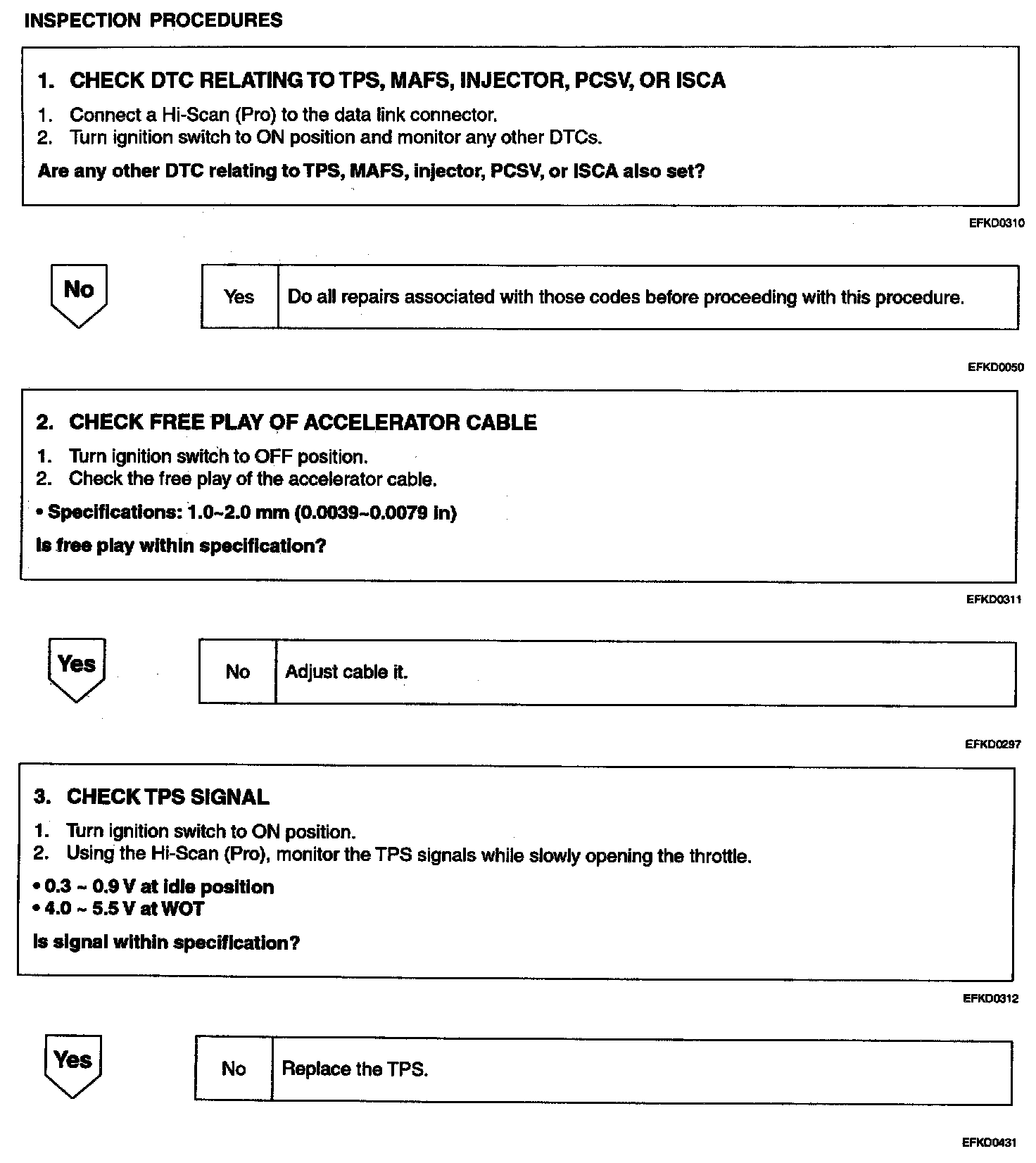

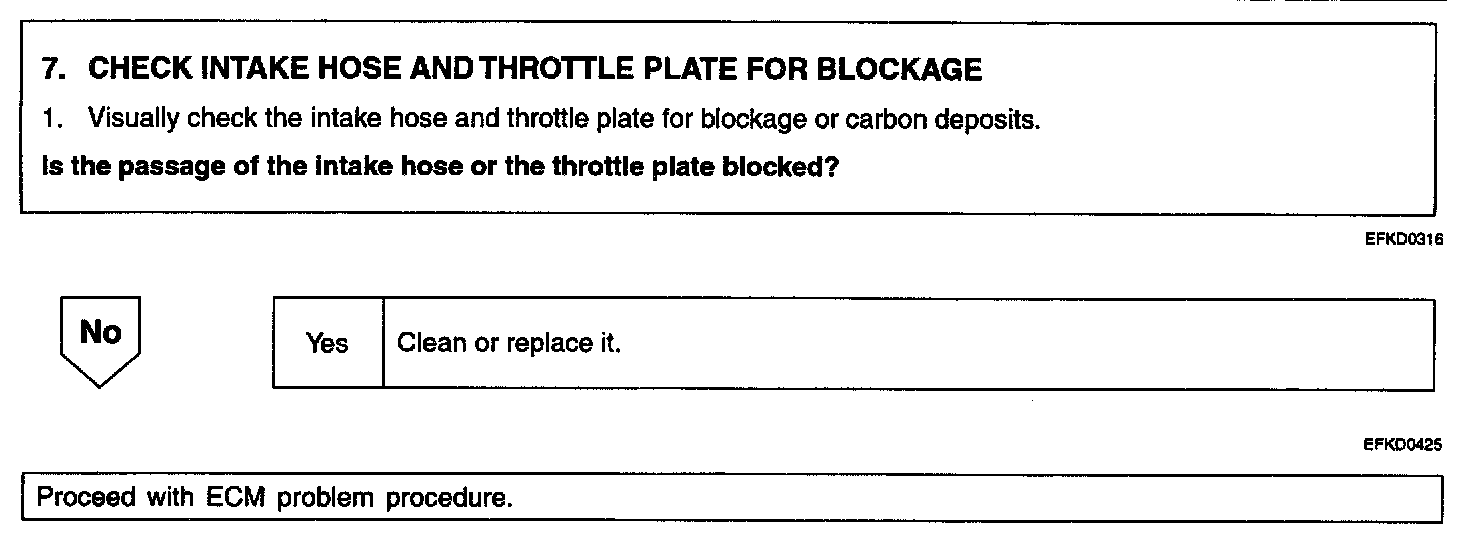

INSPECTION PROCEDURE
