P0501

DTC P0501 Vehicle Speed Sensor Range/Performance

DESCRIPTION
The Wheel Speed Sensor (WSS) generates a waveform with a frequency according to the speed of the vehicle. The signal generated by the WSS informs the ECM not only if the vehicle speed is low or high but also if the vehicle is stopped or not. The ECM uses this signal to control the fuel injection, ignition timing, transmission/transaxle shift scheduling and torque converter clutch scheduling. Also the WSS signal is used to detect rough road driving condition.

DTC Detecting Condition:

Specifications:

Schematic Diagram:

Step 1 - 3:

Step 4:

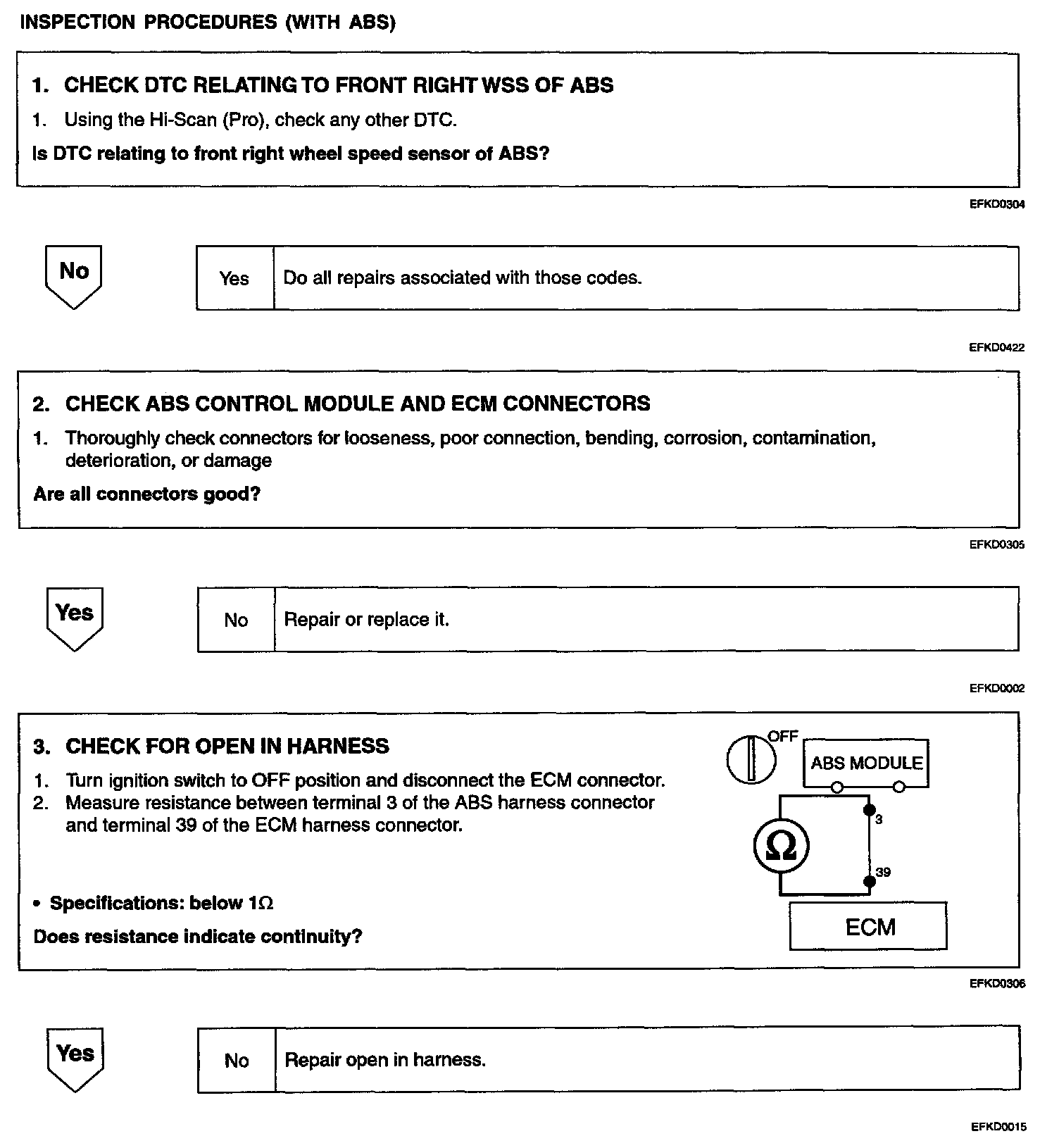

INSPECTION PROCEDURE (WITH ABS)

Step 1 - 3:

Step 4 - 6:

Step 6 (continued):

INSPECTION PROCEDURE (WITHOUT ABS)
