P0340

DTC P0340 Camshaft Position Sensor Circuit Malfunction

DESCRIPTION




The camshaft position sensor (CM PS) is a sensor that detects the compression TDC of the NO.1 cylinder. The CMPS consists of a hail type sensor and a target on the end of the intake camshaft. When the target triggers the sensor, the sensor voltage is 5 V. If not, the sensor voltage is 0 V. These CMPS signal is sent to the ECM and the ECM uses the CMPS signal for synchronizing the firing of sequential fuel injectors.

DTC Detecting Condition:

Schematic Diagram:

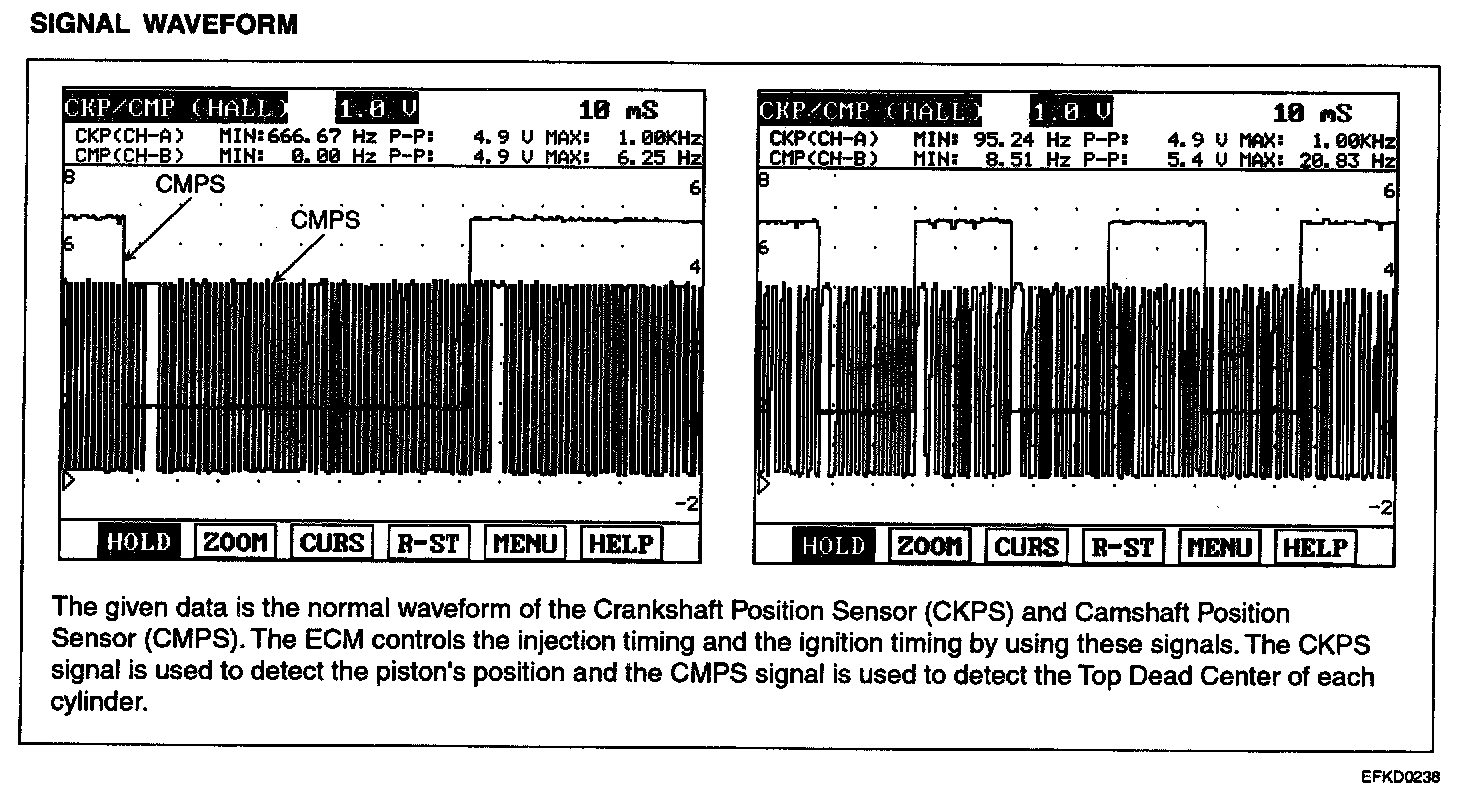

Signal Waveform:

Step 1 - 3:

Step 4 - 6:

INSPECTION PROCEDURE
