P0077
DTC P0077 Intake Valve Control Solenoid Circuit HighDESCRIPTION
The CVVT (Continuously Variable Valve Timing) system built on the camshaft helps the engine decrease the exhaust gas and increase engine power and fuel economy by changing the valve open/close timing of the intake camshaft continuously. The OCV (Oil-flow Control Valve), the main control part of the CVVT, changes the direction of the oil path through the CVVT by the duty control of the ECM and changes the open and close timing of the intake and exhaust valves.
DTC Detecting Condition:
Specifications:
Schematic Diagram:
Signal Waveform:
Step 1 - 2:

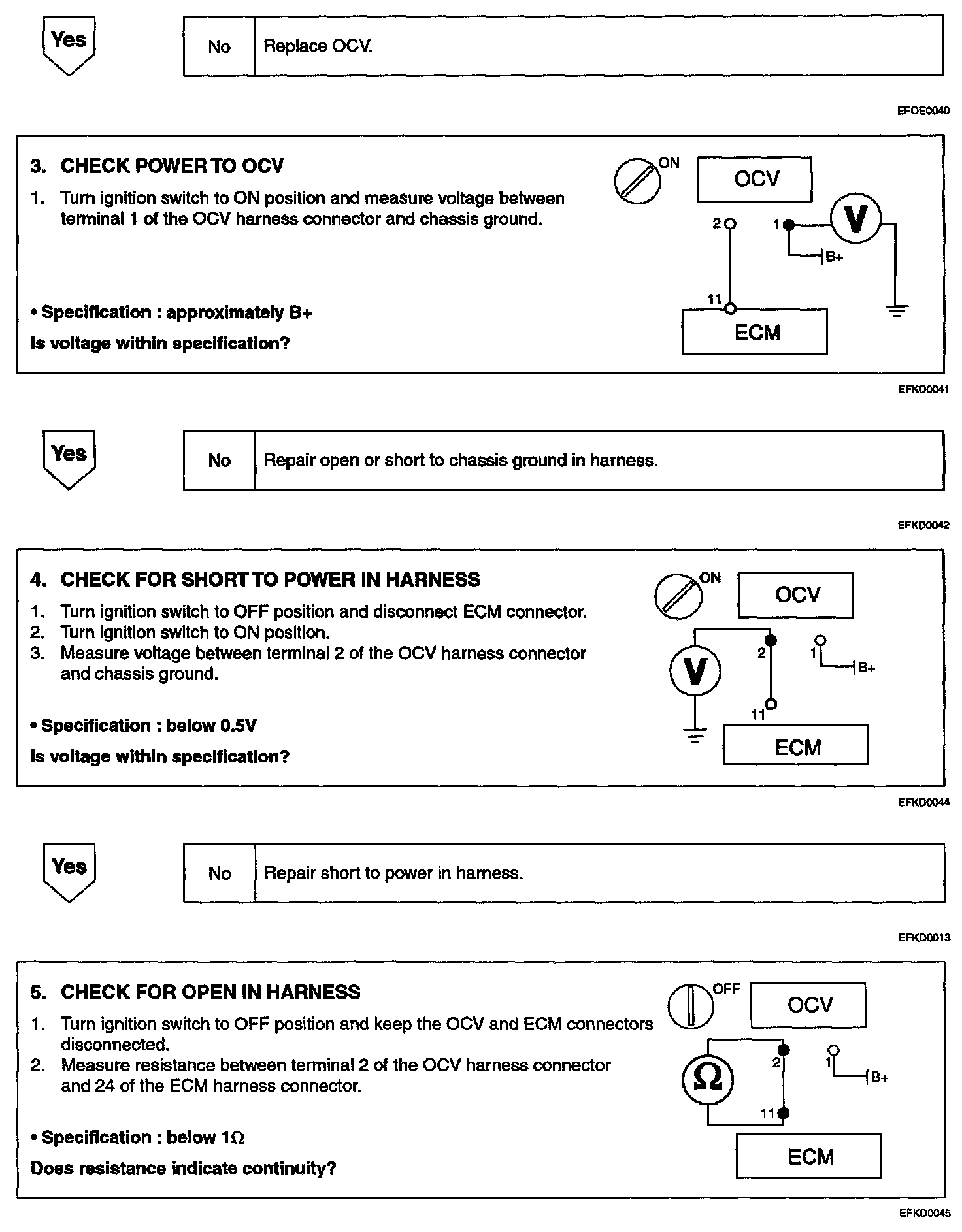

Step 3 - 5:
Step 5 (continued):
INSPECTION PROCEDURE
