Front Wiper Motor

REMOVAL

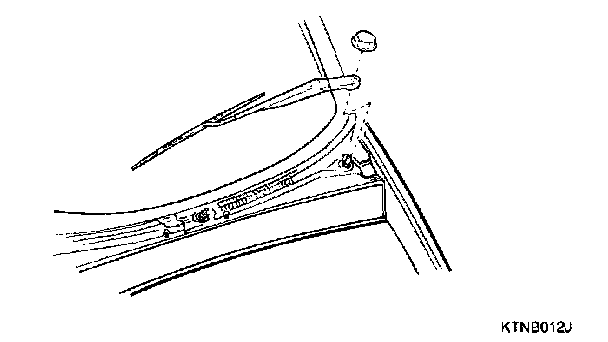

1. Remove the wiper arm.

NOTE: Care must be taken not to scratch the engine hood.

Tightening torque: 23-28 Nm (230-280 kg.cm, 16.9-20.6 lb.ft)

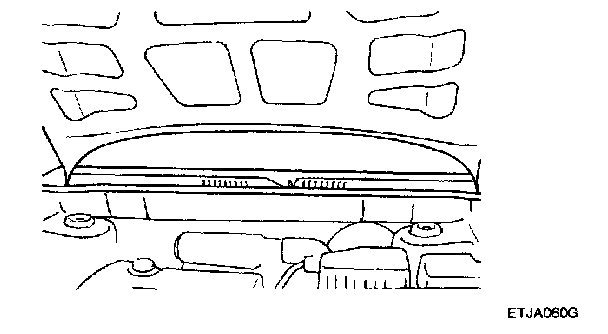

2. Remove the weatherstrip and cowl top cover after removing the retainers.

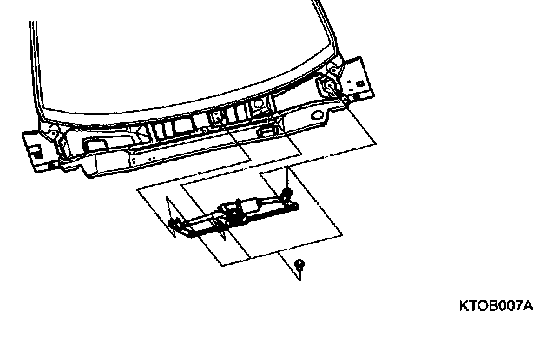

3. Disconnect the windshield wiper motor connector and remove the 3 bolts holding the windshield wiper motor and linkage assembly.

Tightening torque: 7-11 Nm (70-110 kg.cm, 5.1-8.0 lb.ft)

4. Installation is the reverse of removal.

INSTALLATION

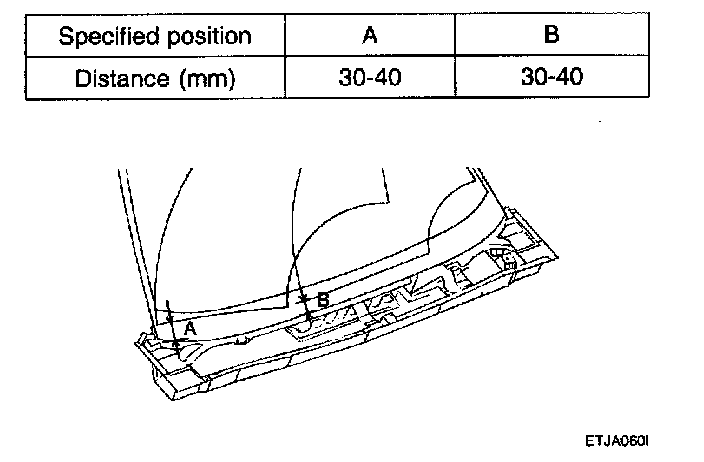

1. Install the wiper arm to the specified position.

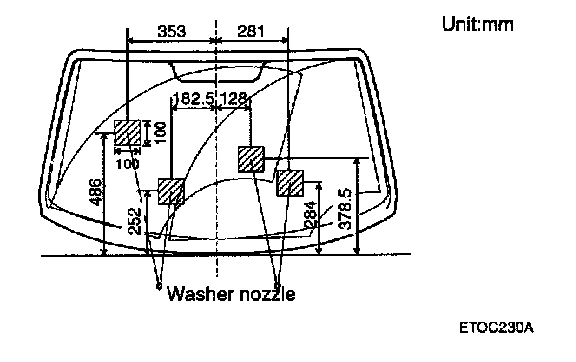

2. Set the washer nozzle an the specified spray position.
