Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Flow of Diagnosis

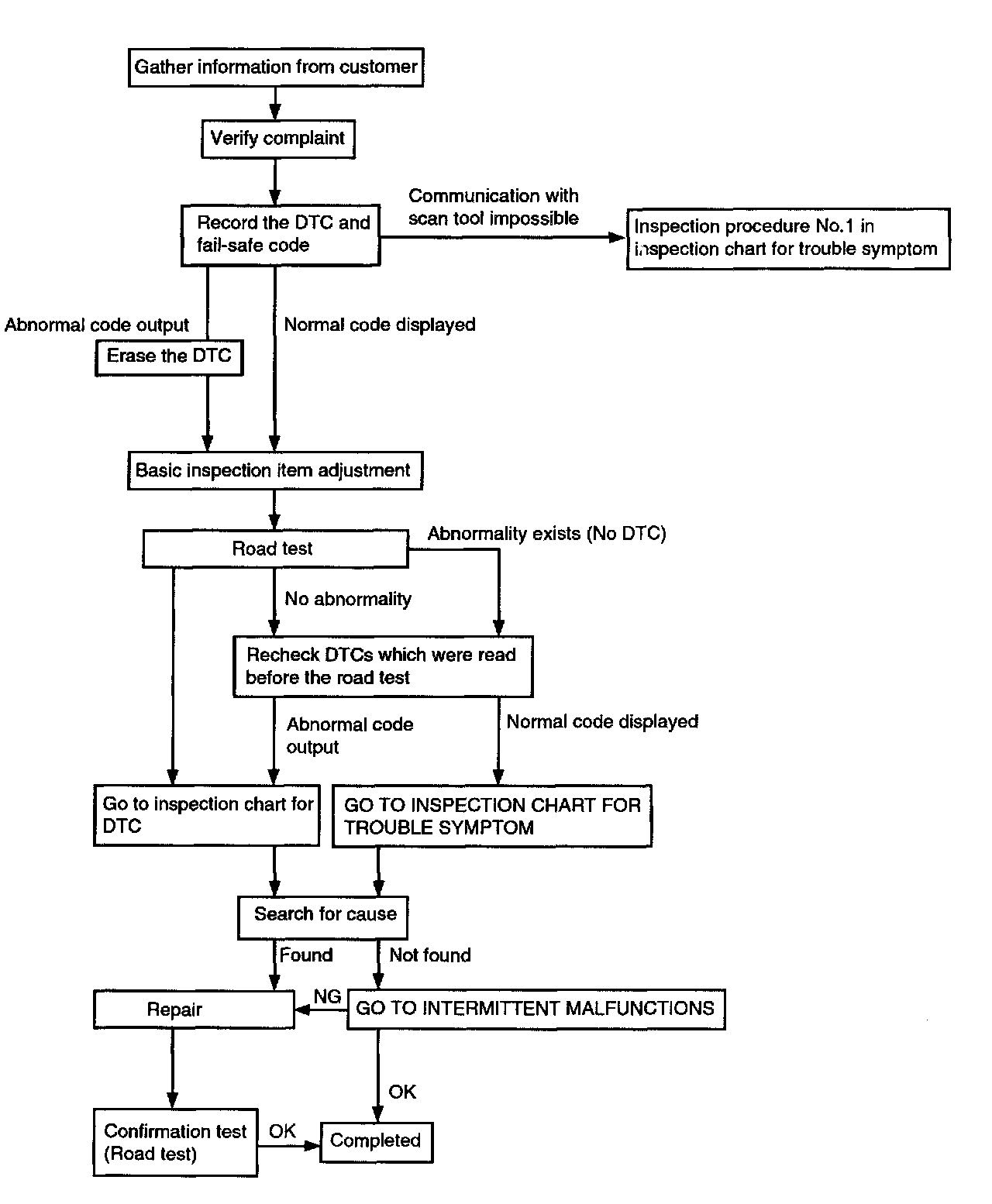

Flow of Diagnosis

TROUBLESHOOTING (A/T)





(F4A42 MODEL)
