Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Adjustments >> Selection of Shim

Selection of Shim

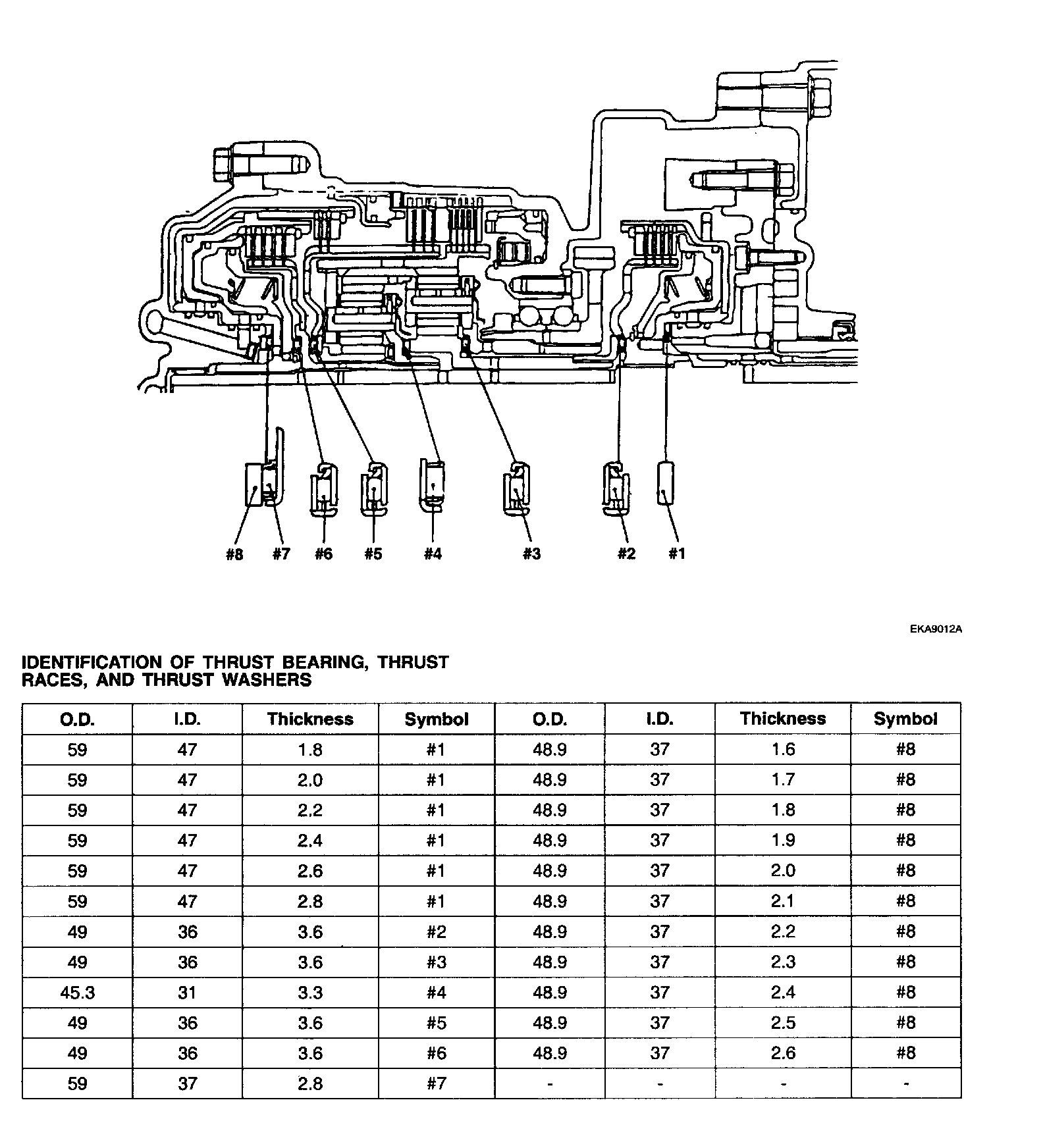

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS
