Disassembly and Reassembly

REASSEMBLY OF THE STOP RING AND SNAP RING




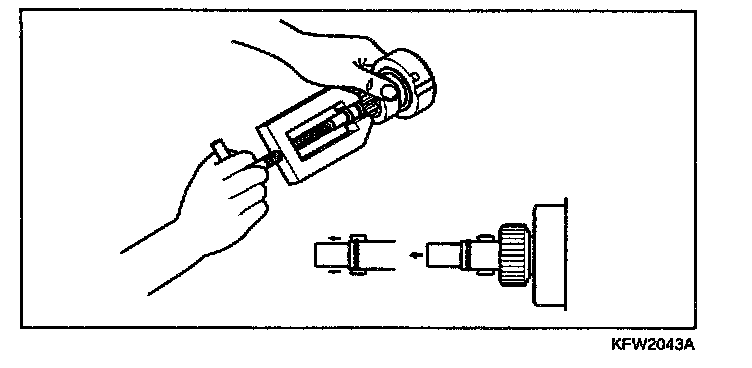

Using a suitable pulling tool, pull the overrunning clutch stop ring over the snap ring.

REPLACEMENT OF BRUSHES AND SPRINGS
1. Brushes that are worn out, or oil-soaked, should be replaced.




2. When replacing field coil brushes, crush worn out brushes with pliers, taking care not to damage the pigtail.
3. Sand the pigtail end with sandpaper to ensure good soldering.
4. Insert the pigtail into the hole provided in the new brush and solder it. Make sure that the pigtail and excess solder do not come out onto the brush surface.




5. When replacing the ground brush, slide the brush from the brush holder by prying the retaining spring back.

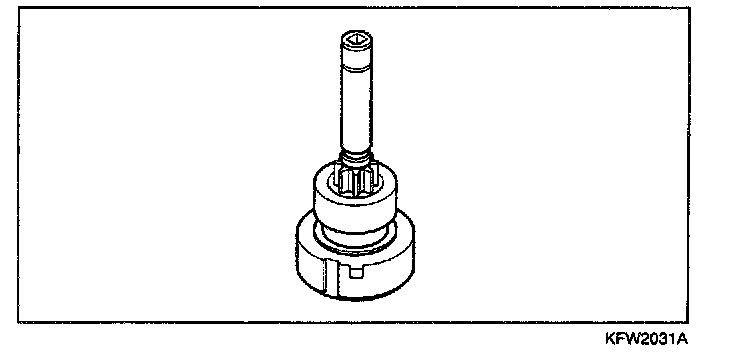

REMOVAL OF THE SNAP RING AND STOP RING




1. Press the stop ring using a socket.

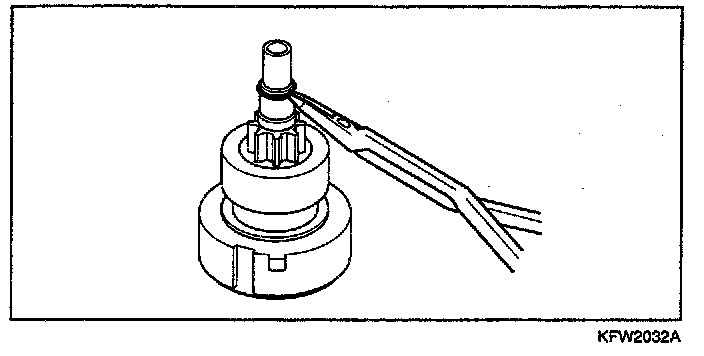

2. After removing the snap ring (using snap-ring pliers), remove the stop ring and the overrunning clutch.
