Passenger Compartment Fuse Details (6)

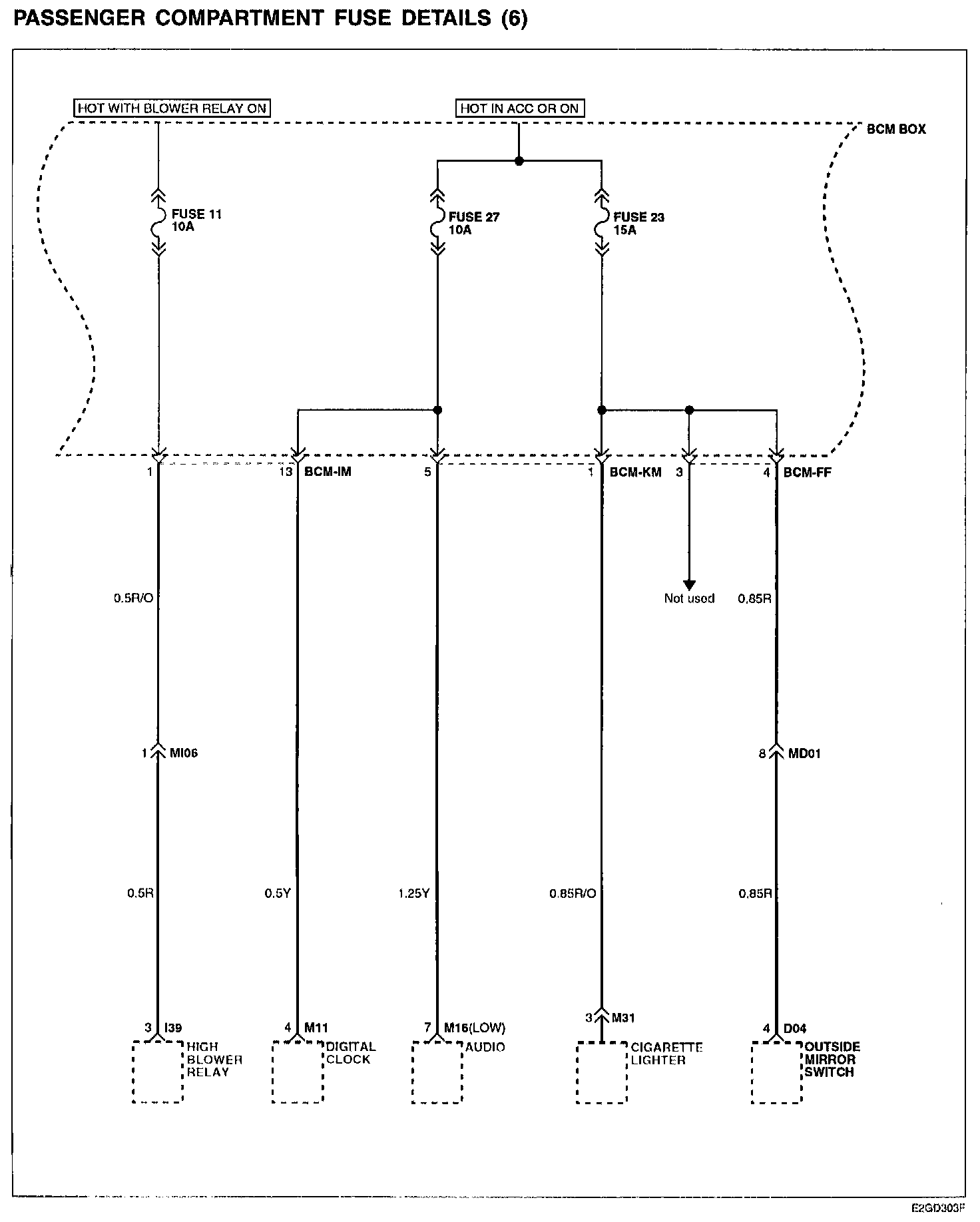

Passenger Compartment Fuse Details (6):

Next Diagram Passenger Compartment Fuse Details (7)

Previous Diagram Passenger Compartment Fuse Details (5)

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
