Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
System Specifications

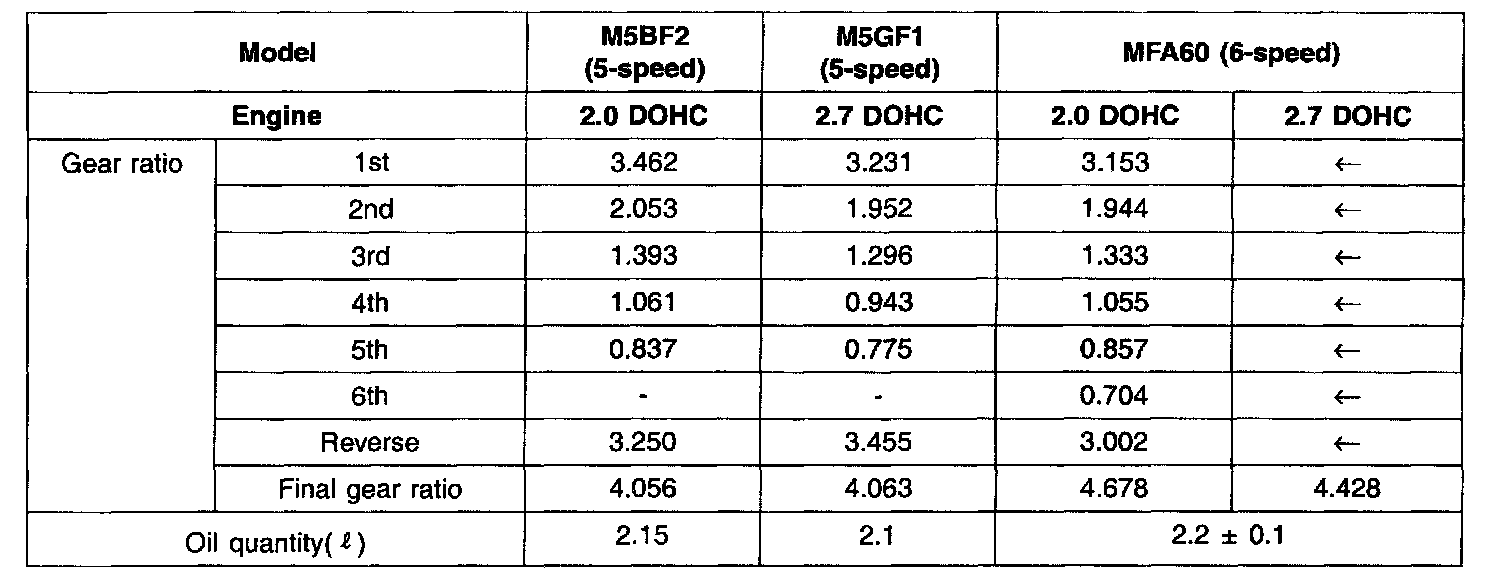

SPECIFICATIONS (M/T)

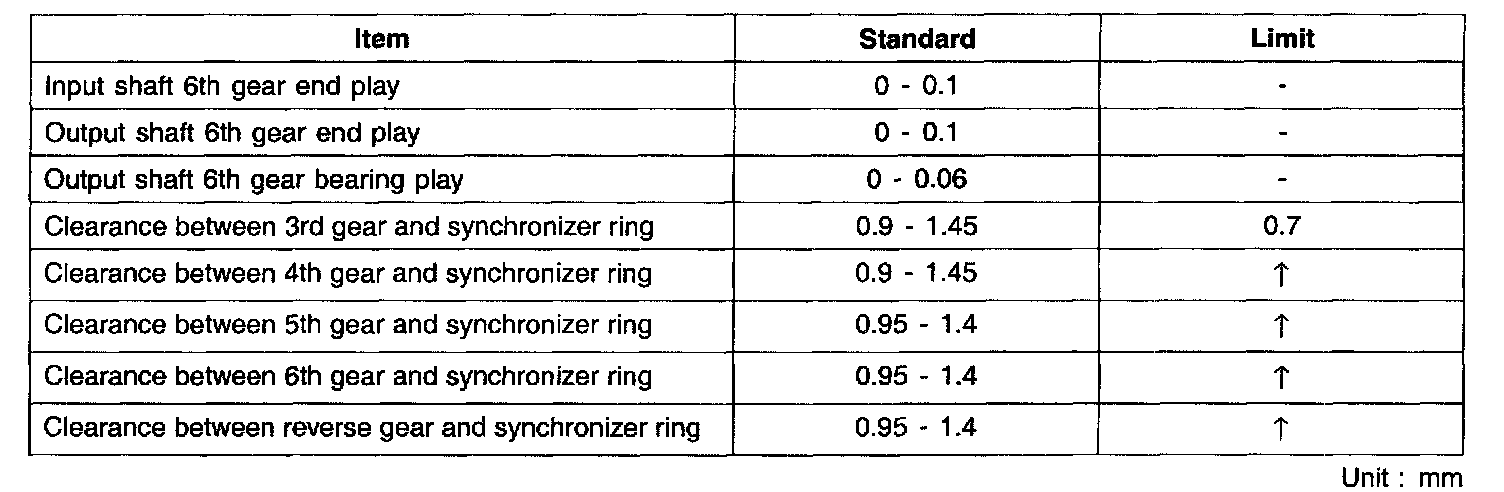

SERVICE STANDARD
(6-SPEED M/T)

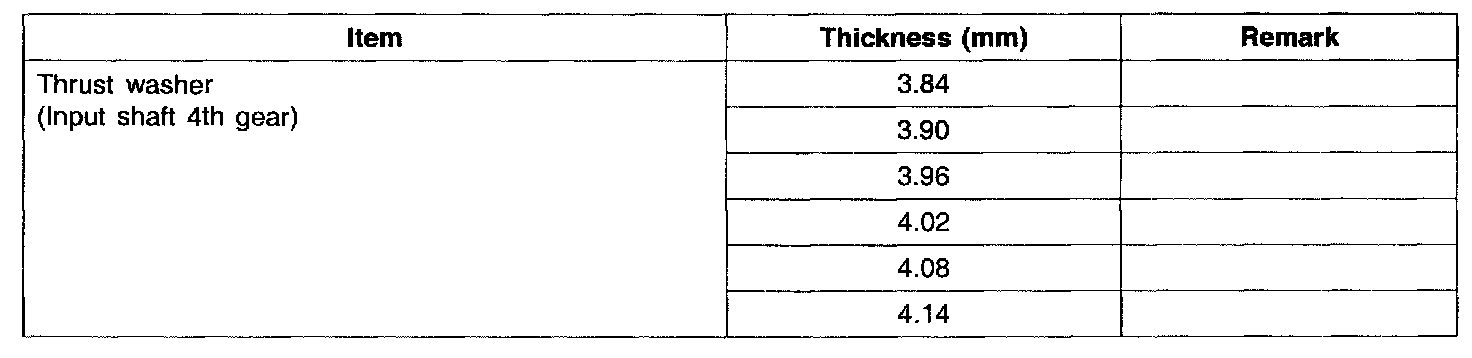

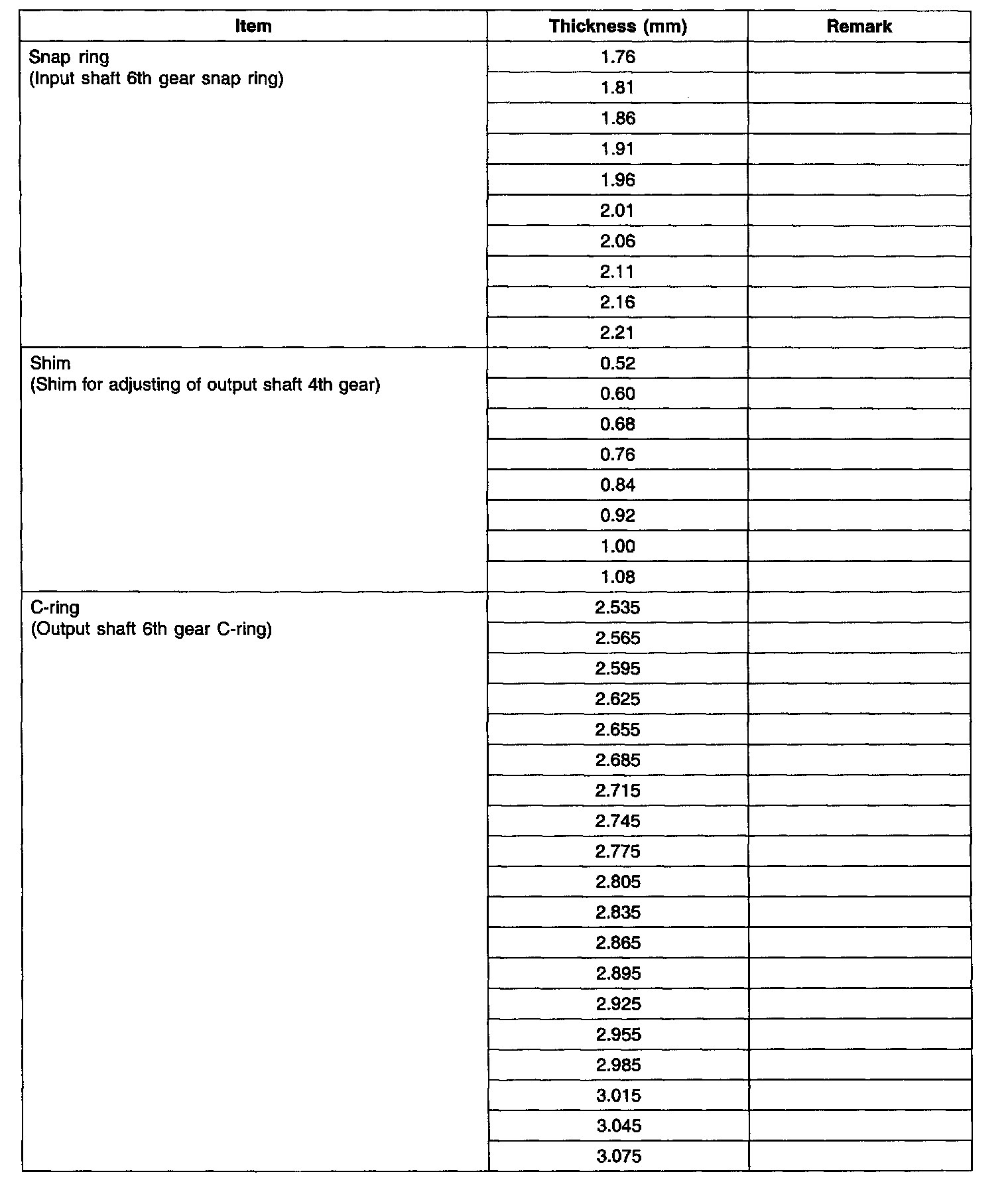

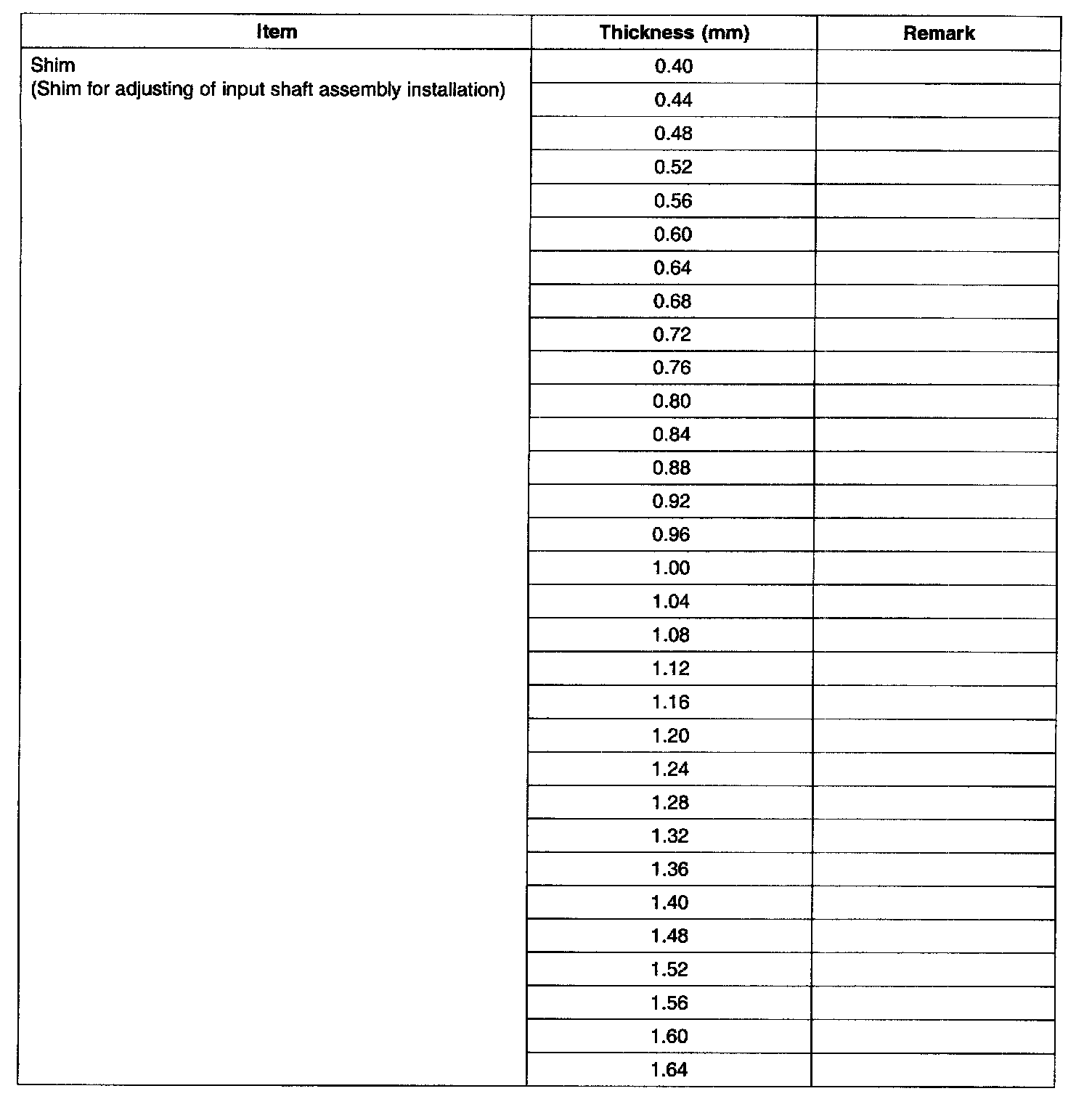

SPACER (6-SPEED M/T)

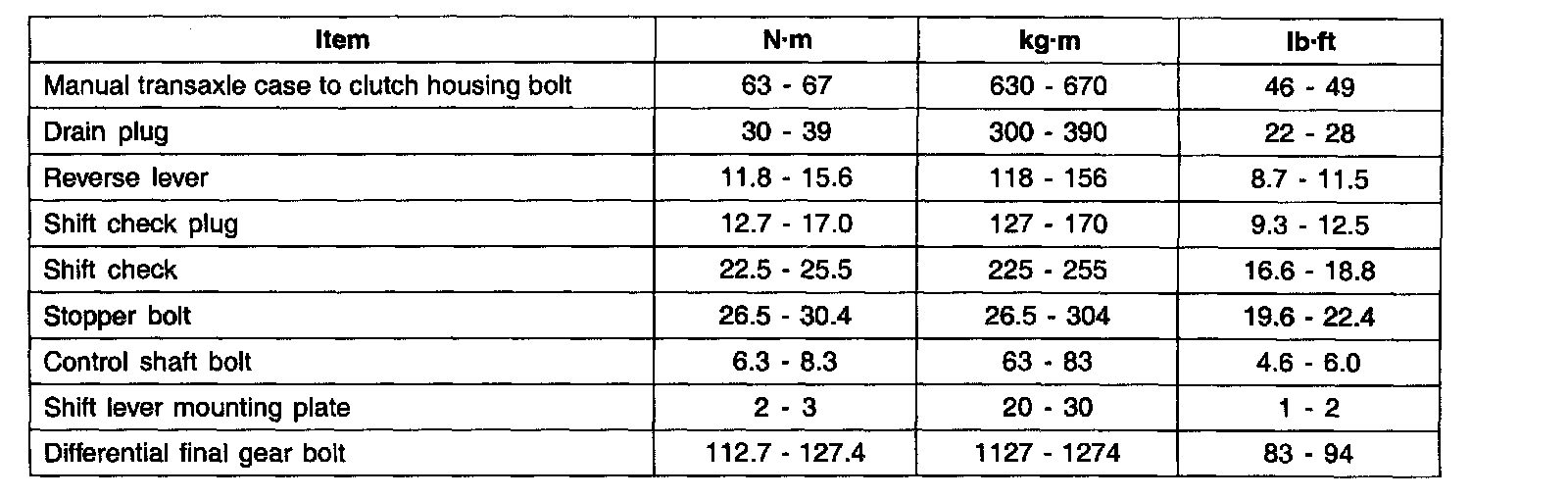

TIGHTENING TORQUE (6-SPEED M/T)
