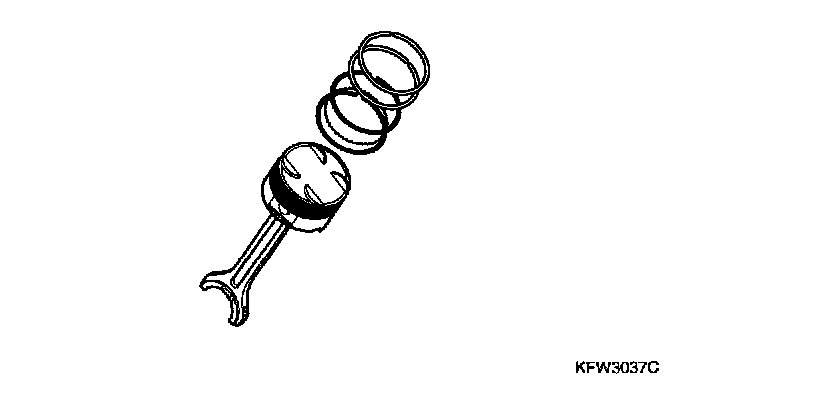

Piston

PISTON 2.0L:

Piston ring side clearance
No. 1: ...........0.04 - 0.08 mm (0.0016 - 0.0031 inch)
No. 2: ...........0.03 - 0.07 mm (0.0012 - 0.0028 inch)
Limit
No. 1: ...........0.1 mm (0.004 inch)
No. 2: ...........0.1 mm (0.004 inch)

Piston ring end gap [Standard]
No. 1: ...........0.23 - 0.38 mm (0.0091 - 0.0150 inch)
No. 2: ...........0.33 - 0.48 mm (0.0130 - 0.0189 inch)
Oil ring: ...........0.20 - 0.60 mm (0.0079 - 0.0236 inch)
[Limit]
No. 1, 2 oil ring: ...........1.0 mm (0.039 inch)

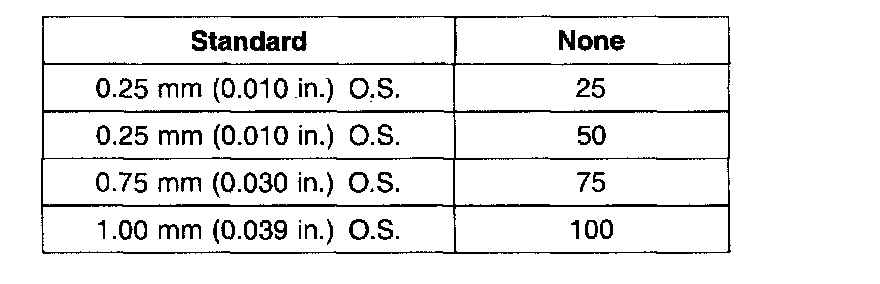

PISTON RING SERVICE SIZE AND MARK:

NOTE: The mark can be found on the upper side of the ring next to the end.


Connecting rod side clearance
Standard: ...........0.10 - 0.25 mm (0.0039 - 0.0098 inch)
Limit: ...........0.4 mm (0.0157 inch)
