Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Flywheel

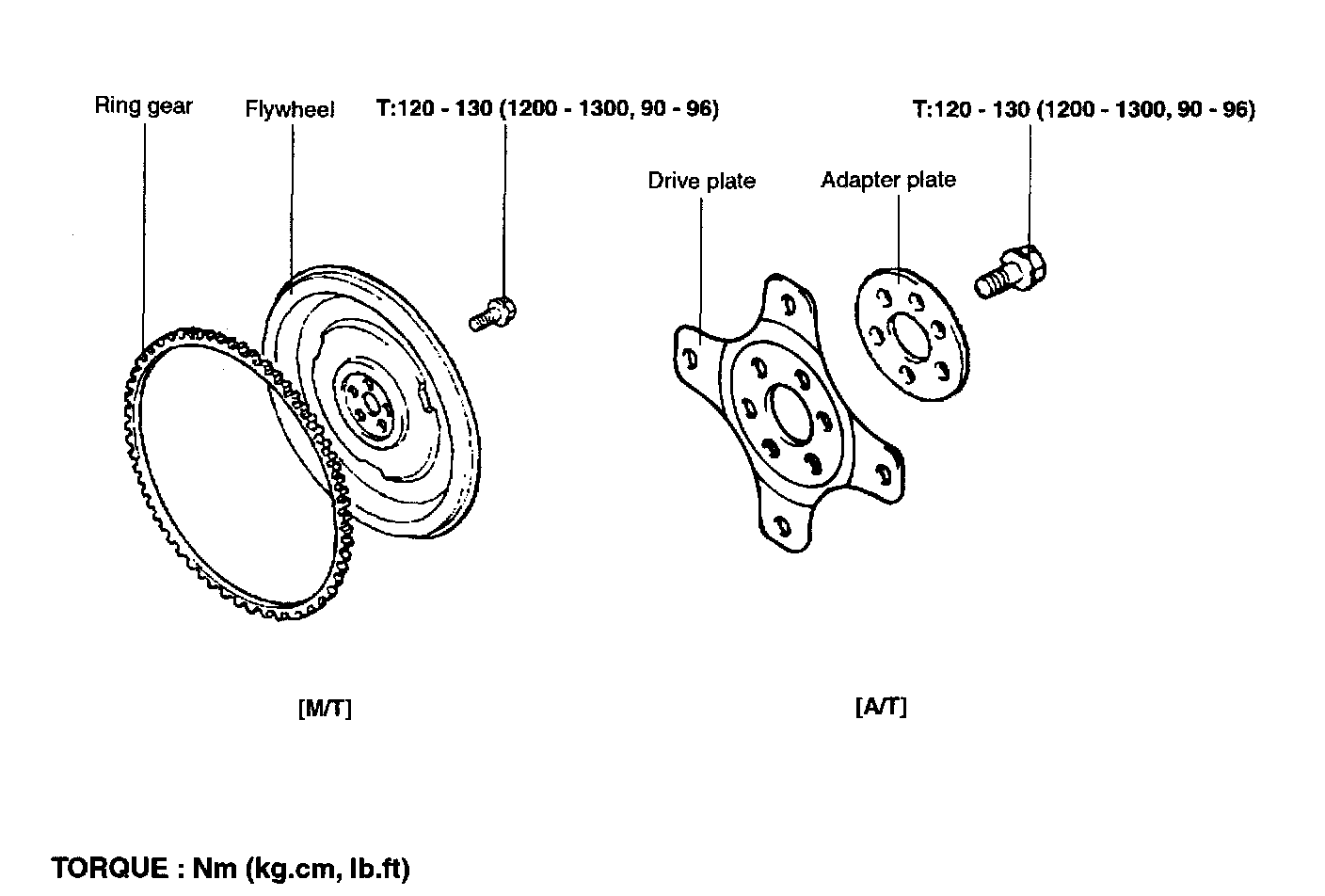

Flywheel



FLYWHEEL 2.0L:






Flywheel run - out: .............0.1 mm (0.004 inch)

Flywheel bolt: .............120 -130 Nm (1200 -1300 kg.cm, 90 - 96 ft. lbs.)
