Engine Mounts

ENGINE MOUNTS 2.0L:

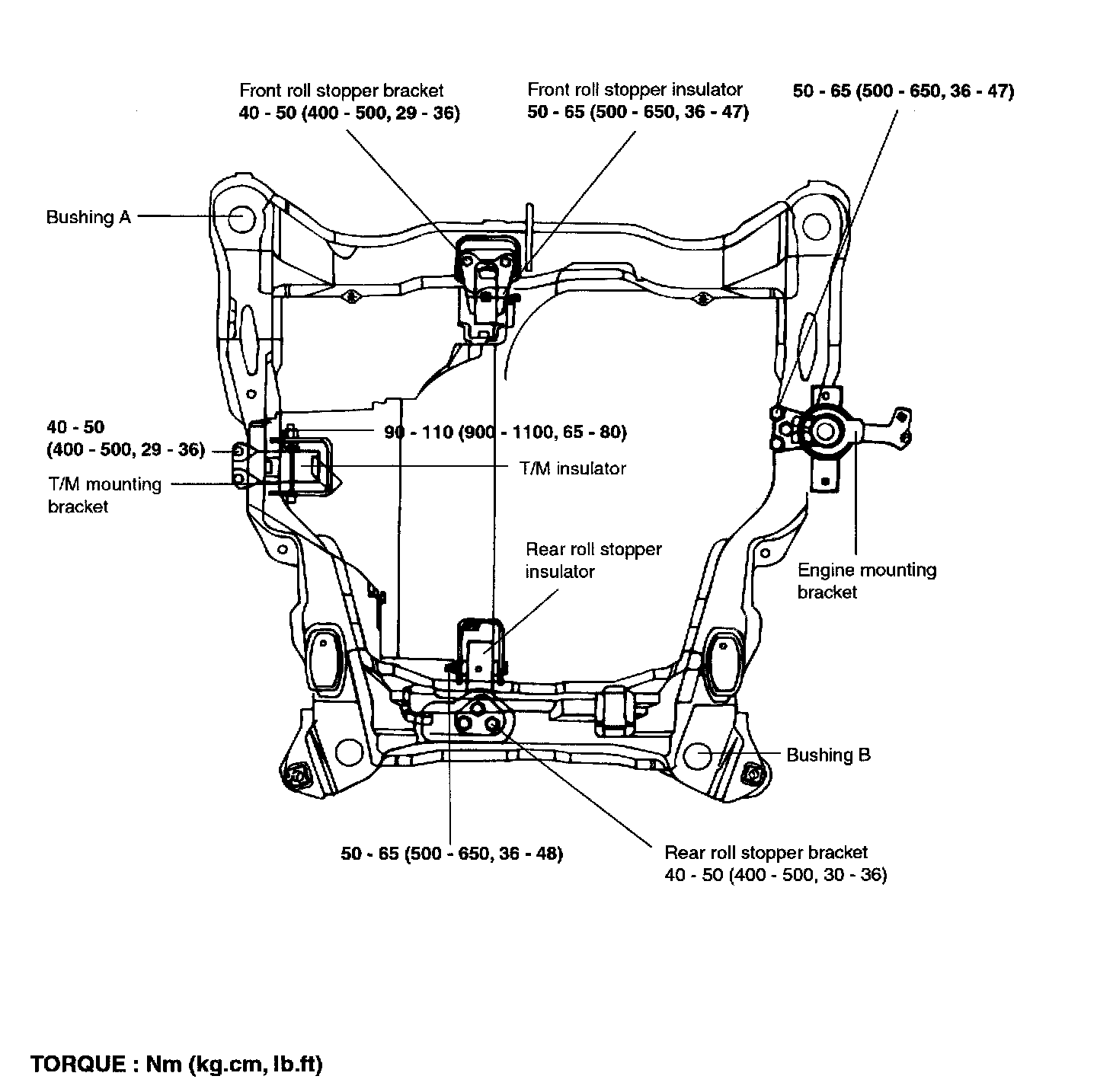

Engine Mounting
Right mounting insulator (large) nut:..........90-110 Nm (900-1100 kg-cm, 65-80 ft. lbs.)
Right mounting insulator (small) nut:..........45-60 Nm (450-600 kg-cm, 33-44 ft. lbs.)
Right mounting bracket to engine nuts and bolts:..........50-65 Nm (500-650 kg-cm, 36-48 ft. lbs.)
Transmission mount insulator nut:..........90-110 Nm (900-1100 kg-cm, 65-80 ft. lbs.)
Transmission insulator bracket to side member bolts:..........40-50 Nm (400-500 kg-cm, 30-36 ft. lbs.)
Rear roll stopper insulator nut:..........50-65 Nm (500-650 kg-cm, 36-48 ft. lbs.)
GRear roll stopper bracket to center member bolts:..........40-50 Nm (400-500 kg-cm, 30-36 ft. lbs.)
Front roll stopper insulator nut:..........50-65 Nm (500-650 kg-cm, 36-48 ft. lbs.)
Front roll stopper bracket to center member bolts:..........40-50 Nm (400-500 kg-cm, 30-36 ft. lbs.)
