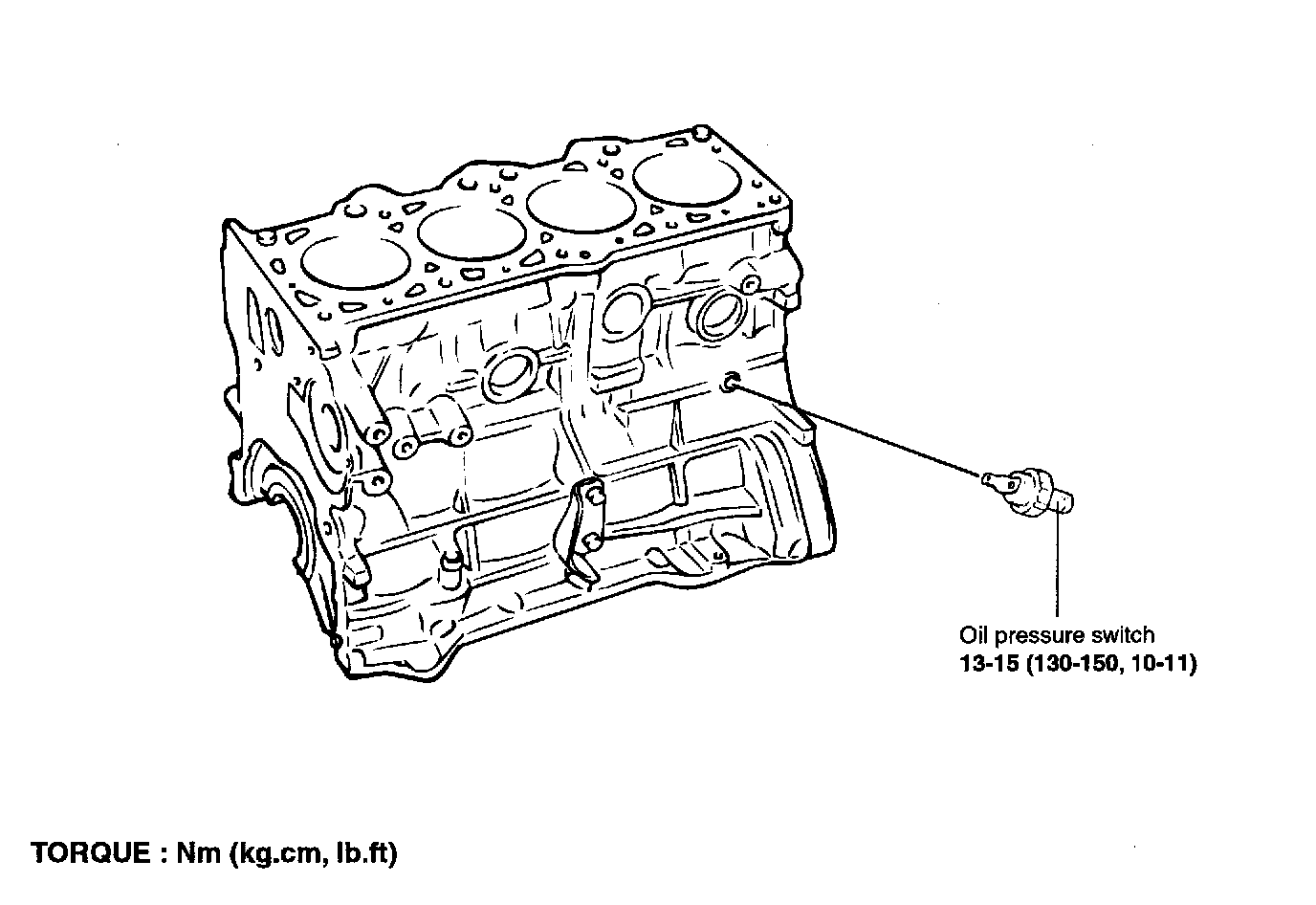

Engine Block

ENGINE BLOCK 2.0L:

Warpage
Standard: ...........0.03 mm (0.0012 inch) or less
Limit: ...........0.1 mm (0.0039 inch) or less


Cylinder bore
Cylinder I.D.: ...........82 mm (3.228 inch)
Cylinder I.D. taper: ...........0.01 mm (0.0004 inch) or less


Piston service size and mark mm (in.)
0.25 (0.010) O.S.: 0.25
0.50 (0.020) O.S.: 0.50
0.75 (0.030) O.S.: 0.75
1.00 (0.039) O.S.: 1.00

Piston - to - cylinder clearance (To set limits to new parts) ...........0.02 - 0.04 mm (0.0008 - 0.0016 inch)
