Crankshaft

CRANKSHAFT 2.0L:

Crankshaft journal O.D.: ...........57 mm (2.2440 inch)
Crankshaft pin O.D.: .............45 mm (1.7717 inch)
Crankshaft journal, pin out-of-round and taper............. 0.01 mm: (0.0004 inch) or less


Main bearing oil clearance: ..................0.028 - 0.048 mm (0.0011 - 0.0019 inch)
Connecting rod bearing oil clearance: (To set limits to new parts)......................... 0.024 - 0.044 mm (0.0009 - 0.0017 inch)

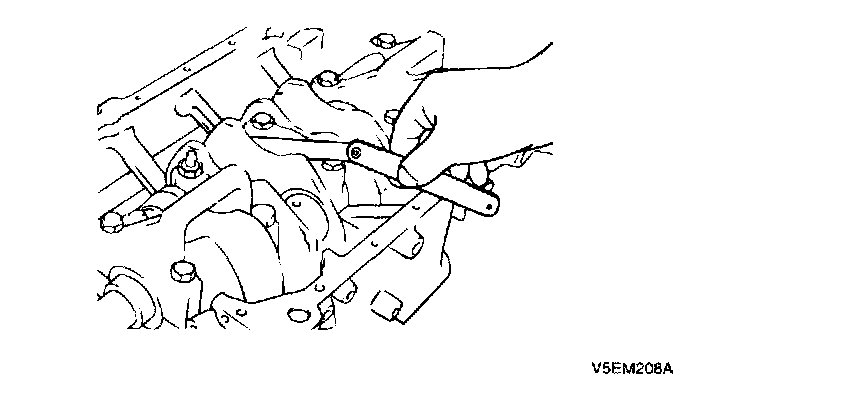

crankshaft end play
Standard value: ...............0.06 - 0.26 mm (0.0023 - 0.010 inch)
Limit: ..................0.30 mm (0.0118 inch)


Clearance between crankshaft sensor wheel and crank position sensor: ................0.5 - 1.1 mm (0.020 - 0.043 inch)


Main bearing cap bolt: ........27 - 33 Nm (270 - 330 kg.cm, 20 - 24 ft. lbs.) + (60° - 65°)
Connecting rod cap bolt: ..........50 - 53 Nm (500 - 530 kg.cm, 37 - 39 ft. lbs.)


Crankshaft end play: ..............0.06 - 0.260 mm (0.0024 - 0.0102)
Connecting rod end play: ...............0.10 - 0.25 mm (0.0039 - 0.0098 inch)
