Cooling System

Cooling Method; Water-cooled, pressurized, Forced circulation with electrical fan

Radiator Type Pressurized Corrugated Fin Type



Alternator support bolt and nut.....20-25 Nm (200-250 kg-cm, 14-18 ft. lbs.)
Alternator lock bolt.....12-15 Nm (120-150 kg-cm, 9-11 ft. lbs.)
Alternator brace mounting bolt.....20-27 Nm (200-270 kg-cm, 15-20 ft. lbs.)

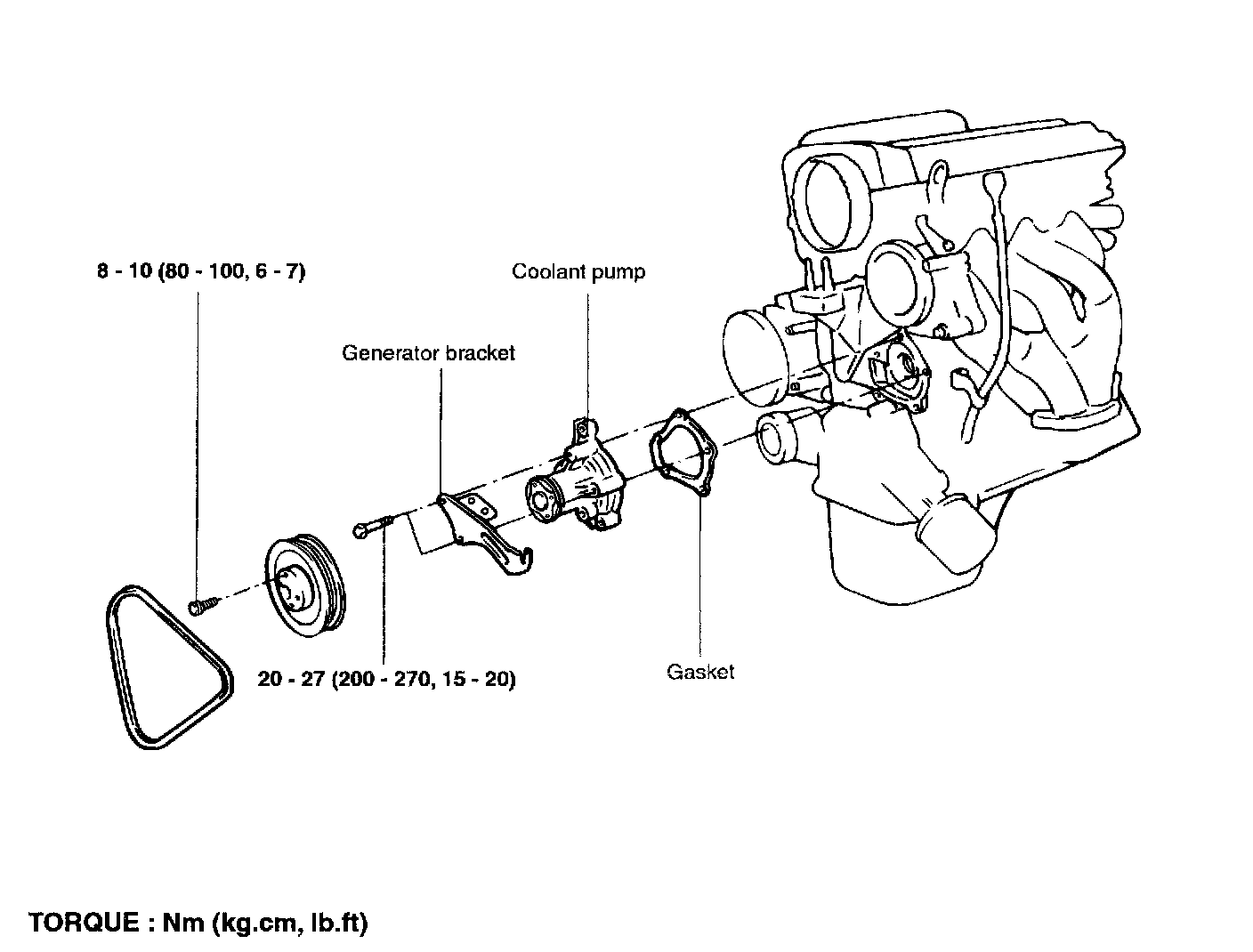

COOLANT PUMP

ENGINE COOLANT PUMP 2.0L:

Coolant Pump Type Centrifugal type impeller
Coolant pump pulley bolts 8-10 Nm (80-100 kg-cm, 6-7 ft. lbs.)
Coolant pump bolts 20-27 Nm (200-270 kg-cm, 14-19 ft. lbs.)

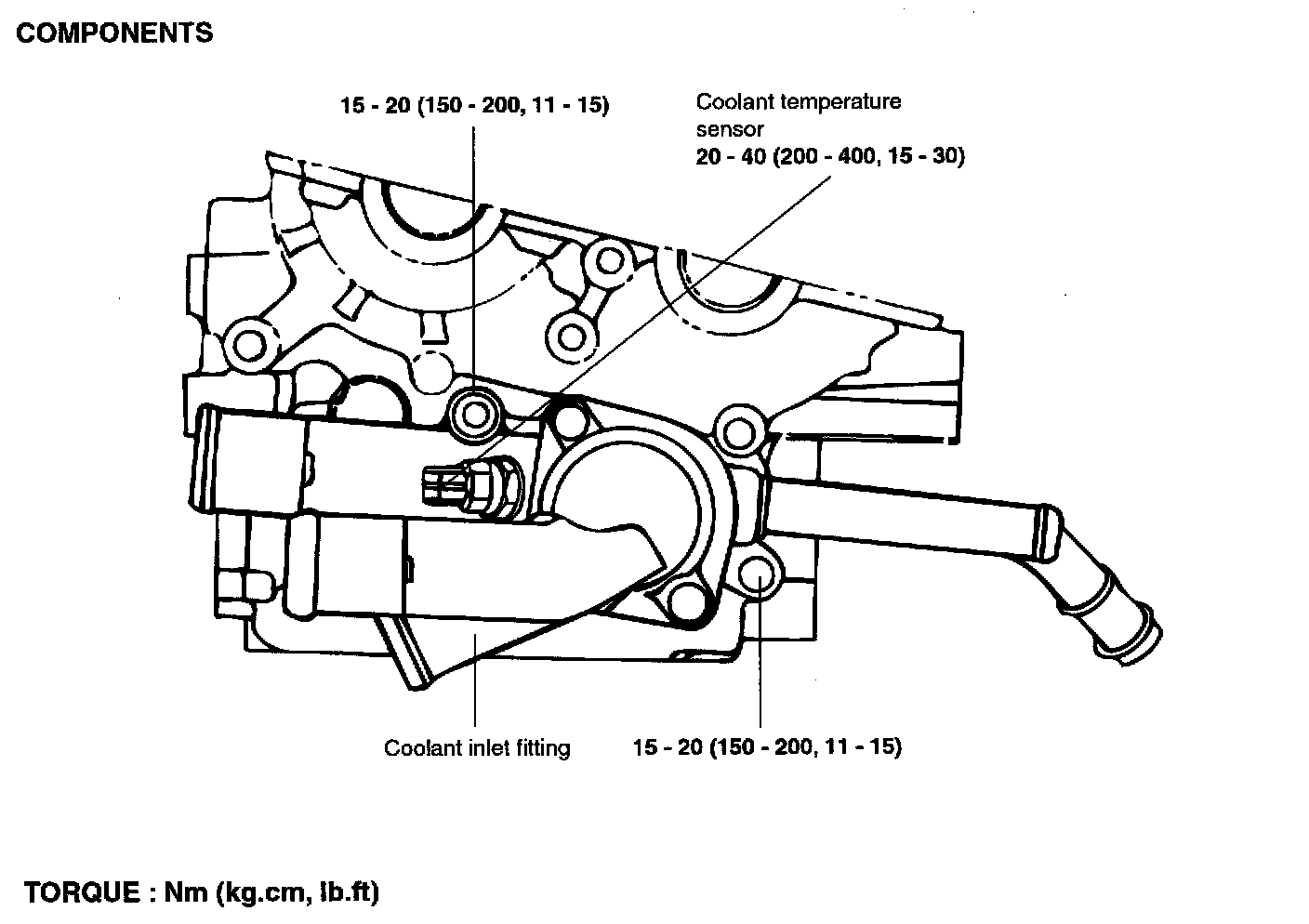

THERMOSTAT

THERMOSTAT 2.0L:

Thermostat Type Wax pellet type with jiggle valve


Thermostat housing bolts and nuts 15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)

Coolant temperature sensor.....20-40 Nm (200-400 kg-cm, 15-30 ft. lbs.)


ENGINE COOLANT HOSE/PIPES

ENGINE COOLANT HOSE/PIPES 2.0L:

Coolant inlet fitting nuts......15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)
