Turn Signal Switch: Testing and Inspection
INSPECTION

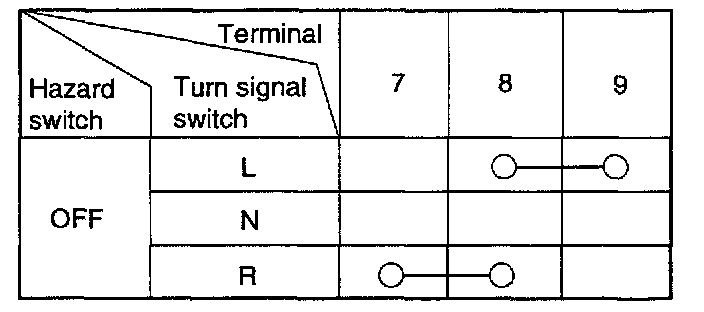

Check the continuity between the terminals while operating the switch.
Turn Signal And Lane Change Switch [M01-2]:
