Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Locations

Combination Switch: Locations

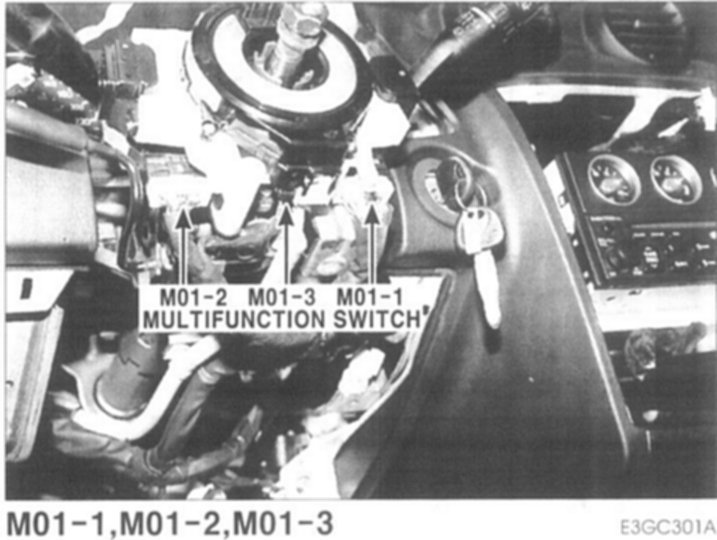

M01-1, M01-2, M01-3:

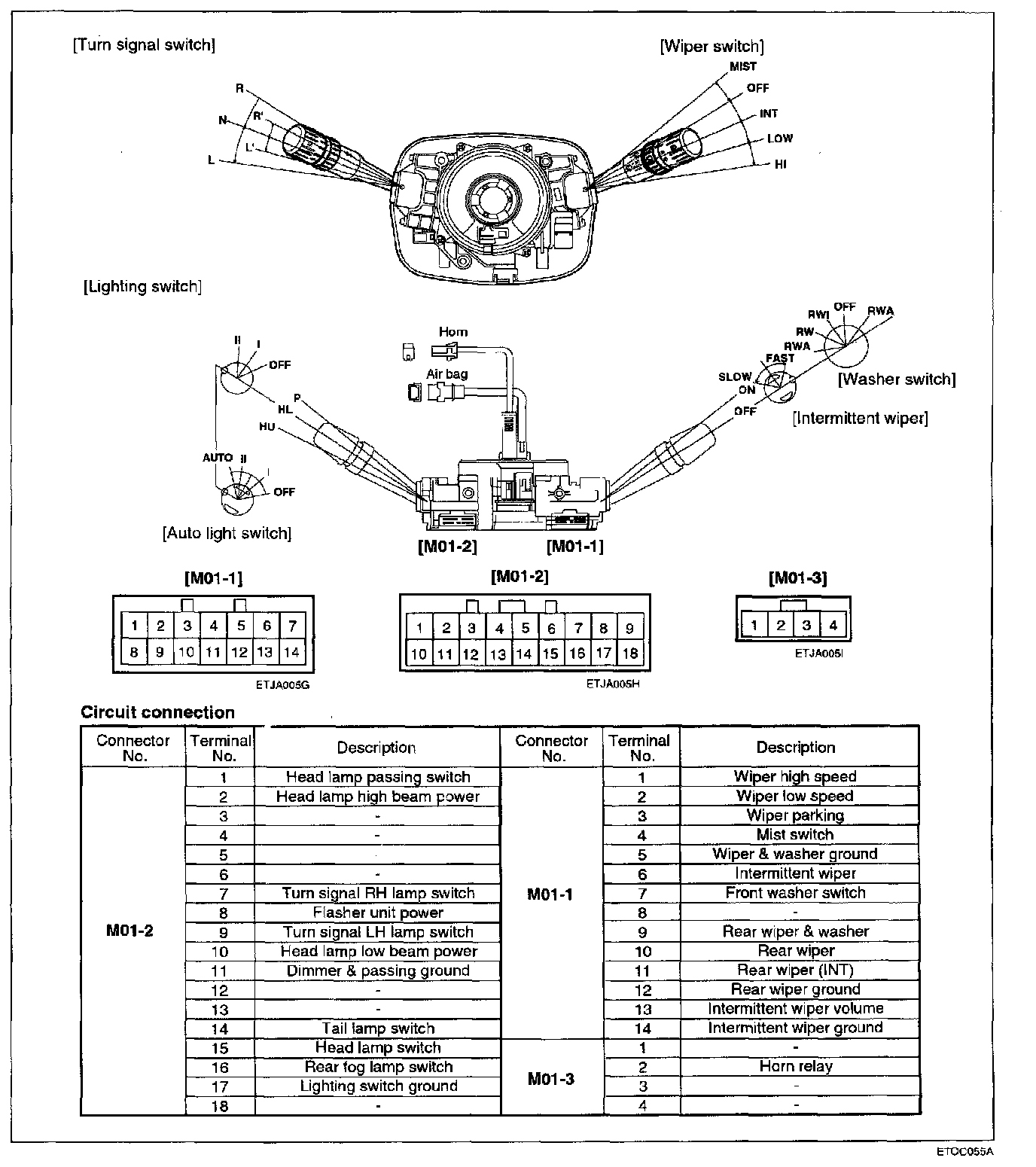

Components (With AIR BAG):
