Fuel Gauge Sender: Testing and Inspection
FUEL SENDER

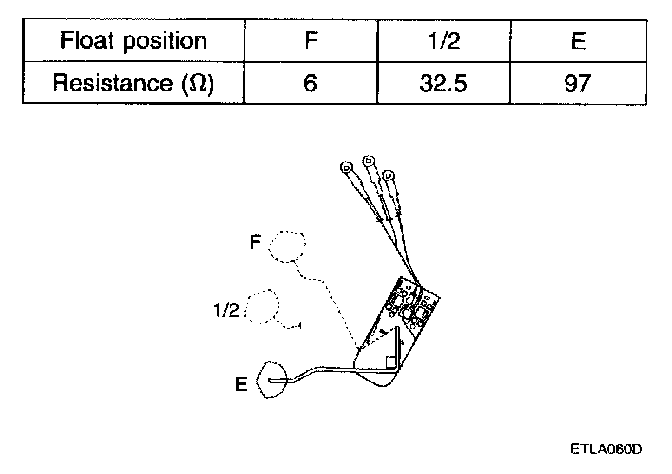

1. Using an ohmmeter, measure the resistance between terminals 1 and 3 at each float level.
2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".
1. Using an ohmmeter, measure the resistance between terminals 1 and 3 at each float level.
2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".
