Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Brake Switch (Cruise Control) >> Testing and Inspection

Brake Switch (Cruise Control): Testing and Inspection

Stop Lamp Switch:




STOP LAMP SWITCH

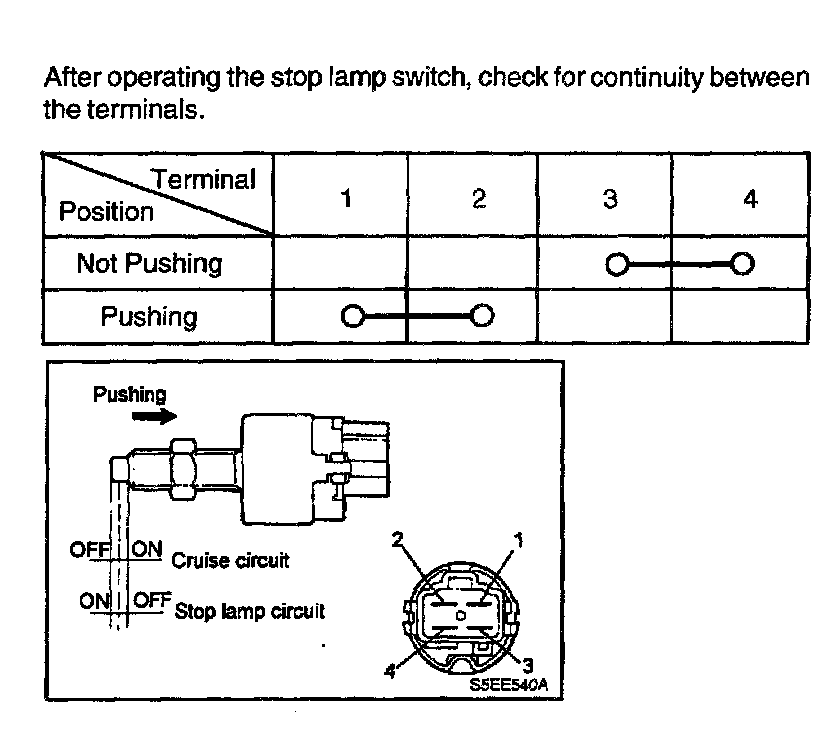

After operating the stop lamp switch, check for continuity between the terminals.
