Air Bag Control Module: Diagrams

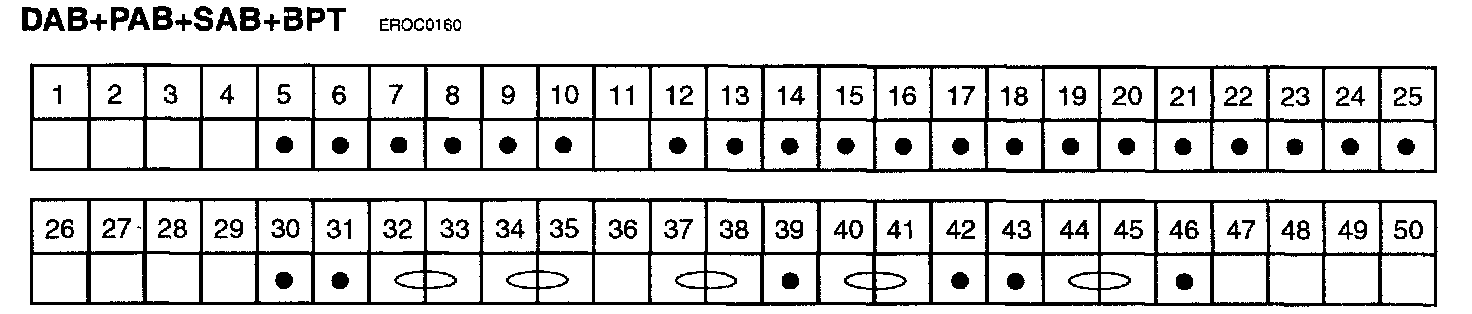

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 50:

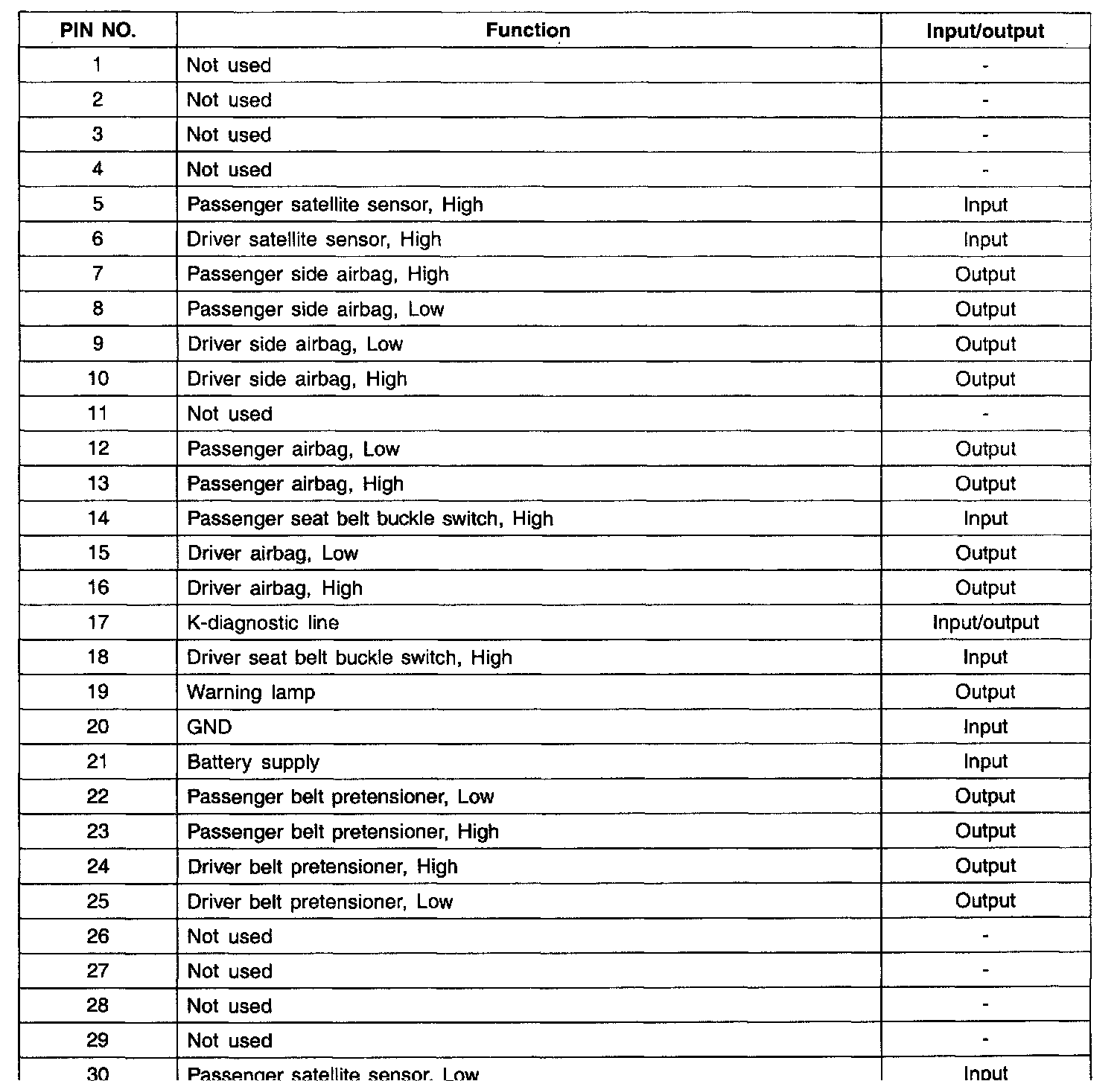

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 30:

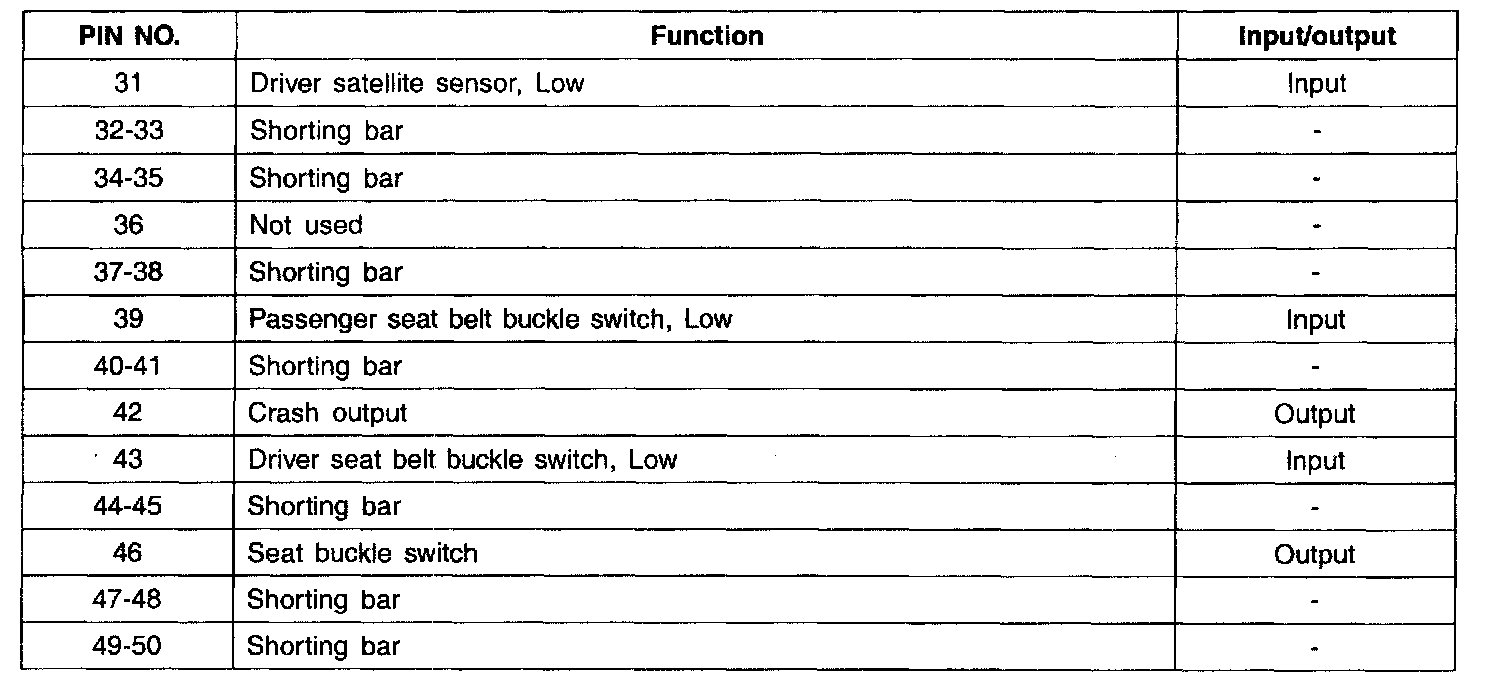

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 31 - 50:
