Hecu Block Diagram

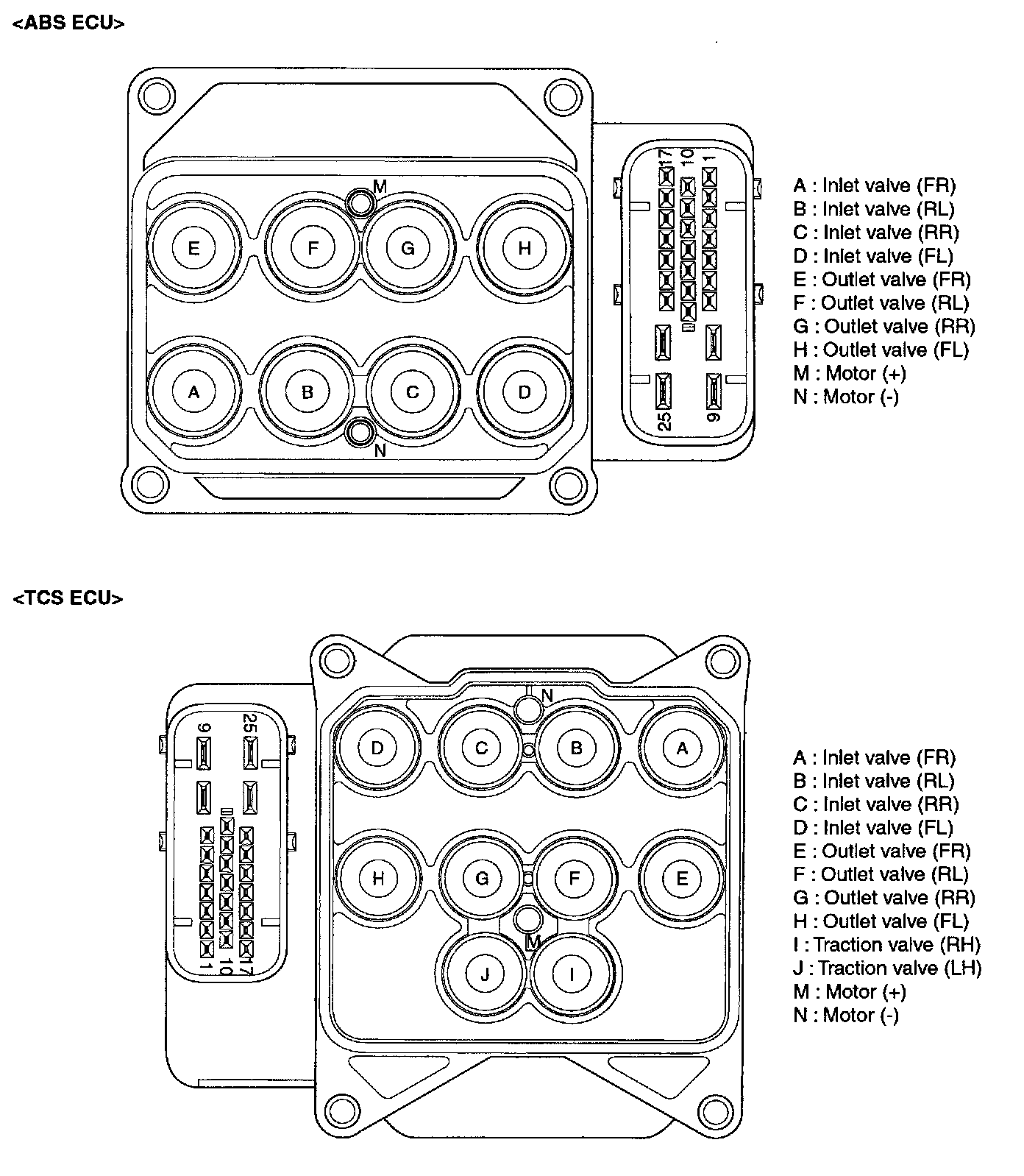

HECU

HECU BLOCK DIAGRAM

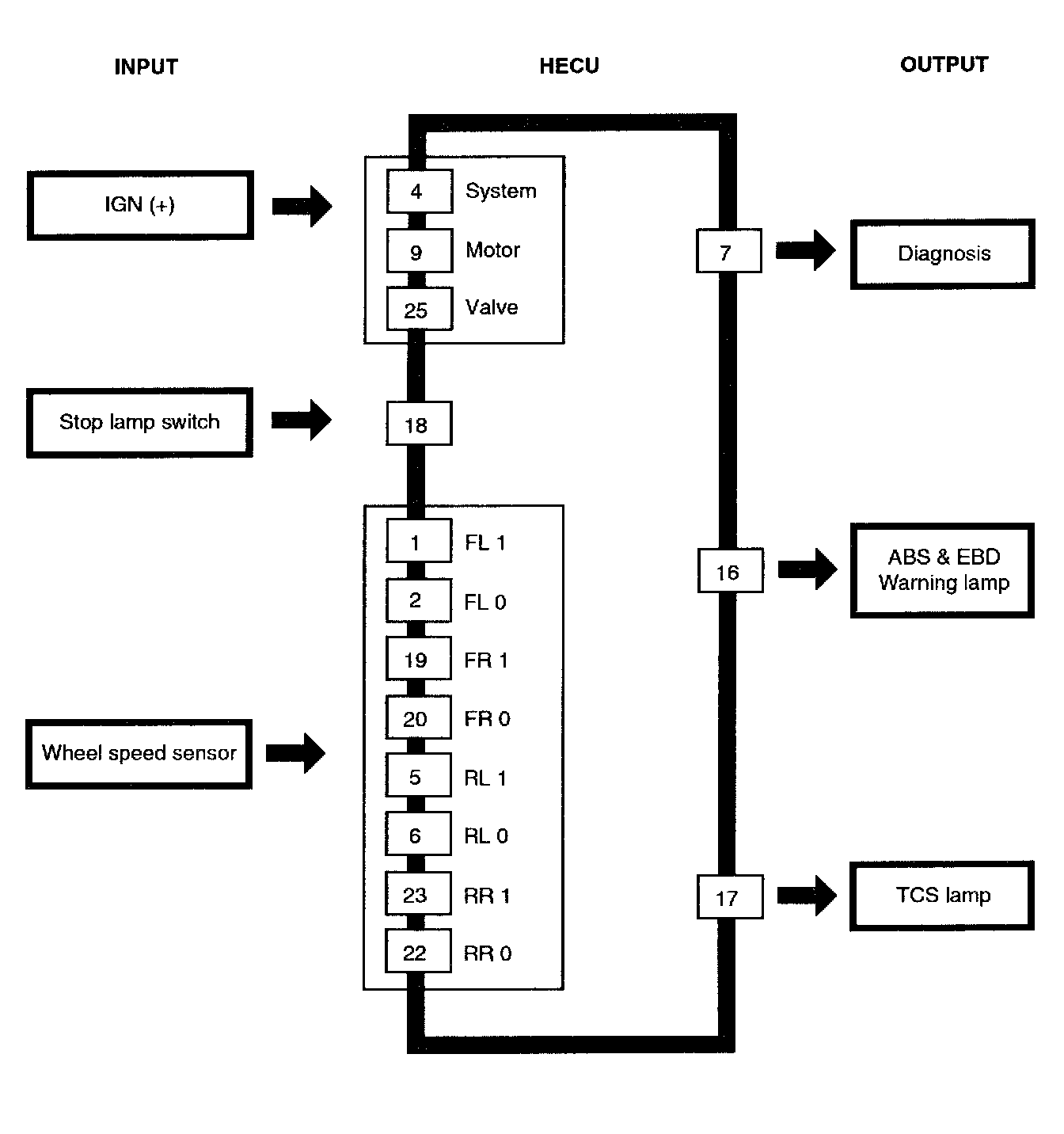

1. INPUT/OUTPUT DIAGRAM

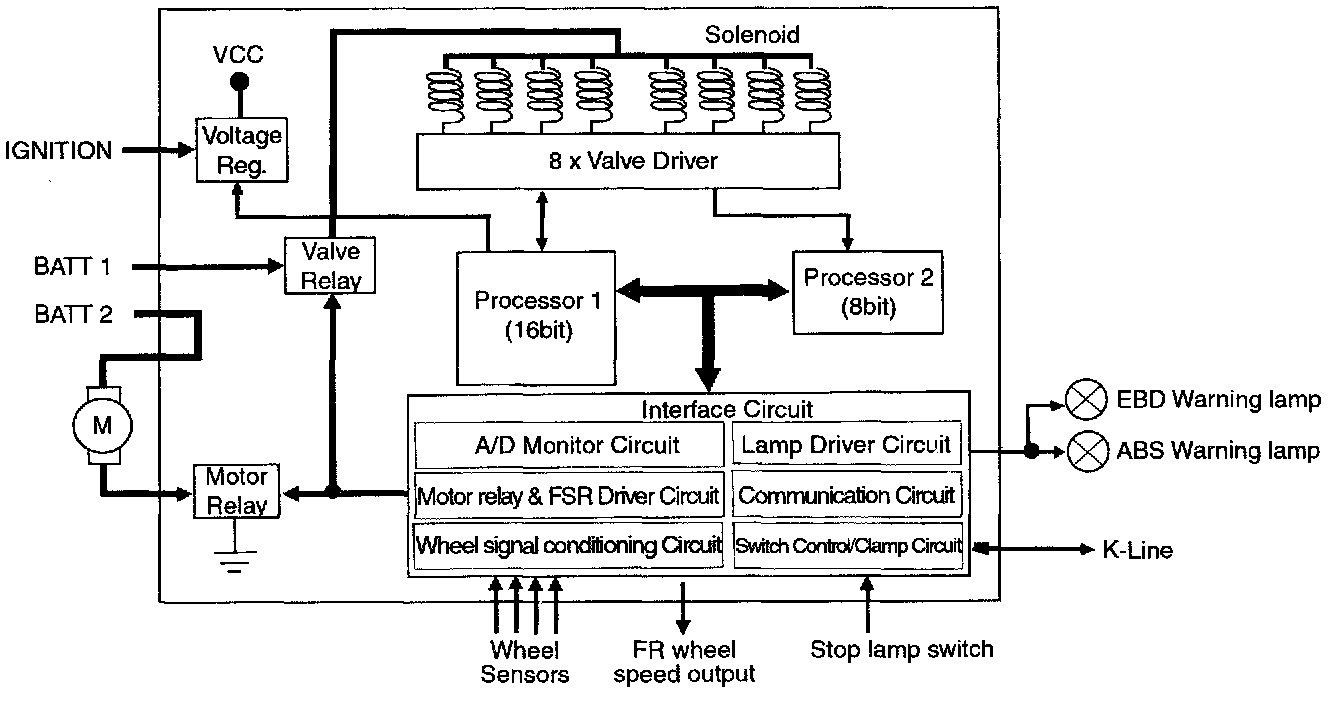

2. ABS ECU BLOCK DIAGRAM





3. TCS ECU BLOCK DIAGRAM
