Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Diagrams >> Electrical Diagrams >> External Wiring Diagram

External Wiring Diagram

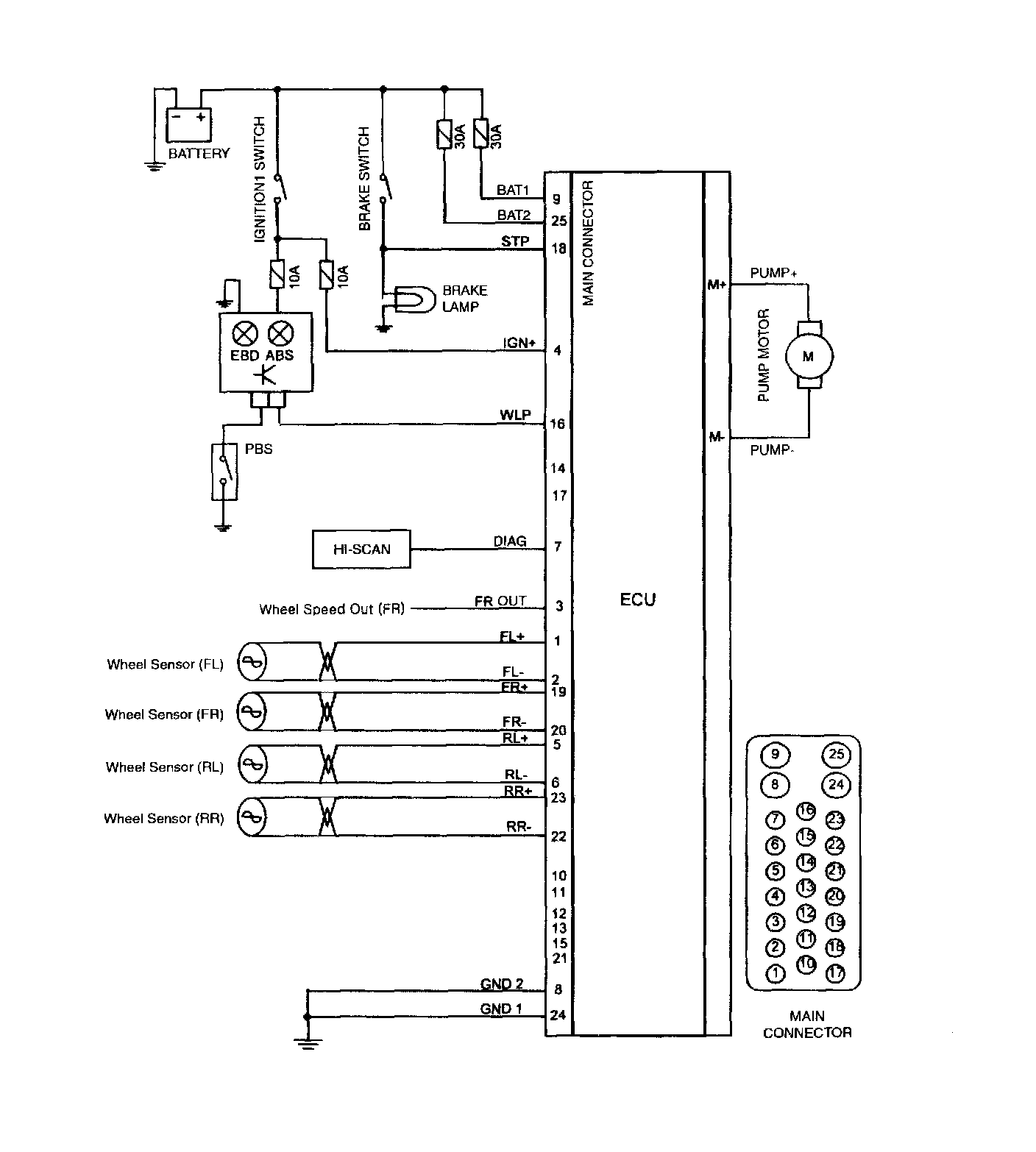

EXTERNAL WIRING DIAGRAM





(ABS)





(TCS)
