Symptom Related Diagnostic Procedures
TROUBLESHOOTINGBCM practices input/output actuation test with the hi-scan to find out input/output errors.

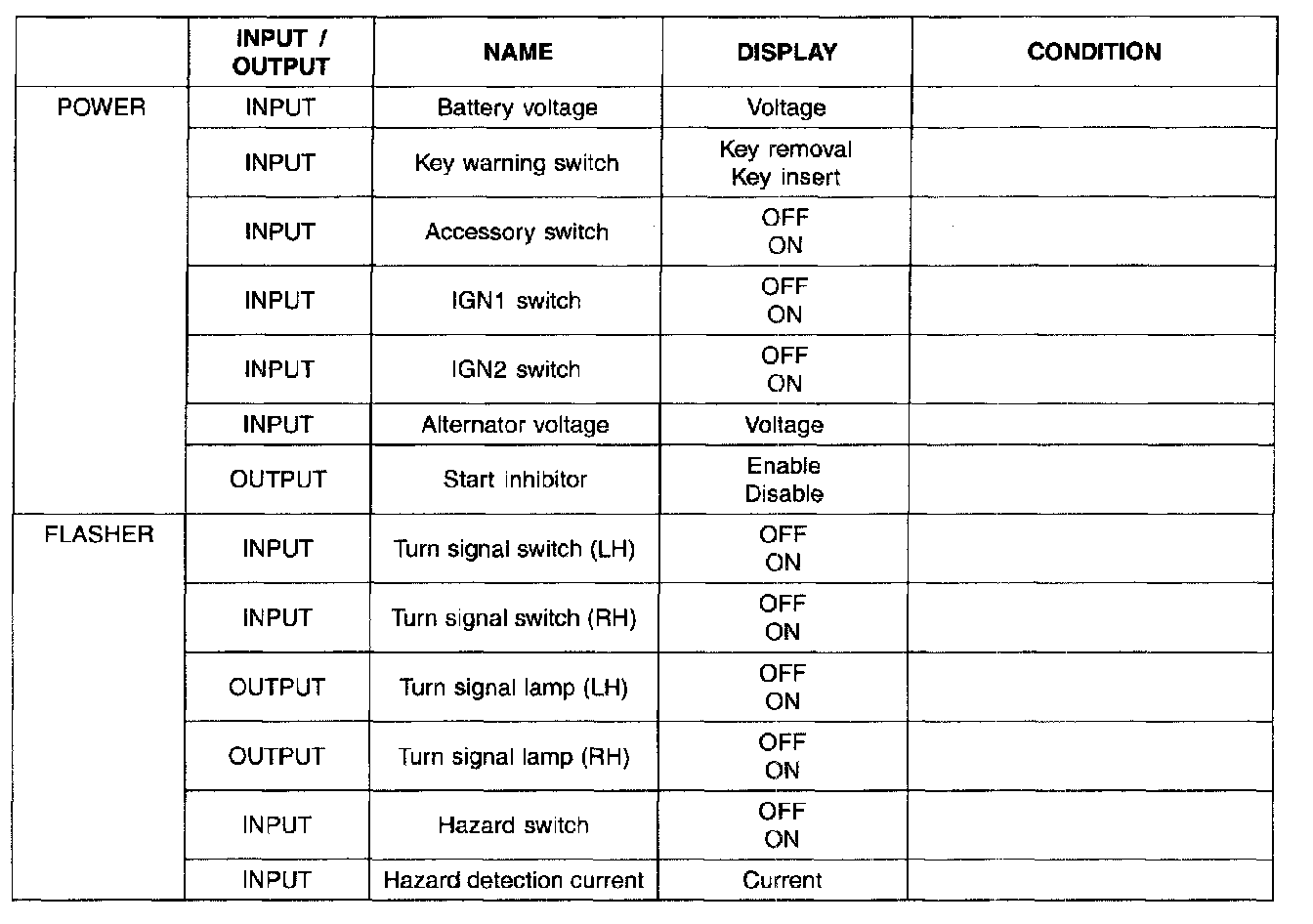

Input/output Monitoring Part 1:

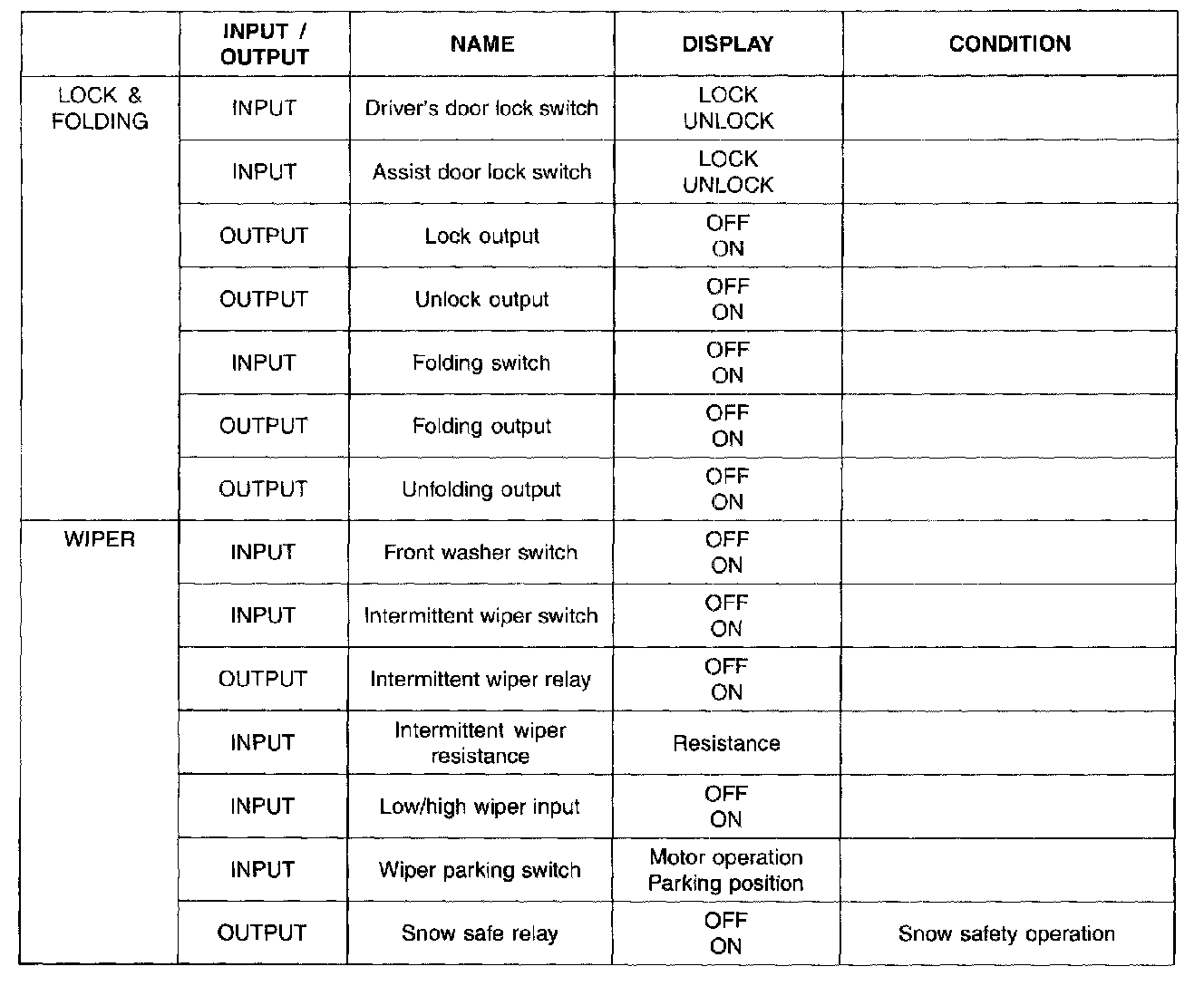

Input/output Monitoring Part 2:

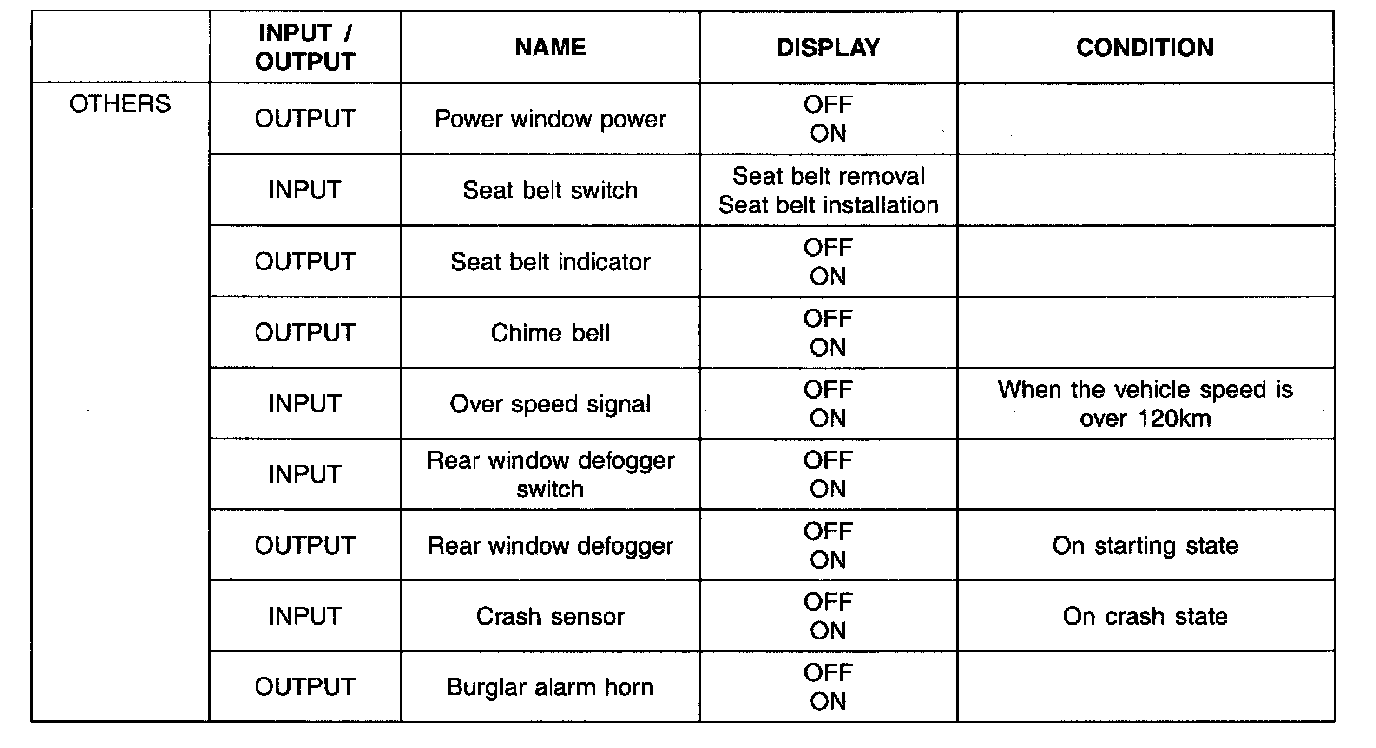

Input/output Monitoring Part 3:

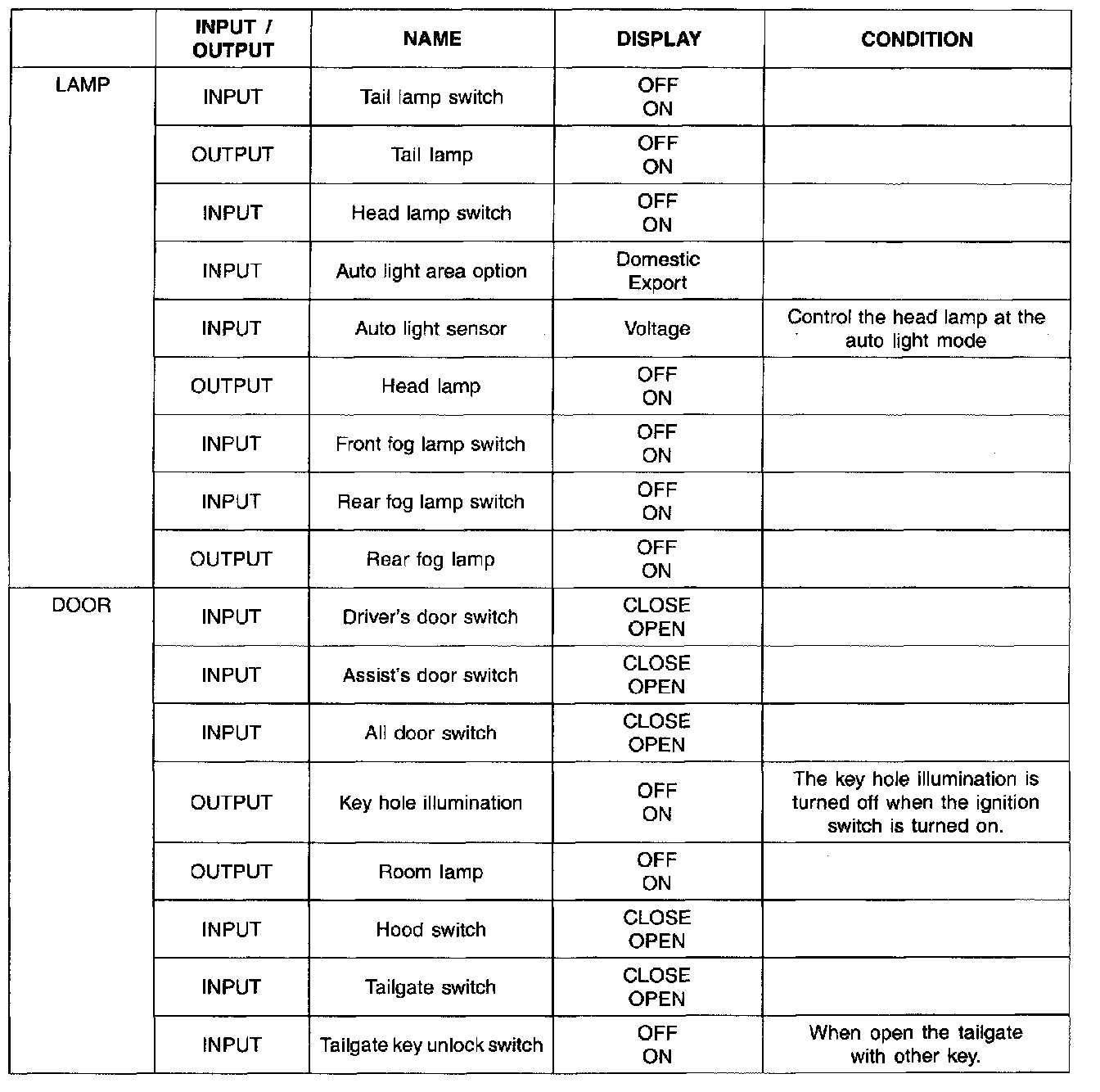

Input/output Monitoring Part 4:
INPUT/OUTPUT MONITORING
The components which is on and off as like turn signal lamp, seat belt indicator, burglar alarm horn, chime bell and front wiper relay are displayed "ON" while controlling.
MENU COMPOSITION

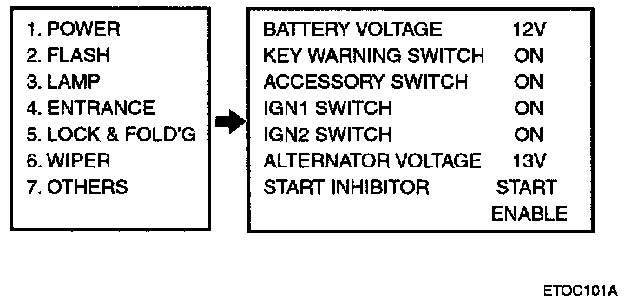

1. INPUT/OUTPUT MONITORING
2. INPUT ACTUATION TEST
3. OUTPUT ACTUATION TEST

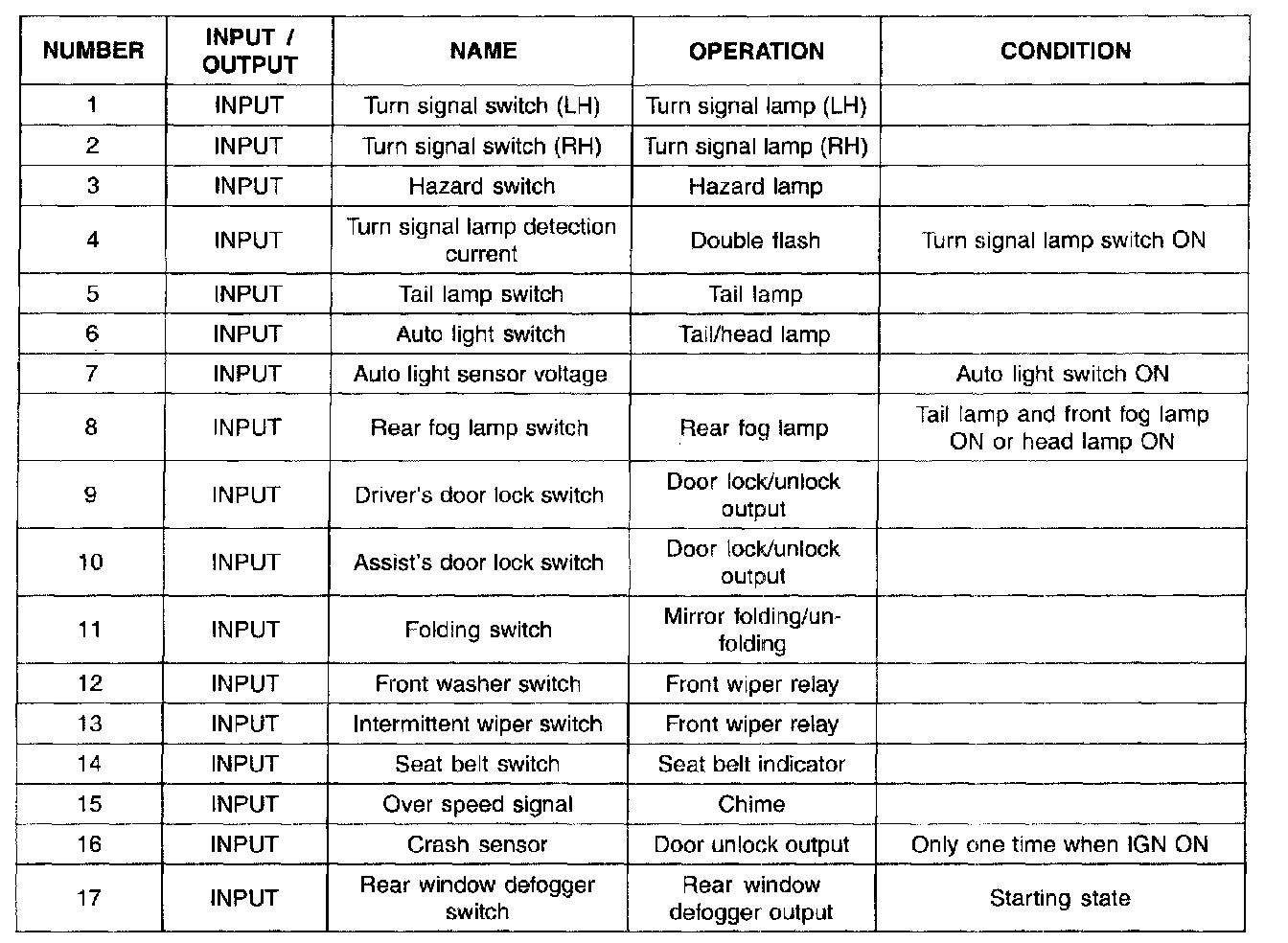

INPUT SIGNAL ACTUATION TEST
Input Signal Actuation Test:
Actuation test is turned off under the following conditions.
1. When the [STOP] switch is pressed.
2. When the [ESC] switch is pressed.
3. When the hi-scan is turned off.
4. When the hi-scan is disconnected.
5. When the actuation test is turned off by the hi-scan timer.

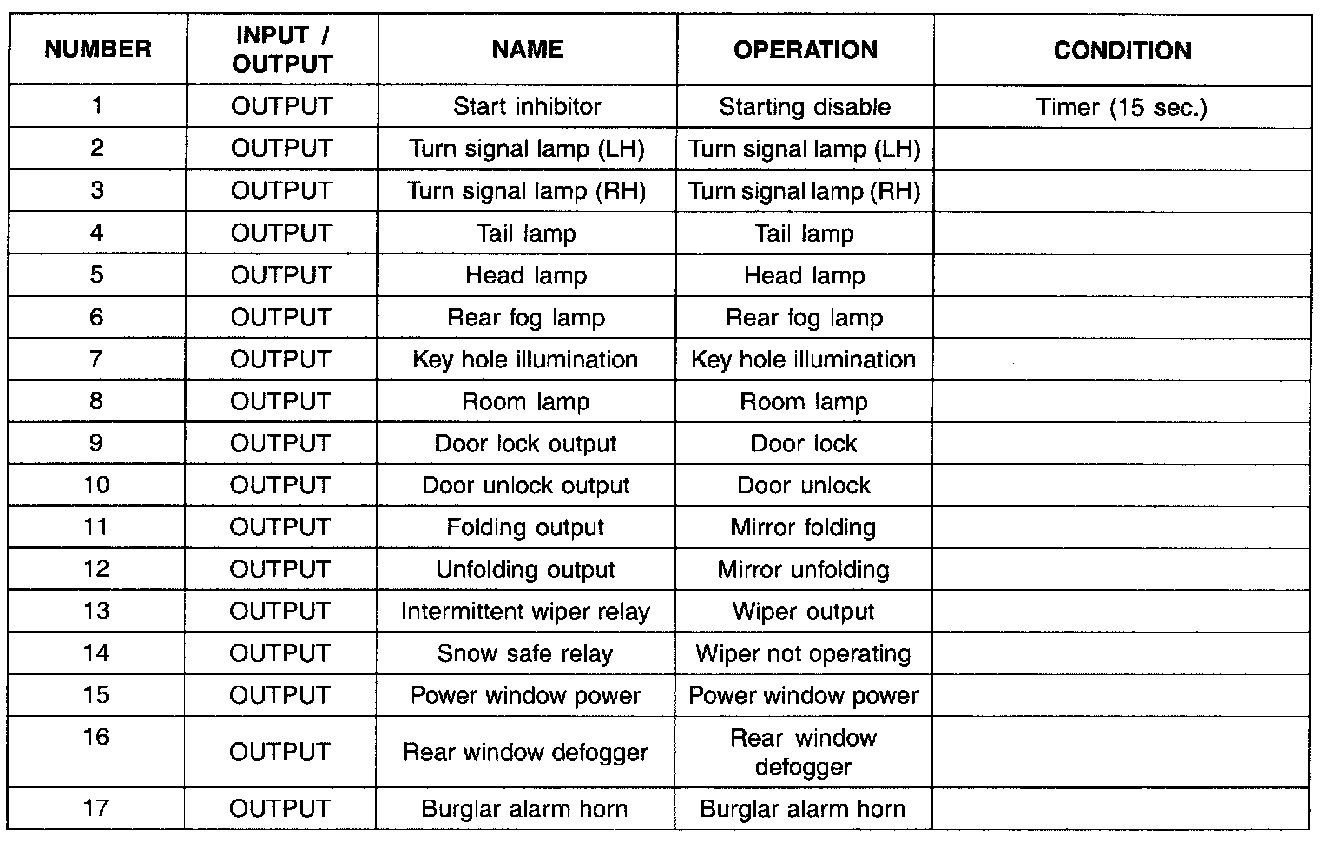

OUTPUT SIGNAL ACTUATION TEST
Output Signal Actuation Test:
Actuation test is turned off under the following conditions.
1. When the [STOP] switch is pressed.
2. When the [ESC] switch is pressed.
3. When the hi-scan is turned off.
4. When the hi-scan is disconnected.
5. When the actuation test is turned off by the hi-scan timer.
