Ambient Light Sensor: Testing and Inspection

INSPECTION




1. Detach the auto light sensor in the upper crash pad.

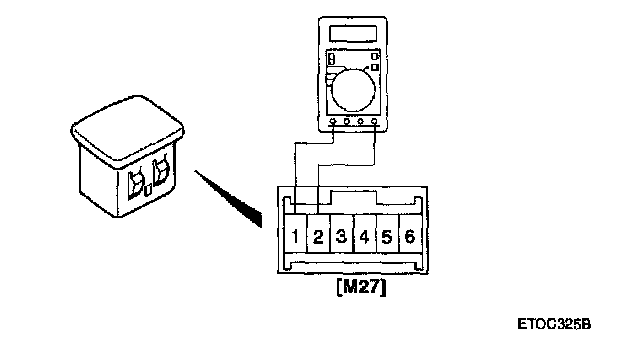

2. Check the continuity between terminal 2(+) and terminal 1 (-).




3. Check the continuity between the terminals while operating the switch.

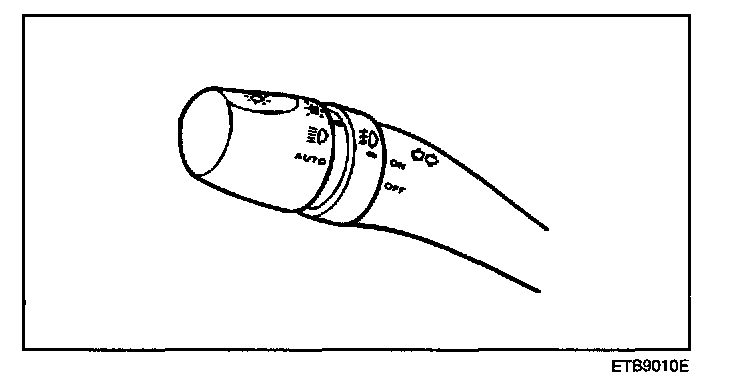

Lighting Switch [MO1-2]:

AUTO LIGHT SWITCH [M01-2]
