Fog/Driving Lamp: Testing and Inspection

FRONT FOG LAMP
1. Disconnect the negative battery terminal.

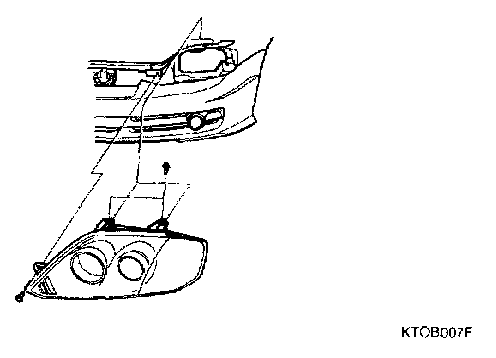

2. Remove the turn signal lamp and head lamp assembly.

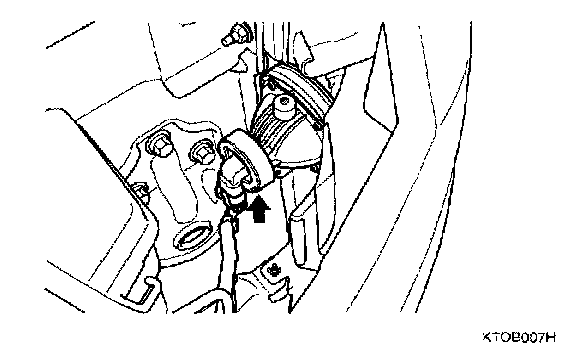

3. Remove the front bumper cover (Refer to BD group). Disconnect the wire connector and remove the front fog lamp.
4. Installation is the reverse of removal.
