Daytime Running Lamp: Testing and Inspection

OPERATION CHECK

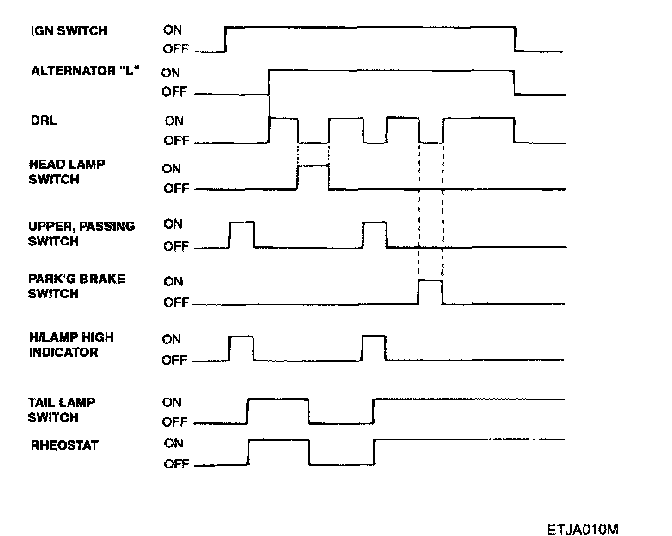

Check that the lights operate according to the above timing chart.

INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM

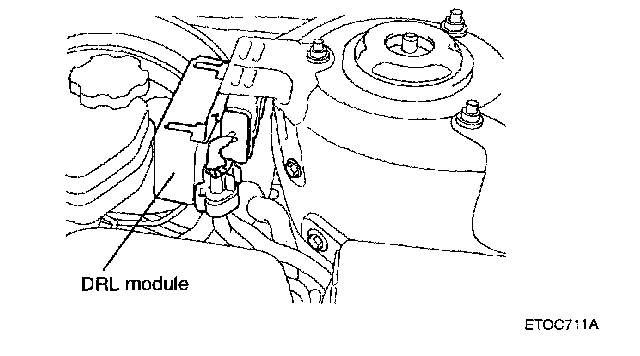

1. Disconnect the wire connector to DRL module from engine compartment.

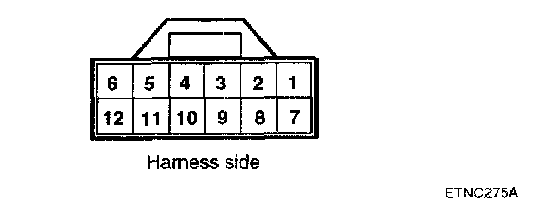

2. Inspect the connector on wire harness side as shown.

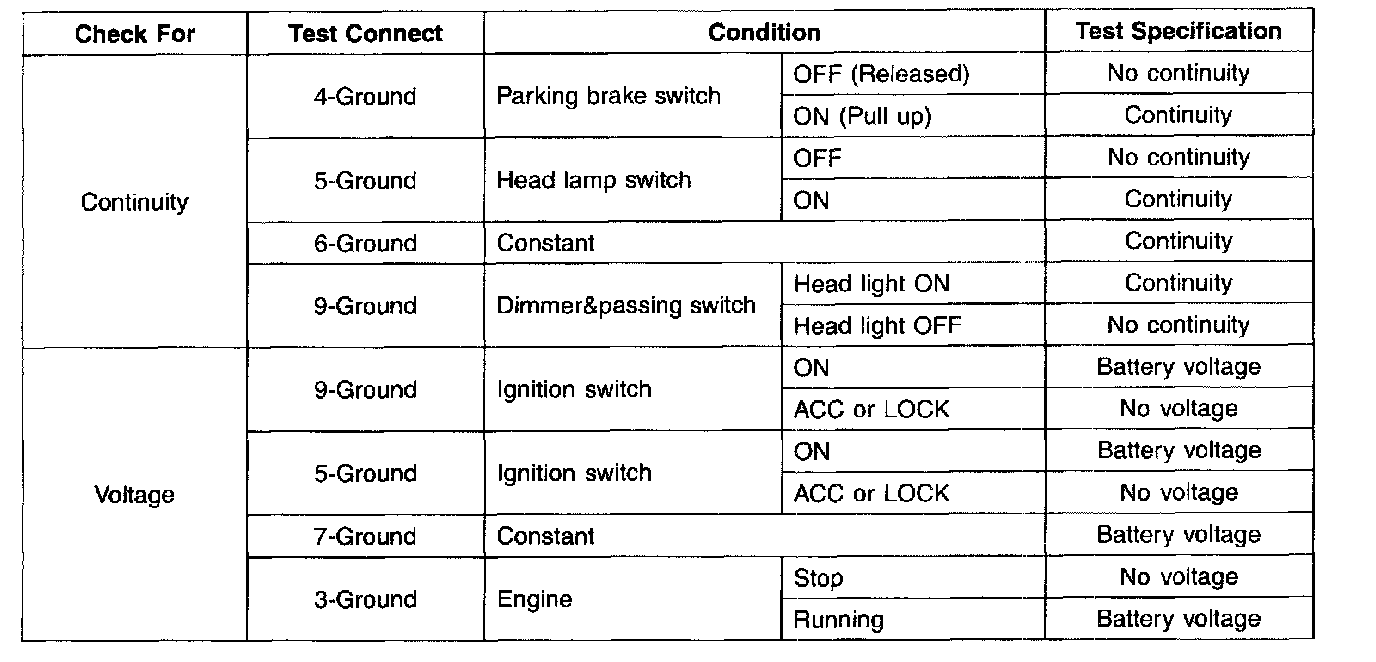

3. If circuit is not as specified, meter to schematic diagram and inspect for short circuits.
