Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Specifications >> Electrical Specifications

Electrical Specifications

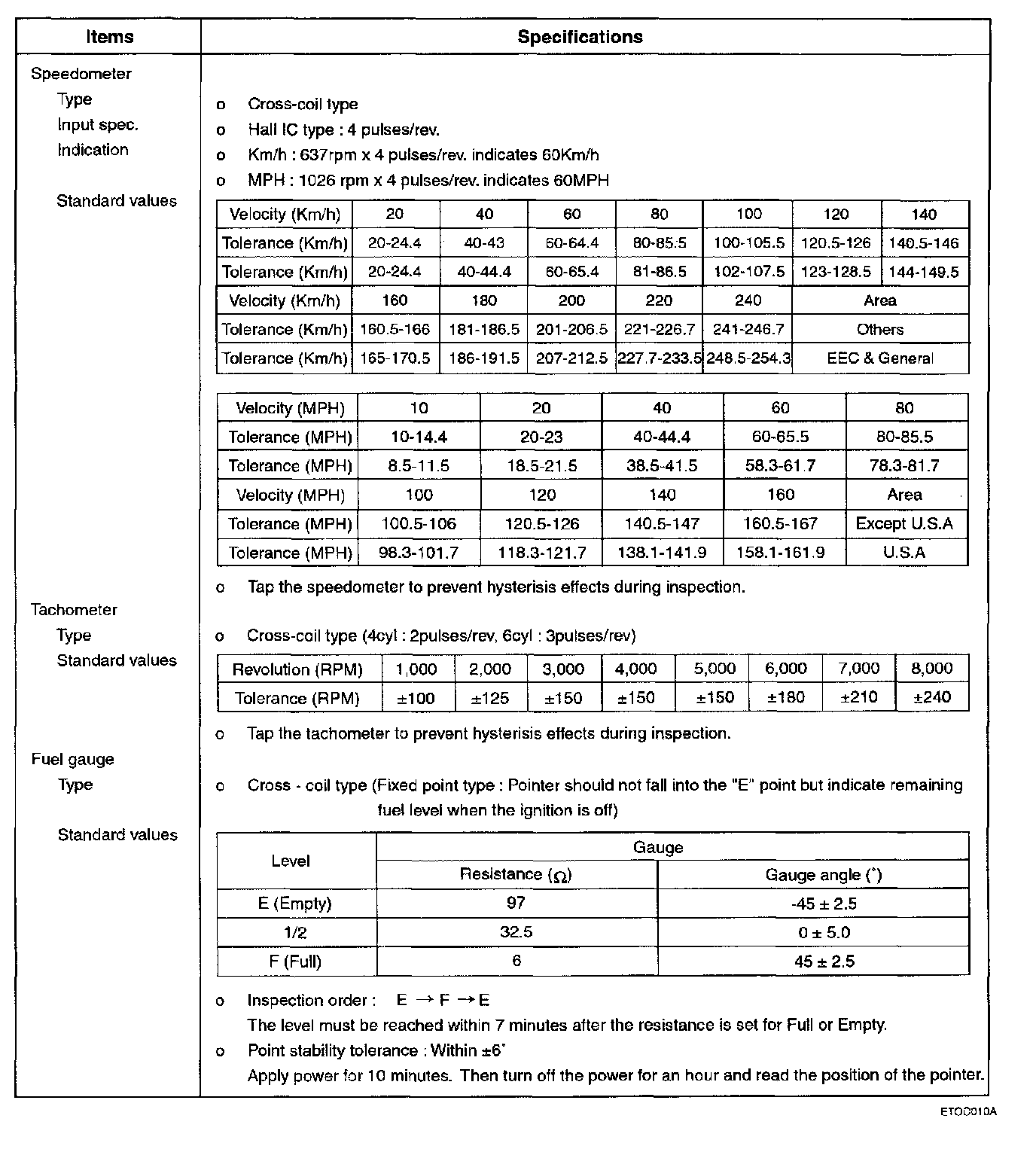

Indicators And Gauges Part 1:

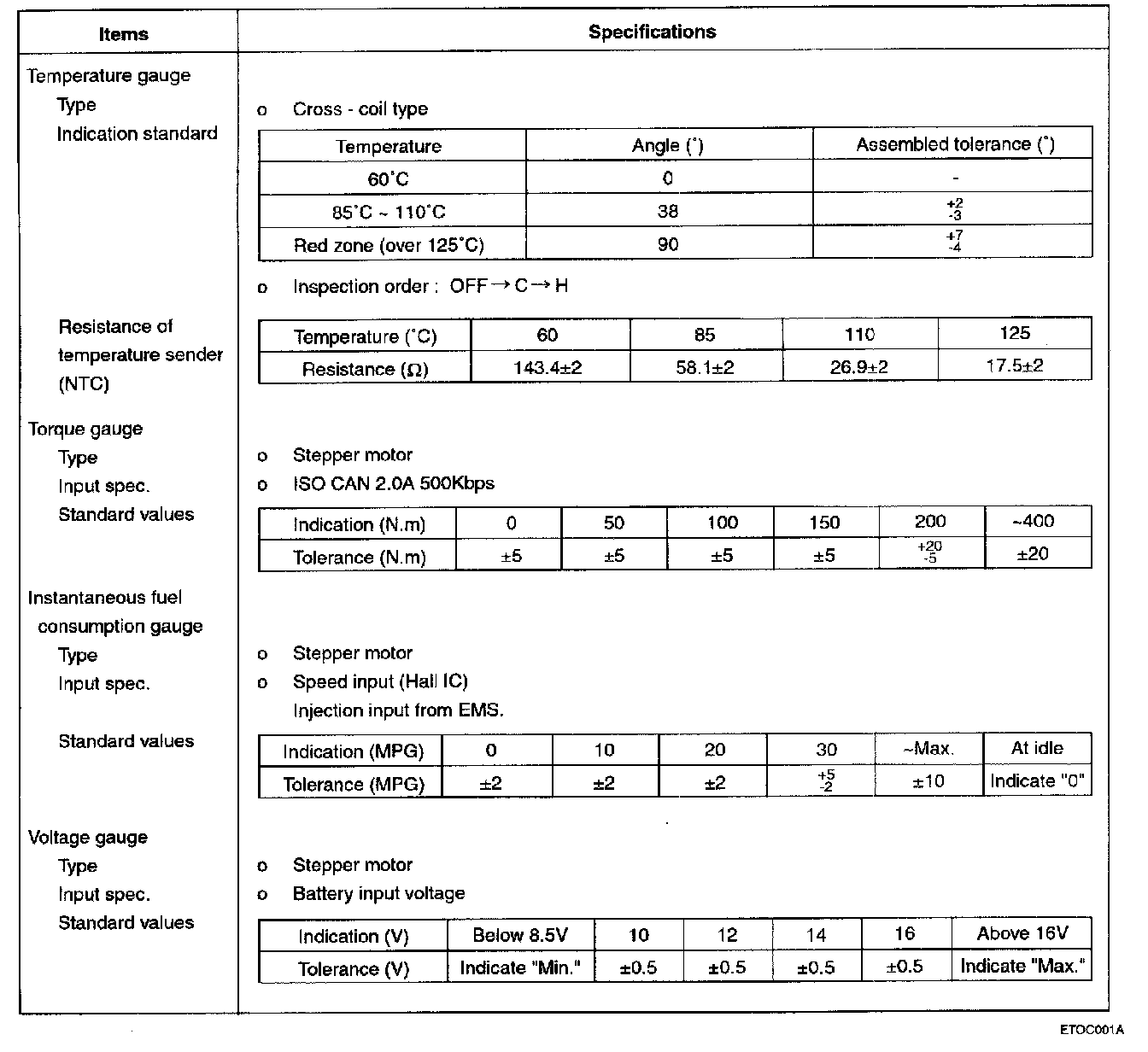

Indicators And Gauges Part 2:
